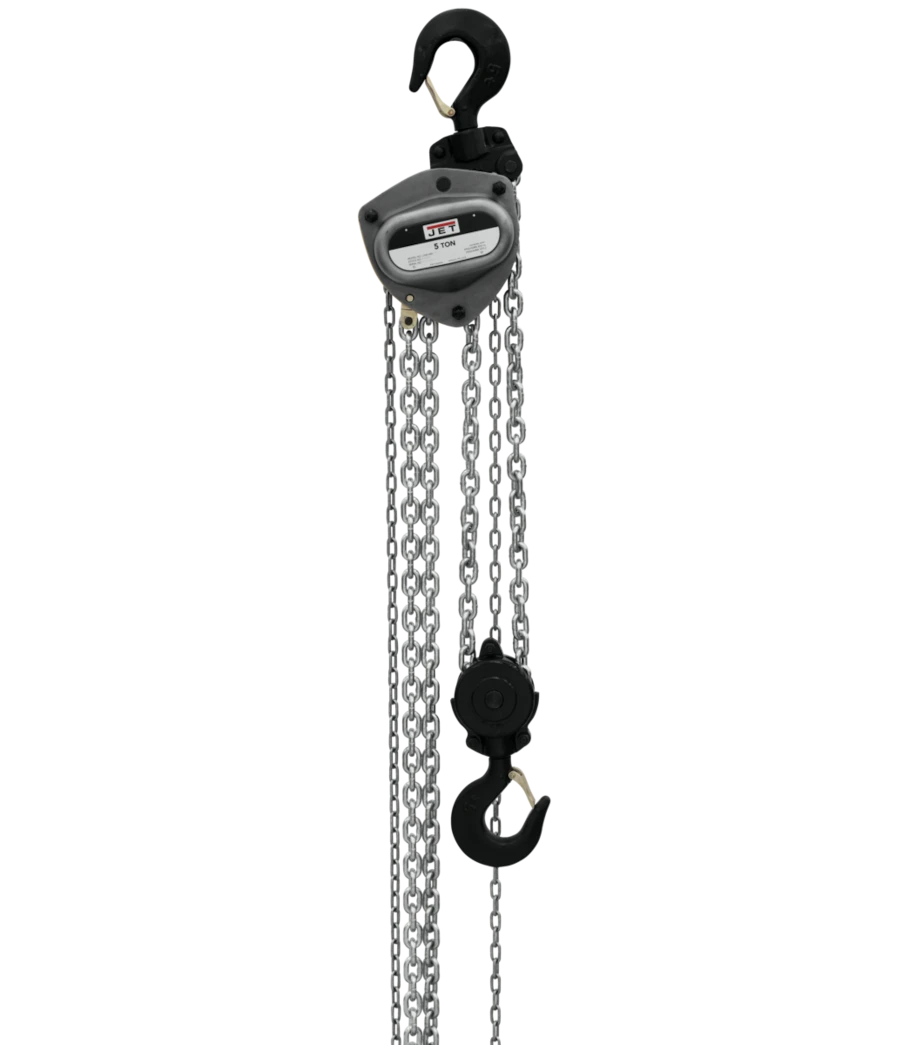

Jet L-100-500WO-15 5T Hoist w/ 15′ Lift & Overload Protection (208115)

Jet L-100-500WO-15 5T Hoist w/ 15' Lift & Overload Protection (208115)

Jet L-100-500WO-15 5T Hoist w/ 15' Lift & Overload Protection (208115) is a heavy-duty 5-ton hand chain hoist designed for the most demanding industrial environments. It combines innovative safety features with exceptional durability, ensuring reliable performance in even the harshest conditions.

KEY FEATURES AND BENEFITS:

Built to Last: Constructed with grade 100 load chain and heat-treated components, this hoist is built to withstand heavy use. The double-sealed ball bearings ensure smooth operation and extended service life.

Versatile Design: The lightweight and compact design make it ideal for confined spaces and low headroom applications. The 360-degree rotating hooks allow for easy rigging in various settings.

Load Capacity: 5 tons

Overload Protection: Yes

Headroom: 23-5/8 inches

Hand Chain Overhaul: 198 feet to lift load 1 foot

Hand Chain Pull Force: 75 lbf to move load

Load Chain Dimensions: 9 x 27 mm

Number of Falls: 2

Inspection: Before each use, thoroughly inspect the hoist for any signs of damage or wear. Ensure all components are in good working order.

Rigging: Securely attach the hoist to a suitable support structure using the hooks. Make sure the load is evenly distributed and properly balanced.

Lifting: Pull the hand chain in the direction indicated on the hoist to lift the load. Use a steady and controlled motion.

Lowering: Pull the hand chain in the opposite direction to lower the load. Control the descent speed to prevent sudden drops.

Storage: After use, clean the hoist and store it in a dry, secure location.

BENEFITS OF USING Jet L-100-500WO-15 5T Hoist w/ 15' Lift & Overload Protection (208115):

Increased safety and reduced risk of accidents due to advanced safety features

Enhanced productivity with efficient lifting and lowering operations

Long-term cost savings due to durability and reduced maintenance

Compliance with industry standards for safe and reliable operation

Slip clutch overload protection

Weston-style double ratchet pawl brake

Grade 100 load chain

Heat-treated load plates and internal parts

Double sealed ball bearings

All-steel construction

360-degree rotating hooks

Compact and lightweight design

Compliant with ANSI/ASME B30.16 and HST-2

Product identification

• Brand: Jet
• Model / MPN: 208115
