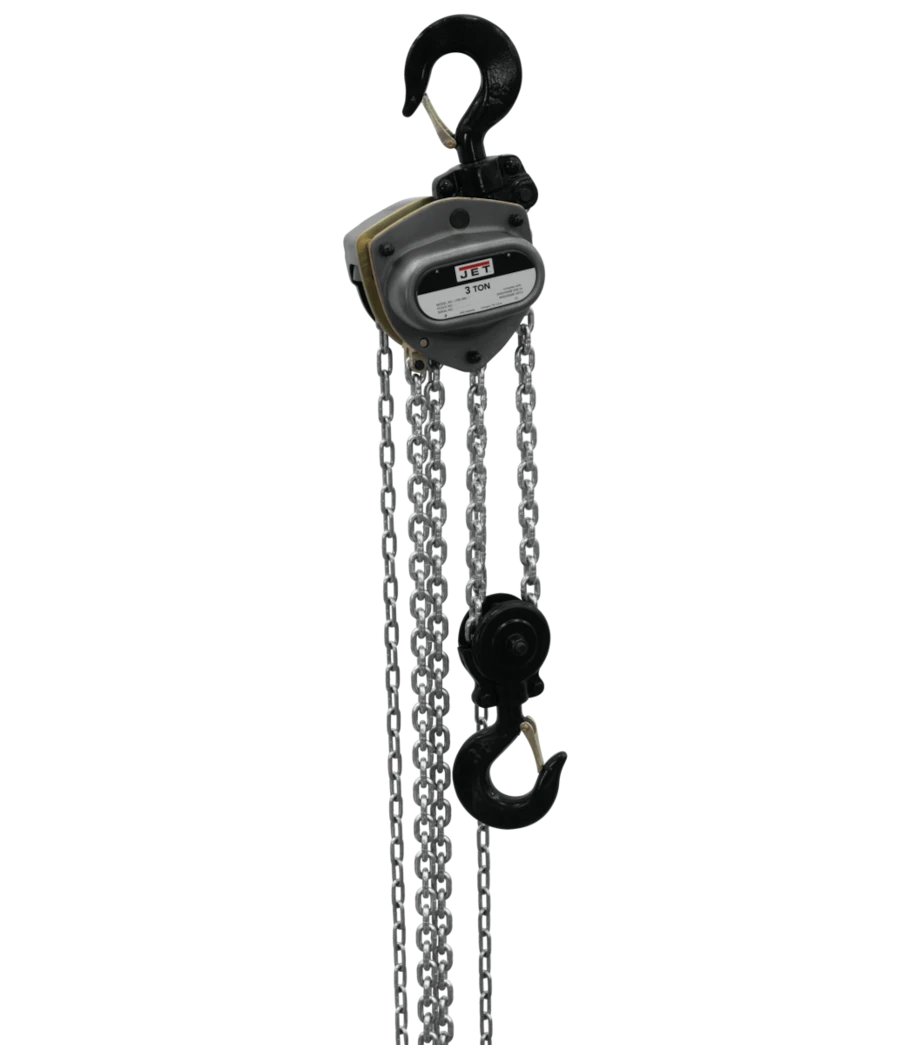

Jet L-100-300WO-30 3 Ton Hoist & 30' Lift Overload Protection (207130)
KEY FEATURES AND BENEFITS:
Overload Protection: Prevents lifting damaging loads beyond the hoist's capacity, protecting equipment and operators.
Weston Style Dual Pawl Brake: Offers exceptional load security by splitting the load to opposite sides of the ratchet gear.
Durable Construction: Made with grade 100 load chain, cast steel safety latches, and heat-treated components for long-lasting performance.
Smooth Operation: Double sealed ball bearings ensure efficient and smooth lifting.
Compact and Lightweight: Ideal for confined spaces and low headroom applications.
Load Capacity: 3 tons
Overload Protection: Yes
Headroom: 20-1/8 inches
Hand Chain Overhaul: 114 feet to lift load 1 foot
Hand Chain Pull Force: 79 lbf
Load Chain Dimensions: 7.1 x 21 mm
Number of Falls: 2
Inspection: Before each use, inspect the hoist for damage or wear.
Rigging: Attach the hoist to a secure overhead support with appropriate rigging hardware.
Lifting: Use the hand chain to raise or lower the load with slow, steady motion.
Overload Protection: If overloaded, the slip clutch engages to prevent further lifting.
Storage: After use, clean and lubricate as needed and store in a dry location.
BENEFITS OF USING THE Jet L-100-300WO-30 3 Ton Hoist & 30' Lift Overload Protection (207130):
Enhanced Safety: Multiple safety features protect operators and equipment.
Reduced Downtime: Durable construction and fused brake system minimize maintenance needs.
Increased Productivity: Smooth operation and efficient lifting capabilities improve workflow.
Versatility: Suitable for a wide range of industrial applications.
All-steel construction
Grade 100, corrosive-resistant load chain
Double sealed ball bearings
Heat-treated load plates and case-hardened internal parts
Complies with ANSI/ASME B30.16 and HST-2 Standards
Product identification
- Brand: Jet
- Model / MPN: 207130
