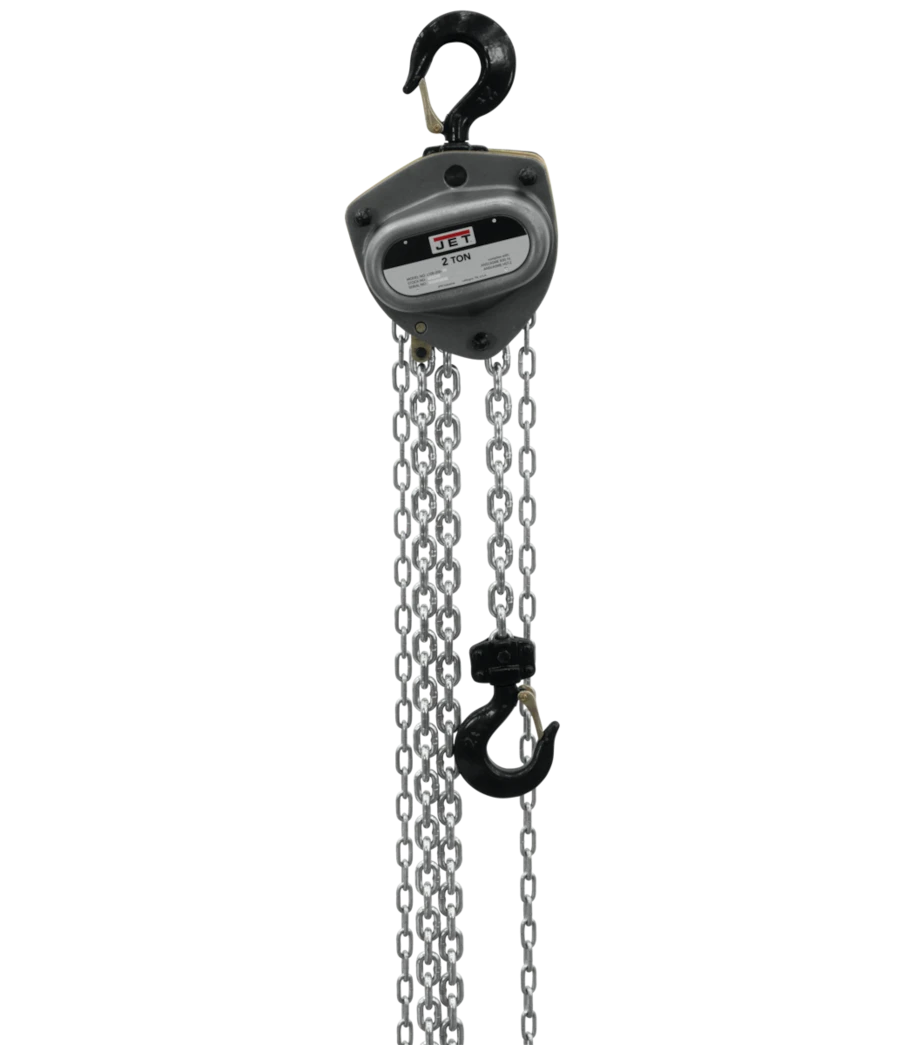

Jet L-100-200WO-15 2-Ton Hoist w/15' Lift Overload Protection (206115)
Jet L-100-200WO-15 2-Ton Hoist w/15' Lift Overload Protection (206115) is a heavy-duty lifting tool designed for industrial applications. Built with safety and durability in mind, this hoist features a patented fused brake system, overload protection, and a robust construction. Ideal for lifting and lowering heavy loads up to 2 tons with a maximum lift height of 15 feet.
KEY FEATURES AND BENEFITS:
Patented Fused Brake System: Ensures reliable and safe operation by combining three critical components into a single unit.
Overload Protection: Prevents damage to the hoist and potential accidents by preventing lifting of excessive loads.
Weston Style Dual Pawl Brake System: Provides added safety and security with a double ratchet pawl design.
Grade 100 Load Chain: Offers superior strength and durability compared to grade 80 chains.
Sealed Ball Bearings: Reduces friction and ensures smooth operation.
Cast Steel Safety Latches: Provide robust and secure attachment points.
Heat Treated Load Plates: Enhance durability and resistance to wear and tear.
Load Capacity: 2 tons
Lift Height: 15 feet
Overload Protection: Yes
Hand Chain Overhaul: 70 feet to lift load 1 foot
Hand Chain Pull Force: 79 lbf
Headroom: 14-3/4 inches
Number of Falls: 1
Load Chain Dimensions: 8 x 24 mm
Width: 11.43 inches
Height: 8.98 inches
Length: 15.10 inches
Inspect the Hoist: Before each use, check for any signs of damage or wear. Ensure the brake is functioning properly and the load chain is free of kinks or damage.
Attach the Load: Securely hook the load chain to the load and the hoist hook to a suitable overhead anchor point.
Operate the Hand Chain: Pull the hand chain to lift the load and lower it by releasing the chain.
Monitor the Load: Continuously observe the load during lifting and lowering operations.
Lower the Load: Gently lower the load by releasing the hand chain.
Release the Load: Carefully detach the load chain from the load and the hoist hook from the anchor point.
BENEFITS OF USING Jet L-100-200WO-15 2-Ton Hoist w/15' Lift Overload Protection (206115):
Enhanced safety: The patented brake system, overload protection, and other safety features minimize risks.
Increased efficiency: Smooth operation and durable construction contribute to efficient lifting tasks.
Cost-effective: The hoist's reliability and long lifespan reduce maintenance costs.
Versatility: Suitable for a wide range of industrial applications.
Patented fused brake system
Overload protection
Weston style dual pawl brake system
Grade 100 load chain
Sealed ball bearings
Cast steel safety latches
Heat treated load plates
Impact resistant all steel construction
Lightweight design
Meets ASME B30.7 and OSHA standards
Product identification
- Brand: Jet
- Model / MPN: 206115
