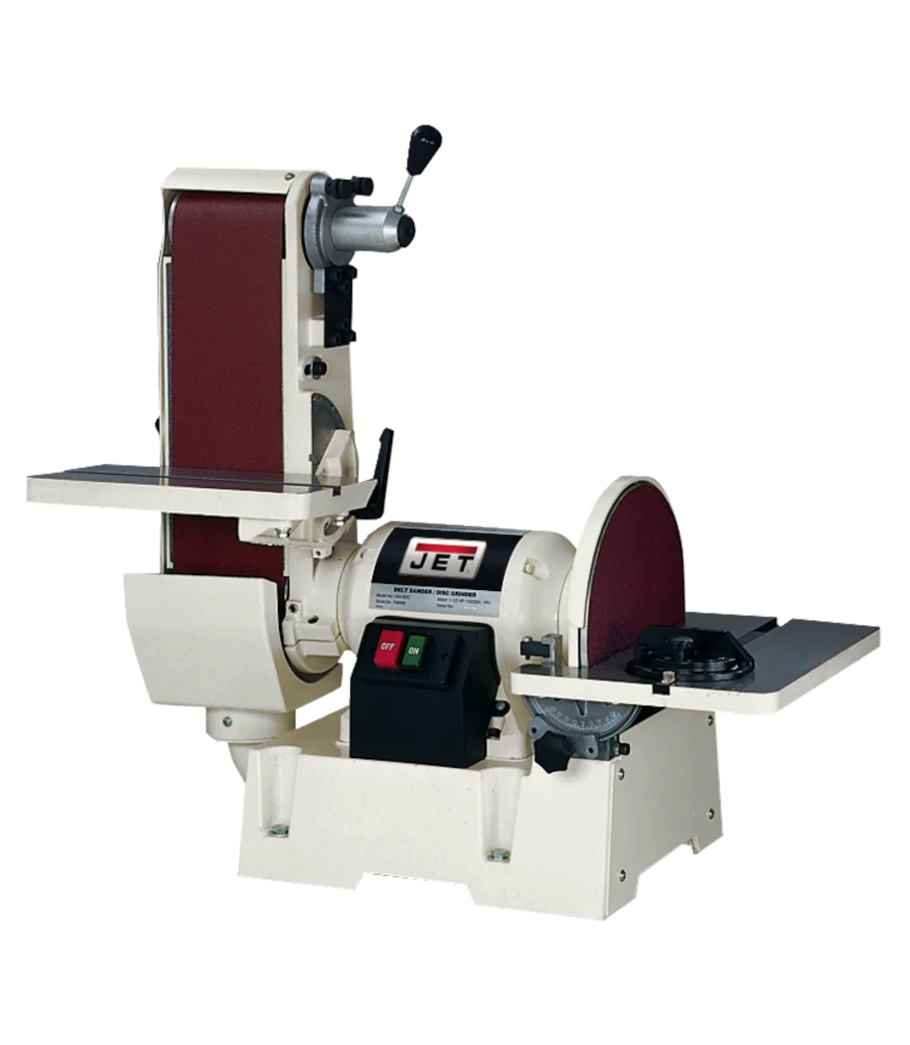

Jet JSG-6DC 1.5HP 1PH 115/230V 6×48" Belt / 12" Disc Sander (708599)
Jet JSG-6DC 1.5HP 1PH 115/230V 6×48" Belt / 12" Disc Sander (708599) is a heavy-duty belt and disc sander designed for demanding woodworking applications. It combines a powerful 1.5 HP motor with a versatile design to handle various sanding tasks.
KEY FEATURES AND BENEFITS:
Industrial Power: 1.5 HP motor tackles tough sanding jobs.
Versatile Sanding: Features a 12" disc sander and a 6" x 48" belt sander for different sanding needs.
Adjustable Tables: Two cast-iron tables with tilts for sanding at various angles, including vertical and horizontal use for the belt sander.
Easy Adjustments: Dual thumbscrew belt tracking, quick-release belt tension lever, and quick-lock dust cover for efficient operation.
Efficient Dust Collection: Single 4" dust port effectively removes dust from both the belt and disc.
Durable Construction: Built with cast-iron tables and a steel base for long-lasting performance.
Portable Design: Built-in handles for easy movement around the workshop.
Motor: 1.5 HP, 1-Phase
Voltage: 115/230V (pre-wired for 115V)
Belt Size: 48" x 6"
Disc Diameter: 12"
Belt Speed: 2500 SFPM
Disc Speed: 1725 RPM
Belt Table Tilt: 20° up, 45° down
Disc Table Tilt: 25° up, 45° down
Dust Port Diameter: 4"
Dimensions (L x W x H): 28.9" x (width not specified) x 20"
Assembly: Follow the manufacturer's instructions for assembly, including attaching the tables, dust port, and any other components.
Power and Dust Collection: Connect the sander to a properly grounded outlet with the appropriate voltage (115V or 230V). Attach a dust collection hose to the 4" dust port for efficient dust removal.
Adjusting the Tables: Loosen the knobs on the tables and tilt them to the desired angle (flat, 45°, or any angle in between for the belt sander). Tighten the knobs to secure the tables.
Belt Selection and Tracking: Choose the appropriate sanding belt grit based on your project. Install the belt according to the instructions, ensuring proper tracking with the dual thumbscrew adjustment.
Disc Selection and Installation: Select the desired sanding disc grit and attach it to the disc table following the manufacturer's instructions.
Power On and Sanding: Turn on the sander and ensure it's running smoothly. Feed your workpiece slowly and evenly against the sanding belt or disc, applying moderate pressure.
BENEFITS OF USING Jet JSG-6DC 1.5HP 1PH 115/230V 6×48" Belt / 12" Disc Sander (708599):
Increased Efficiency: Handles both belt and disc sanding tasks with a single machine, saving time and effort.
Superior Performance: Powerful 1.5 HP motor tackles demanding sanding jobs effectively.
Versatility: Ideal for various sanding applications, from flattening surfaces to shaping edges.
Precision Control: Adjustable tables allow for sanding at different angles for detailed work.
Easy Maintenance: Quick-release features for belt tension and dust cover enable effortless maintenance.
Clean Operation: Efficient dust collection system helps maintain a clean work environment.
Two cast-iron tables with positive stops at 90° and 45°
Exclusive dual thumbscrew belt tracking adjustment
Graphite-covered steel platen for cooler operation
Specially designed belt guard for full belt utilization
Rubber-coated drive drum for improved belt grip
Quick-release belt tension lever for fast belt changes
Quick-lock dust cover for the disc
Single 4" dust port
Powerful 1-1/2 HP motor
Built-in handles for portability
Product identification
- Brand: Jet
- Model / MPN: 708599
