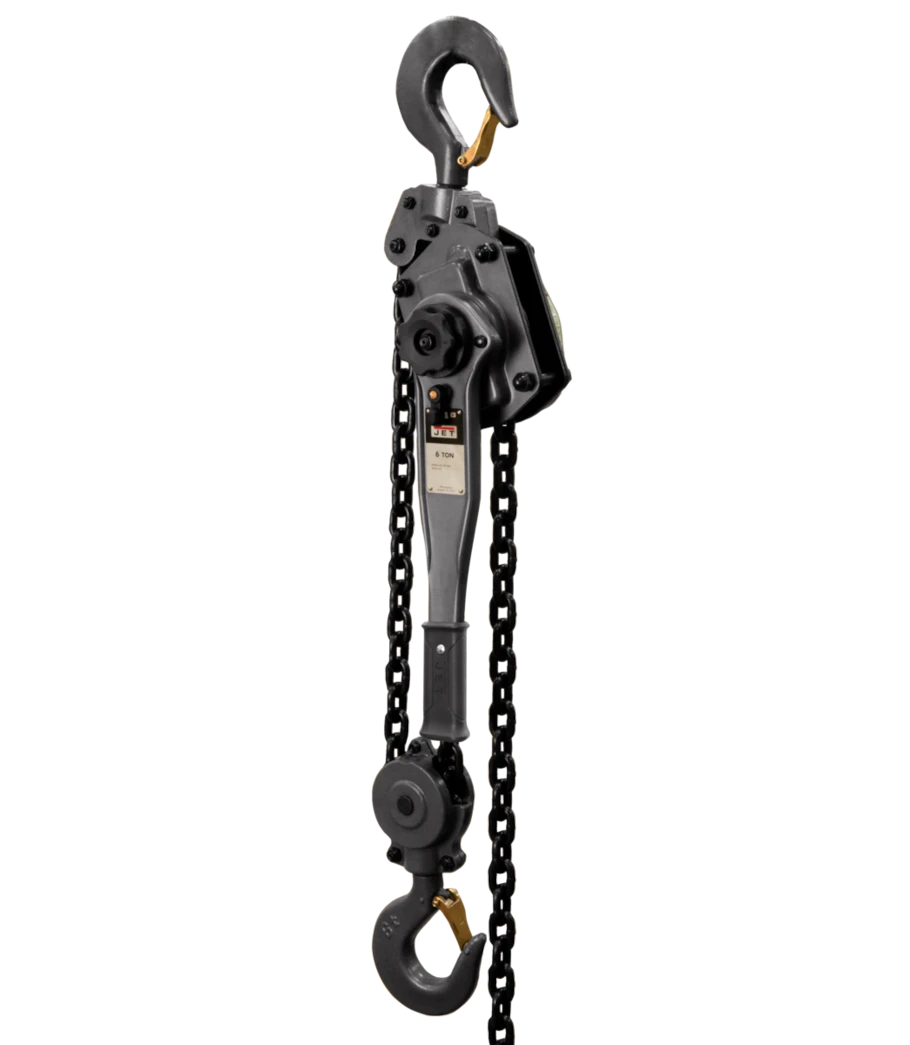

JET JLP-600A-5 287600 6 Ton Lever Hoist, 5 ft Lift
The JET JLP-600A-5 287600 is a 6 ton lever hoist in a 5 ft lift configuration. Its two-fall load-chain arrangement and listed headroom deserve attention when comparing it with a smaller single-fall hoist for a confined rigging space.
Specifications and included details
- JLP-600A-5, part 287600: 6 ton capacity and 5 ft lift.
- Two load-chain falls; listed chain dimensions are 10 x 30 mm.
- Listed headroom is 24-2/5 inches and handle length is 16-1/7 inches.
- Hook throat opening is listed as 3 inches.
- Grade 80 black-oxide-coated load chain, brake wear indicator and Weston-style double-ratchet-pawl brake.
Before ordering
Check the manufacturer's rating and units, hook seating, installed headroom and clearance for the lever stroke. Match the complete rigging and support to the load. Follow the model manual for operating and inspection procedures; do not use general release-the-lever text as lowering instructions.
Product questions and answers
Do two chain falls make this a 12 ton hoist?
No. Two falls describe the load-chain arrangement. The complete hoist is identified as 6 ton capacity; do not multiply that rating by the number of falls.
Is 5 ft enough space to install this hoist?
Five feet describes the lift configuration, not the full installed-space requirement. The listed headroom is 24-2/5 inches; also allow for the support, rigging and lever movement.
Does a 3 inch hook opening guarantee my attachment fits?
No. Throat opening is one dimension. Verify the attachment shape, proper hook seating and the manufacturer's permitted rigging arrangement.
