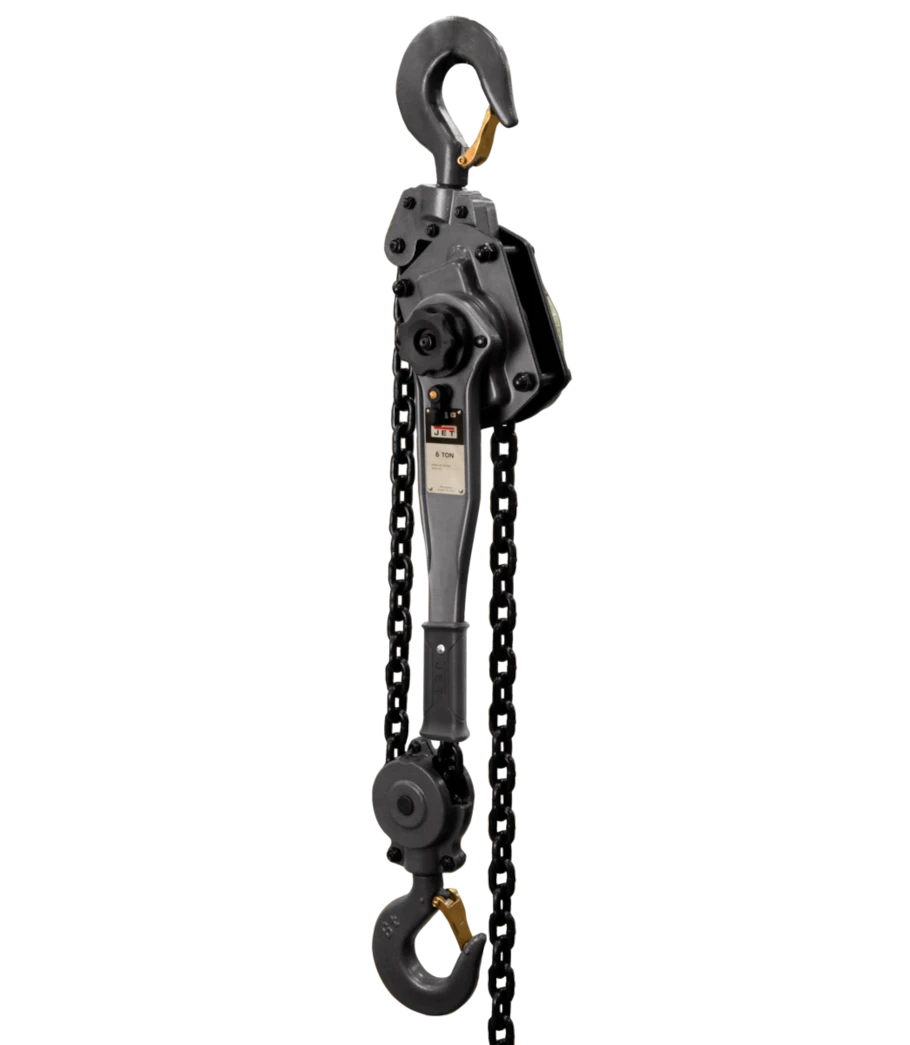

JET 287603 JLP-600A-20 Six Ton Lever Hoist
JET 287603 is the twenty-foot lift variant of the six-ton JLP-A lever hoist. The longer travel distinguishes it from the fifteen-foot model, while the specified 24-2/5-inch headroom remains a separate installation constraint.
Specifications and included details
- JLP-600A-20 model, named six-ton capacity and 20-foot lift.
- 24-2/5-inch listed headroom and 3-inch hook throat opening.
- Grade80 black oxide load chain and all-steel construction.
- Weston-style double-pawl brake and listed brake wear indicator.
Before ordering
Verify current rating and units, supplied twenty-foot chain configuration, hook geometry and lever clearance. No fall count is itemized in this record; do not import the neighboring model's chain arrangement. Follow the manufacturer wear and operating requirements, including permitted loading directions.
Product questions and answers
Does twenty-foot travel raise capacity over the fifteen-foot model?
No. This model remains identified as six-ton capacity. Lift length and capacity are independent specifications.
Can I assume its number of chain falls from the JLP-600A-15?
A fall count is not supplied here. Verify the model-specific arrangement rather than copying a neighboring record.
Does the wear indicator approve continued use of worn parts?
No. Follow the manufacturer's inspection criteria and replacement limits; the indicator is not an exception to them.
