3/4 ton lever hoist details

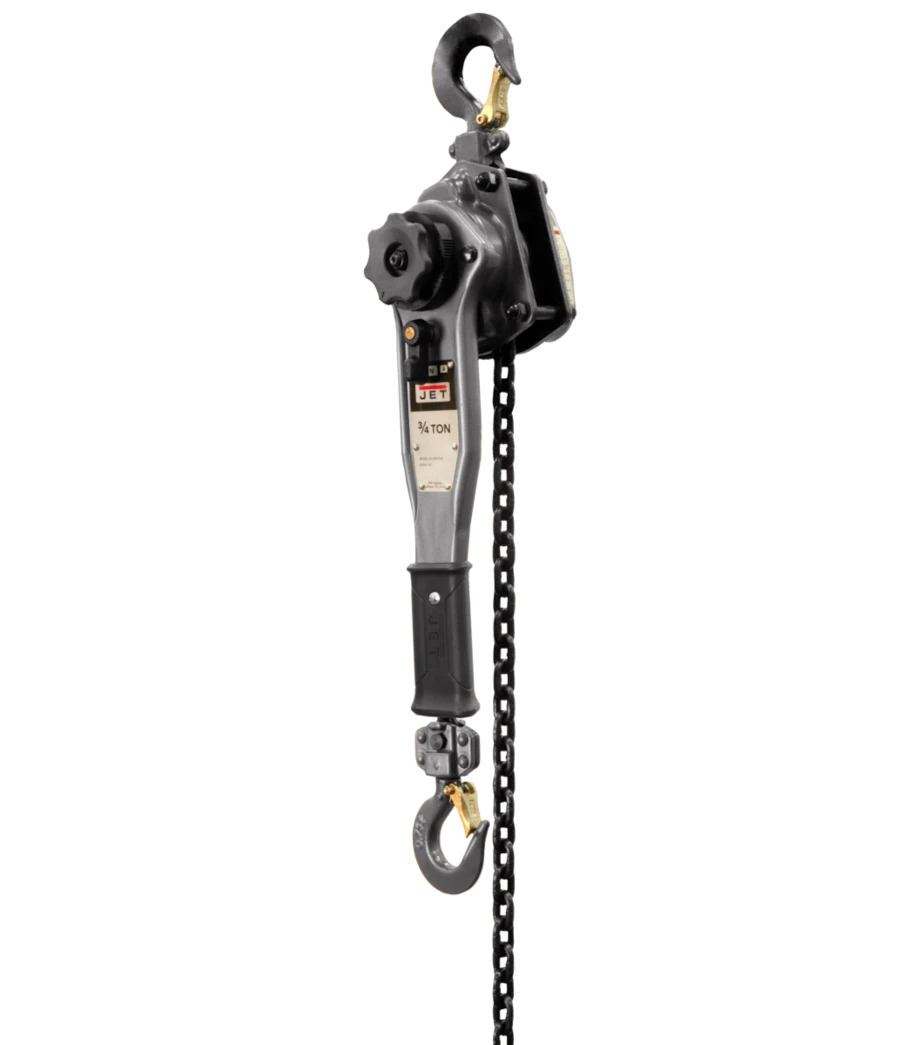

Jet JLP-075A-20 3/4 Ton Lever Hoist w/ 20 Feet Lift (287303)
Jet JLP-075A-20 3/4 Ton Lever Hoist w/ 20 Feet Lift (287303) is a reliable and durable tool designed for various lifting tasks. Built with safety and efficiency in mind, this lever hoist offers a maximum lifting capacity of 3/4 ton (1650 lbs) with a lift height of 20 feet.
KEY FEATURES AND BENEFITS:
Patented Brake Wear Indicator: Visually alerts users when brake pads need replacement for enhanced safety.
Double Pawl Overload Protection: Distributes load evenly, preventing accidents and ensuring stability.
Durable Steel Construction: Built to withstand heavy-duty use and harsh working conditions.
Easy Free Chain Design: Allows for quick positioning and efficient operation.
360-Degree Rotating Hooks: Provides flexibility and convenience during rigging.
Capacity: 3/4 ton (1650 lbs)
Headroom: 12-4/5 inches
Handle Length: 11 inches
Load Chain Dimensions: 6 x 18 mm
Lever Pull Force: 31 LBF
Weight: 22 pounds
Power Source: Hand Powered
Attach the load hook: Securely hook the load chain to the desired lifting point.
Position the hoist: Place the hoist in a stable position, ensuring proper clearance.
Operate the lever: Pull down on the lever to lift the load. Release the lever to lower the load.
Secure the load: Once the load is at the desired height, engage the load chain locker to prevent accidental lowering.
Inspect the hoist: After each use, check the hoist for any signs of damage or wear.
BENEFITS OF USING JET JLP-075A-20 3/4 TON LEVER HOIST W/ 20 FEET LIFT (287303):
Increased safety: Patented brake wear indicator and double pawl overload protection minimize risks.
Improved efficiency: Easy free chain design and smooth operation enhance productivity.
Durability: All-steel construction ensures long-lasting performance.
Versatility: Suitable for a wide range of lifting applications.
Compliance: Meets industry safety standards for reliable operation.
Patented brake wear indicator
Double pawl overload protection
Industrial-rated alloy steel hooks
Grade 80 black oxide coated load chain
Cast steel safety latches
Needle bearing design
Impact-resistant all-steel construction
Meets ANSI/ASME B30.21 and HST-3 standards
Load tested to 125% of capacity
Product identification
- Brand: Jet
- Model / MPN: 287303
Jet lever hoist: see the listed specifications for this model.
