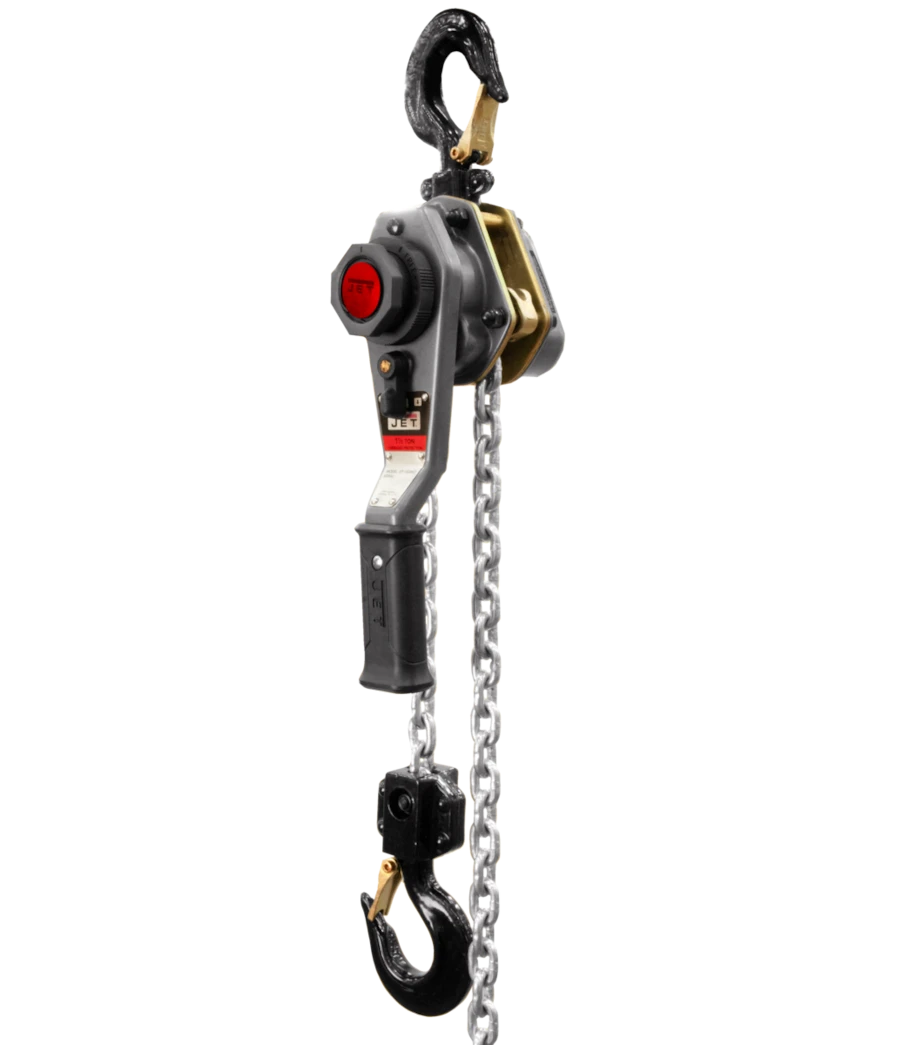

JET JLH 376302 1.5 Ton Lever Hoist, 15 ft Lift
The JET JLH 376302 combines a 15 ft lift configuration with a 1.5 ton capacity and a lever-operated mechanism. For a rigging layout, the useful comparison is available lift plus space for the body and handle, rather than chain length alone.
Specifications and included details
- JLH 376302: 1.5 ton capacity and 15 ft lift.
- Listed headroom is 13-1/5 inches; handle length is 10-3/8 inches.
- Slip-clutch overload protection and a Weston-style double-pawl brake are listed.
- One load-chain fall; listed chain dimensions are 7.1 x 19.9 mm.
Before ordering
Check the manufacturer's load marking, permitted orientation, hook seating and inspection requirements. Match the complete support and rigging system to the job. Overload protection is not permission to exceed the rating; follow the manual for selector and free-chain operation.
Product questions and answers
Does the 15 ft lift specify the handle length?
No. Fifteen feet describes the lift configuration; the listed handle length is 10-3/8 inches. Leave space for the required lever movement.
Is this JLH lever hoist an electric chain hoist?
No. This is a lever-operated JLH model. It is not an electric hoist or a hand-chain-operated L100 model.
Can the slip clutch increase the rated load?
No. The listed capacity remains 1.5 ton. Use the manufacturer's load marking and instructions; the overload feature does not authorize lifting a heavier load.
