Jet 3t lever hoist details

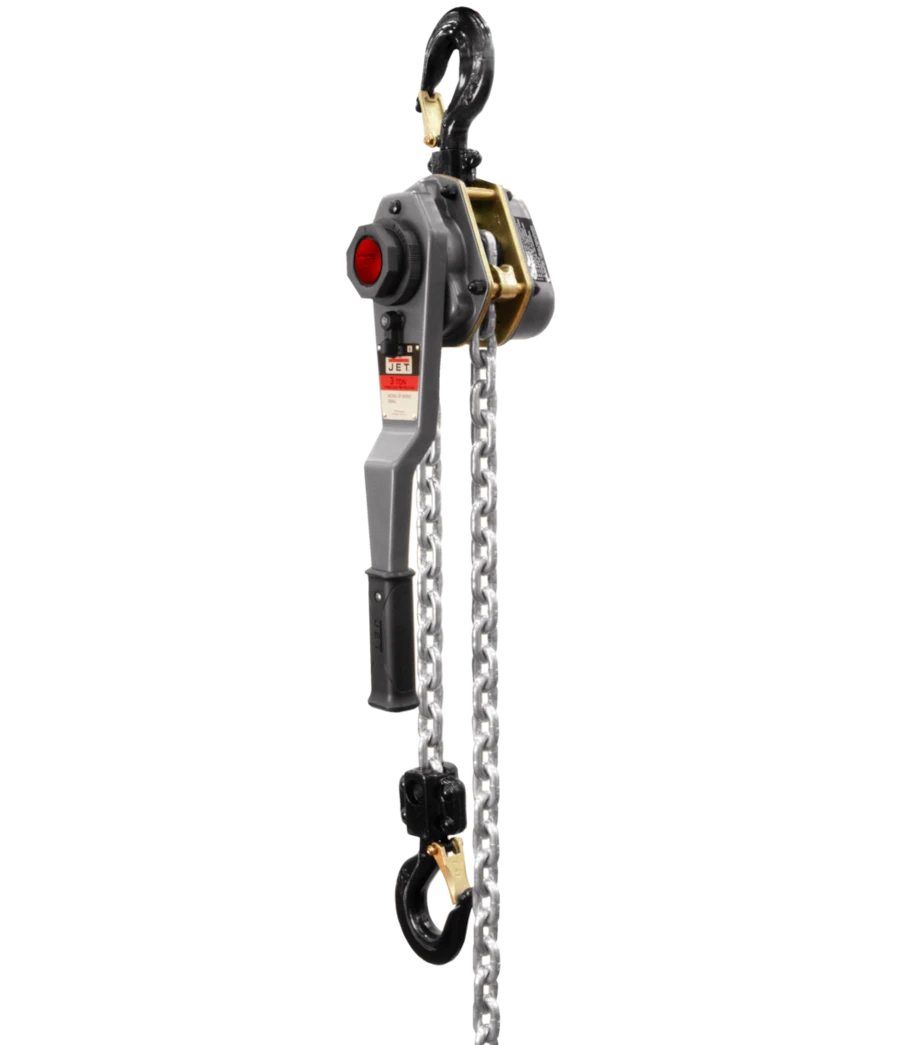

Jet JLH-300WO-15 3T Lever Hoist 15'Lift w/Overload Protection (376502)
Jet JLH-300WO-15 3T Lever Hoist 15'Lift w/Overload Protection (376502) is a heavy-duty lifting tool built for industrial environments. Designed with safety and efficiency in mind, this hoist offers reliable performance for a wide range of lifting applications.
KEY FEATURES AND BENEFITS:
Powerful Lifting Capacity: With a 3-ton capacity, this lever hoist can handle heavy loads with ease.
Safe Operation: Equipped with overload protection to prevent damage to the hoist and loads.
Durable Construction: All-steel construction ensures long-lasting performance in demanding conditions.
Efficient Lifting: Caged needle bearings and smooth operation for effortless lifting.
Ergonomic Design: Enhanced grip for comfortable and controlled operation.
Capacity: 3 tons (7040 lbs)
Overload Protection: Yes
Headroom: 15-5/9 inches
Handle Length: 16-5/16 inches
Lever Pull Force: 84 lbs
Lift per Turn: 3/4 inches
Number of Falls: 1
Load Chain Dimensions: 10 x 28 mm
Load Capacity (Metric Tons): 3.2
Hook Throat Opening: 1-1/2 inches
Overall Width: 7-1/2 inches
Inspect the hoist: Before each use, check for any damage to the load chain, hooks, or other components.
Attach the load: Securely hook the load chain to the load and the hoist hook to a secure anchor point.
Operate the lever: Pull down on the lever to lift the load and release the lever to lower it.
Control the load: Use the lever to carefully control the lifting and lowering of the load.
Lower the load: Once the load is in the desired position, slowly lower it by releasing the lever.
BENEFITS OF USING Jet JLH-300WO-15 3T Lever Hoist 15'Lift w/Overload Protection (376502):
Increased productivity: Efficient lifting and lowering of heavy loads saves time and effort.
Improved safety: Overload protection and durable construction minimize risks.
Versatility: Suitable for a wide range of industrial applications.
Cost-effective: Durable and reliable, reducing the need for frequent replacements.
All steel construction
Caged needle bearings
Grade 100 load chain
Heat-treated load plates
Industrial rated alloy steel hooks
Weston style double ratchet pawl brake
Product identification
- Brand: Jet
- Model / MPN: 376502
