Jet hydraulic bottle jack details

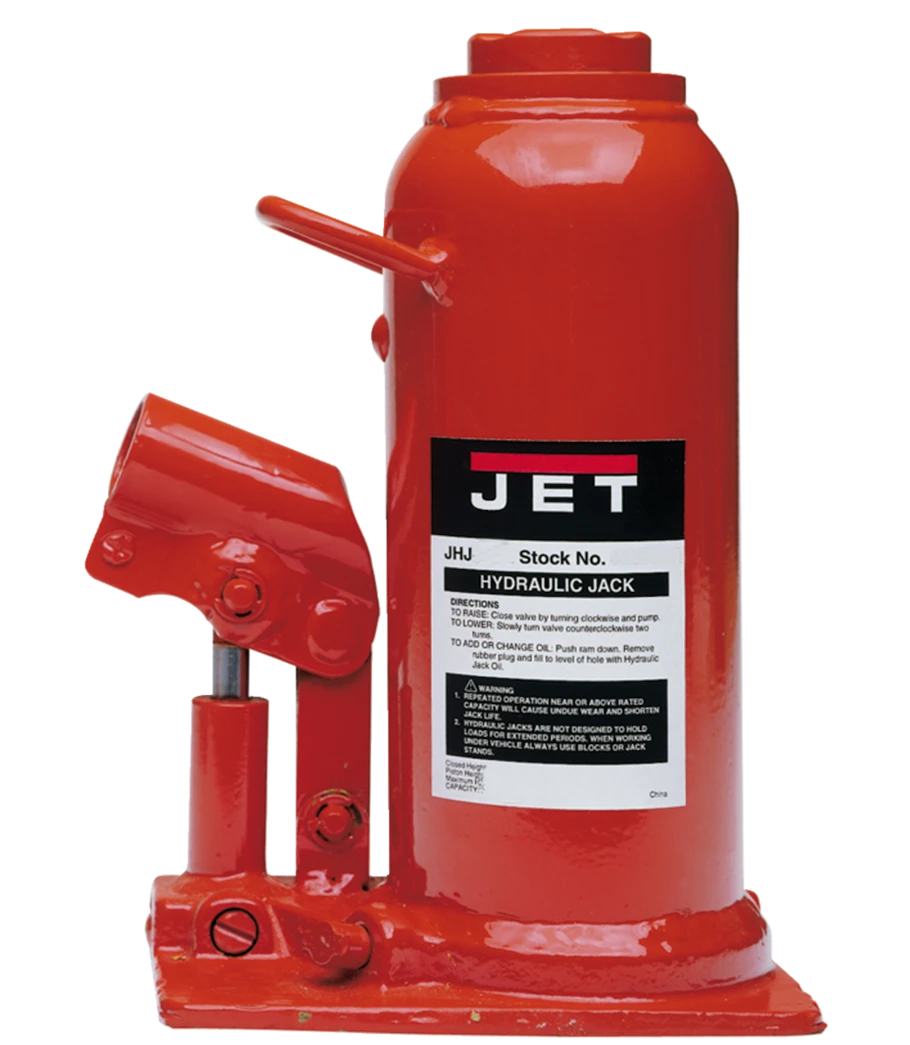

Jet JHJ-35 35-Ton Hydraulic Bottle Jack (453335K)
The Jet JHJ-35 35-Ton Hydraulic Bottle Jack (453335K) is a heavy-duty lifting equipment designed for various industrial applications. Built with durability and efficiency in mind, this bottle jack is a reliable tool for tasks requiring substantial lifting capacity.
KEY FEATURES AND BENEFITS:
Powerful lifting capacity: Handles loads up to 35 tons with ease.
Versatile usage: Operates in upright, angled, or horizontal positions for flexibility.
Durable construction: Features a heavy-duty base and corrosion-resistant components.
Safe operation: Complies with ANSI/ASME B30.1 and PALD-1 safety standards.
Efficient performance: Precision-machined cylinders ensure smooth and leak-free operation.
Load Capacity: 35 tons
Minimum Height: 11 inches
Maximum Height: 17-1/4 inches
Base Dimensions: 8-3/8 x 5-1/2 inches
Weight: 48 pounds
Operating Temperature: -4°F to 158°F
Position the jack: Place the jack on a stable and level surface.
Extend the jack: Lower the saddle by pumping the handle.
Position the load: Carefully position the load under the saddle.
Lift the load: Pump the handle continuously until the load reaches the desired height.
Lower the load: Open the release valve to lower the load slowly and controlled.
BENEFITS OF USING JET JHJ-35 35-TON HYDRAULIC BOTTLE JACK (453335K):
Increased productivity: Efficient lifting and lowering of heavy loads saves time and effort.
Improved safety: The sturdy construction and safety compliance ensure secure operations.
Versatility: Handles a wide range of tasks due to its adjustable positions.
Durability: Built to withstand demanding industrial conditions.
Reliable performance: Delivers consistent results for optimal efficiency.
Heavy-duty base for stability
Precision-machined and polished cylinders
Chrome-plated piston and ram for corrosion resistance
Hydraulic system protected by internal bypass mechanism
Pump handle included
Complies with ANSI/ASME B30.1 and PALD-1 standards
Product identification
- Brand: Jet
- Model / MPN: 453335K
