Jet drill press jdp 17mf details

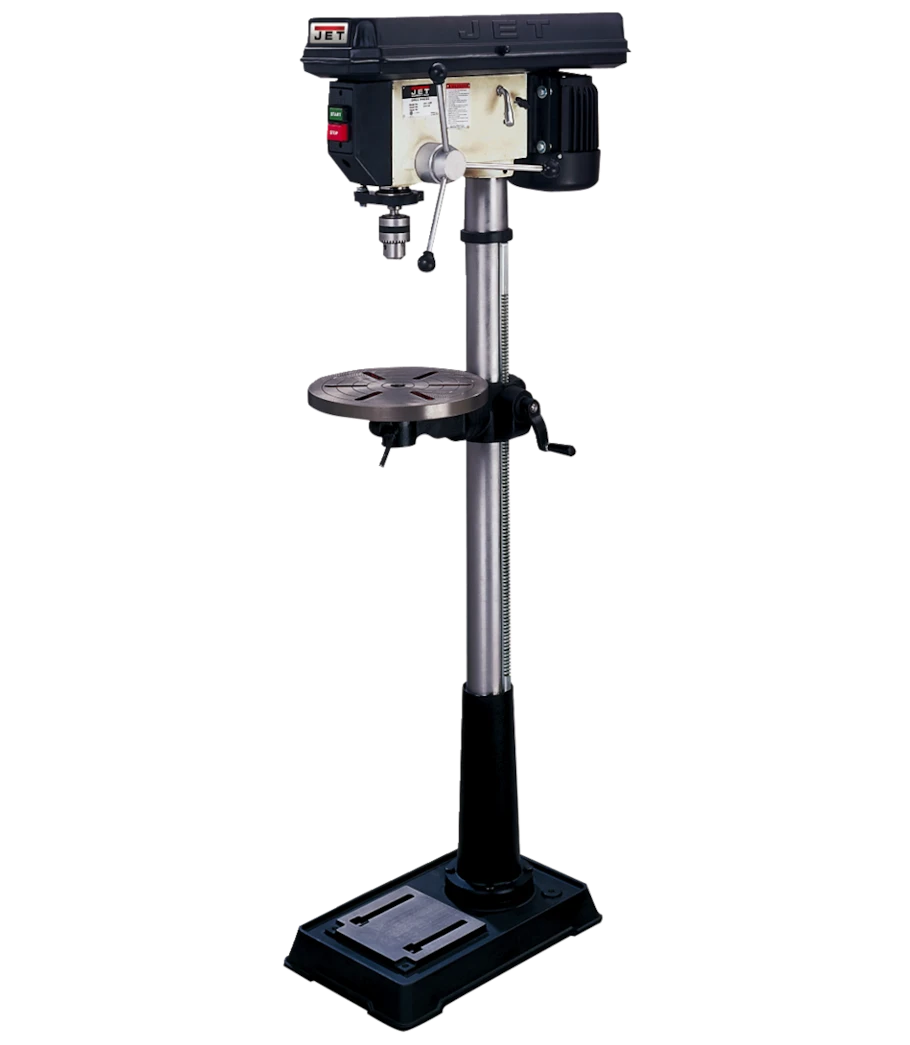

Jet JDP-17MF 3/4HP 16.5 Inch Floor Drill Press (354169)
Jet JDP-17MF 3/4HP 16.5 Inch Floor Drill Press (354169) is a reliable and powerful option for both woodworkers and metalworkers. This versatile drill press boasts a 3/4 horsepower motor and 16 speed settings, allowing you to tackle a wide range of drilling tasks with precision.
KEY FEATURES AND BENEFITS:
Powerful Performance: 3/4 HP motor delivers ample power to handle demanding drilling applications.
Versatility & Control: 16 speed settings ensure you select the optimal speed for each material and drill bit size.
Accurate Drilling: Adjustable worktable with depth stop enables consistent hole depths and precise results.
User-Friendly Design: Quick-release crank operated worktable allows for effortless height adjustments.
Enhanced Visibility: Built-in worklight (bulb not included) provides better illumination of your work area.
Durable Construction: High-quality ball bearing spindle construction ensures long-lasting performance.
Motor Power: 3/4 HP
Number of Speeds: 16
Spindle Travel: 4-3/8 inch
Table Tilt: 45° R & L
Worktable: Quick-release, crank-operated, height adjustable, rotates + or – 45°
Chuck Size: 5/8 inch
Column Diameter: 3-1/8 inch
Table Size: 13-3/4 x 18-1/4 inch
Base Size: 11-1/8 x 19-5/8 inch
Weight: Approximately 230 lbs
Assembly: Refer to the included user manual for detailed assembly instructions. Secure the drill press to a stable work surface.
Workpiece Setup: Secure your workpiece to the drill press table using clamps or a vise, ensuring proper positioning and stability.
Speed Selection: Consult a drill bit chart to determine the appropriate speed for your chosen bit size and material. Utilize the speed selection knob to make adjustments.
Depth Setting: Utilize the depth stop mechanism to establish the desired drilling depth. Tighten the set bolt to secure the depth setting.
Drilling: Lower the drill head using the quill handle until the bit makes contact with the workpiece. Engage the motor and apply gentle downward pressure to begin drilling. Maintain a firm grip on the workpiece throughout the process.
Bit Changes: Once drilling is complete, power off the drill press and allow the motor to come to a complete stop. Utilize the chuck key to loosen and remove the drill bit. Install the new bit and tighten the chuck securely.
BENEFITS OF USING Jet JDP-17MF 3/4HP 16.5 Inch Floor Drill Press (354169):
Precision Drilling: Achieve accurate and consistent results with the adjustable worktable, depth stop, and variable speed control.
Versatility: Tackle a wide range of drilling projects in wood, metal, and other materials with the powerful motor and multiple speed settings.
User Comfort: The ergonomically designed worktable and controls enhance user comfort and reduce fatigue during extended use.
Durability: Built with high-quality components, this Jet floor drill press ensures long-lasting performance for demanding applications.

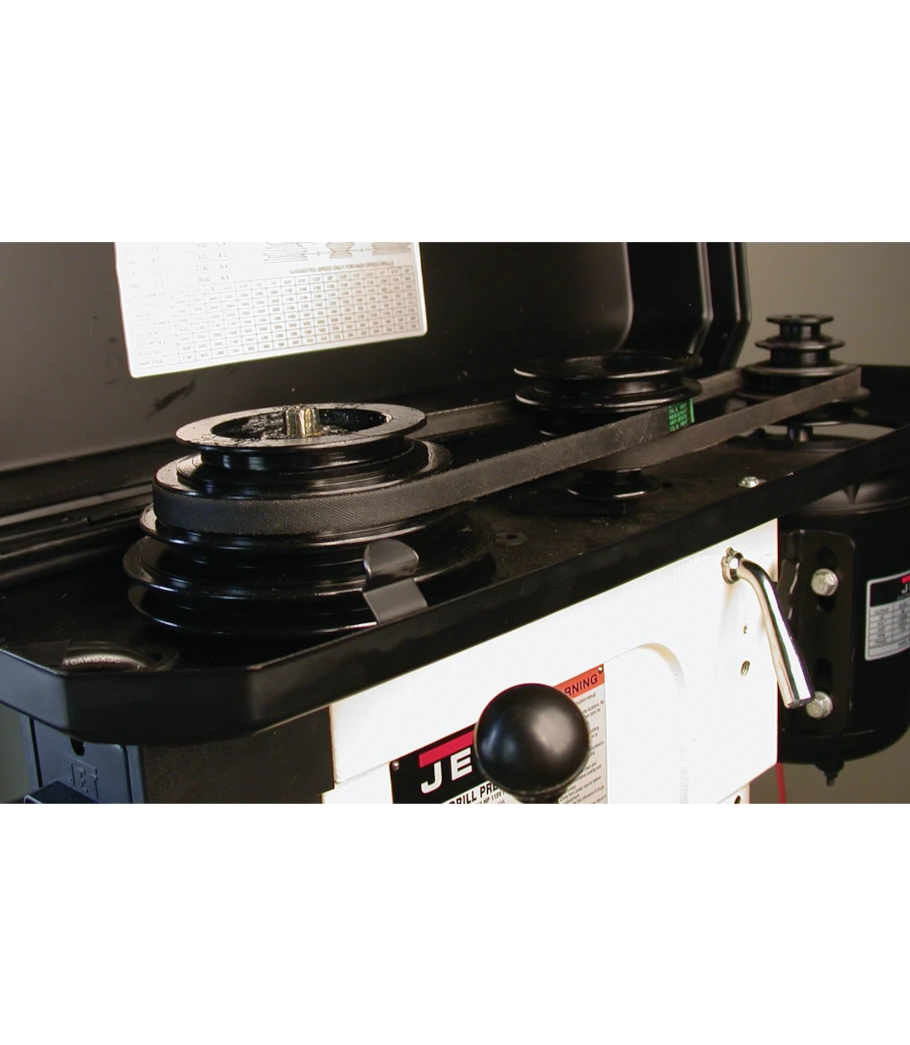

16 Speed Settings
Quick-Release Crank Operated Worktable
Adjustable Worktable Tilt (45° R & L)
Depth Stop with Quick Set Bolt
Built-in Worklight (Bulb Not Included)
X-Pattern Mounting Grooves in Table
Product identification
- Brand: Jet
- Model / MPN: 354169
Floor drill press: see the listed specifications for this model.
