Jet 4 bolt chipping hammer details

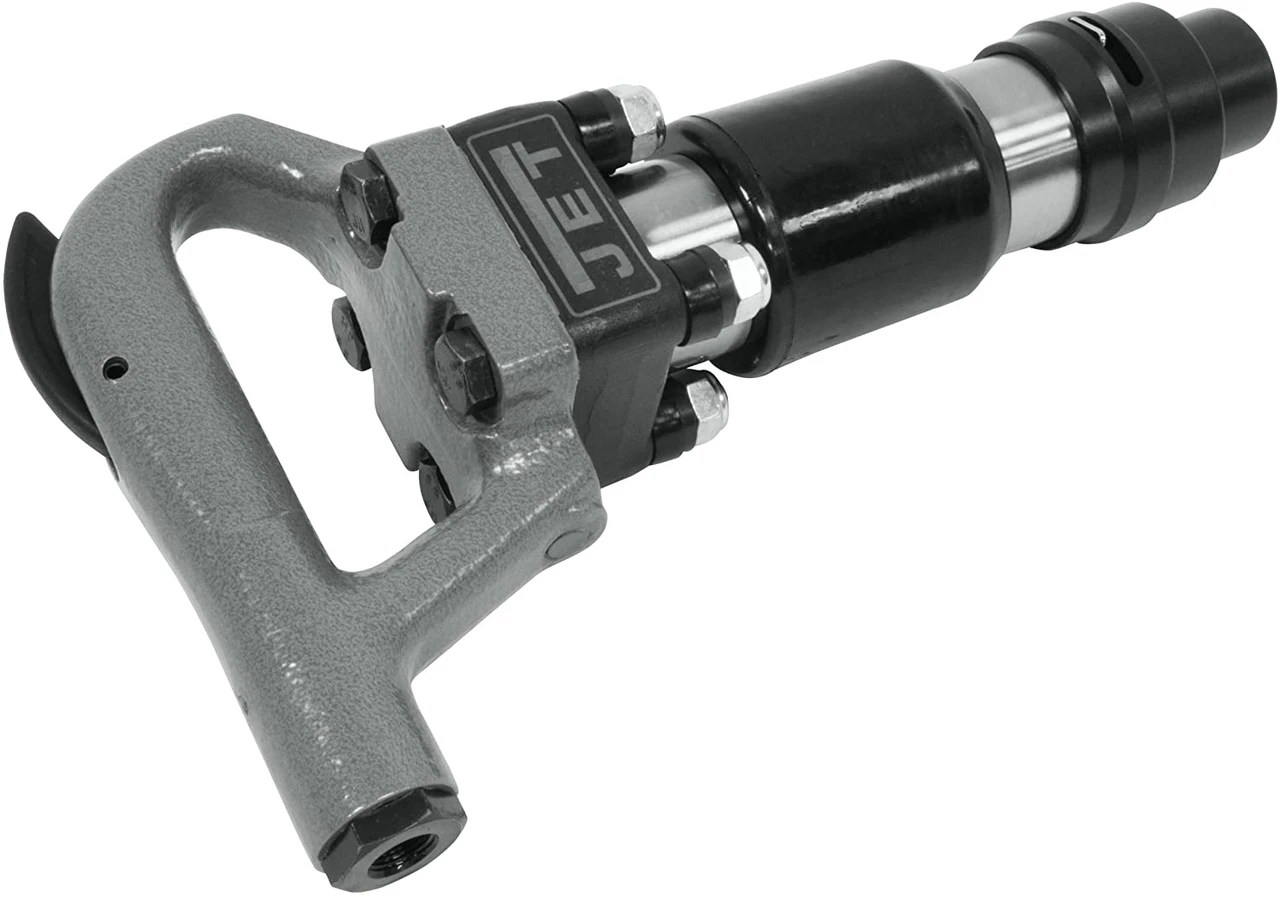

Jet JCT-3623 4" 4-Bolt Chipping Hammer w/ Hex Shank (550623)
Jet JCT-3623 4" 4-Bolt Chipping Hammer w/ Hex Shank (550623) is a heavy-duty tool designed for efficient and powerful material removal. Built with a robust 4-bolt construction and a comfortable D-handle, this chipping hammer delivers exceptional performance and user comfort.
KEY FEATURES AND BENEFITS:
Durable Construction: The 4-bolt design and heat-treated cylinder and piston ensure long-lasting performance in demanding conditions.
Powerful Performance: With a 4-inch stroke and 1,500 blows per minute, this chipping hammer effectively tackles tough materials.
Ergonomic Design: The D-handle provides a comfortable grip, reducing user fatigue during extended use.
Easy Maintenance: The 4-bolt backhead allows for simple servicing and replacement of parts.
Shank Bushing Style: Hex
Shank Bushing Size: 0.580 inches
Piston Stroke: 4-1/64 inches
Bore Size: 1-3/16 inches
Energy Per Blow @ 90 PSI: 22 ft-lb
Rivet Capacity: 1-1/4 inches
Air Consumption: 34 CFM
Vibration Value: 26.0 m/s²
Noise Level: 98 dB(A)
Overall Length: 16-1/2 inches
Blows Per Minute: 1,500
Air Pressure: 90 PSI
Air Inlet: 3/8" NPT
Minimum Air Hose Size: 1/2" ID
Safety First: Always wear appropriate safety gear, including eye protection, hearing protection, and gloves.
Connect Air Hose: Securely connect the air hose to the chipping hammer's air inlet using a 3/8" NPT fitting.
Inspect Tool: Check for any damage or wear before use. Ensure the chisel is securely tightened.
Turn On Air Compressor: Start the air compressor and adjust the pressure to 90 PSI.
Grip the Handle: Hold the chipping hammer firmly with both hands, using the D-handle for control.
Start Chipping: Apply steady pressure and use controlled motions to remove material.
Regular Maintenance: Clean the chipping hammer after each use and lubricate moving parts according to the manufacturer's instructions.
BENEFITS OF USING JET JCT-3623 4" 4-BOLT CHIPPING HAMMER W/ HEX SHANK (550623):
Increased efficiency and productivity on construction sites.
Improved material removal speed and accuracy.
Enhanced user comfort due to ergonomic design.
Reduced downtime with easy maintenance and repair.
Durable construction for long-lasting performance.
Four-bolt design for extra strength
Heat-treated cylinder and piston
Heavy-duty valve design
Ergonomic D-handle
Easy serviceability
Standard type retainer
Product identification
- Brand: Jet
- Model / MPN: 550623
