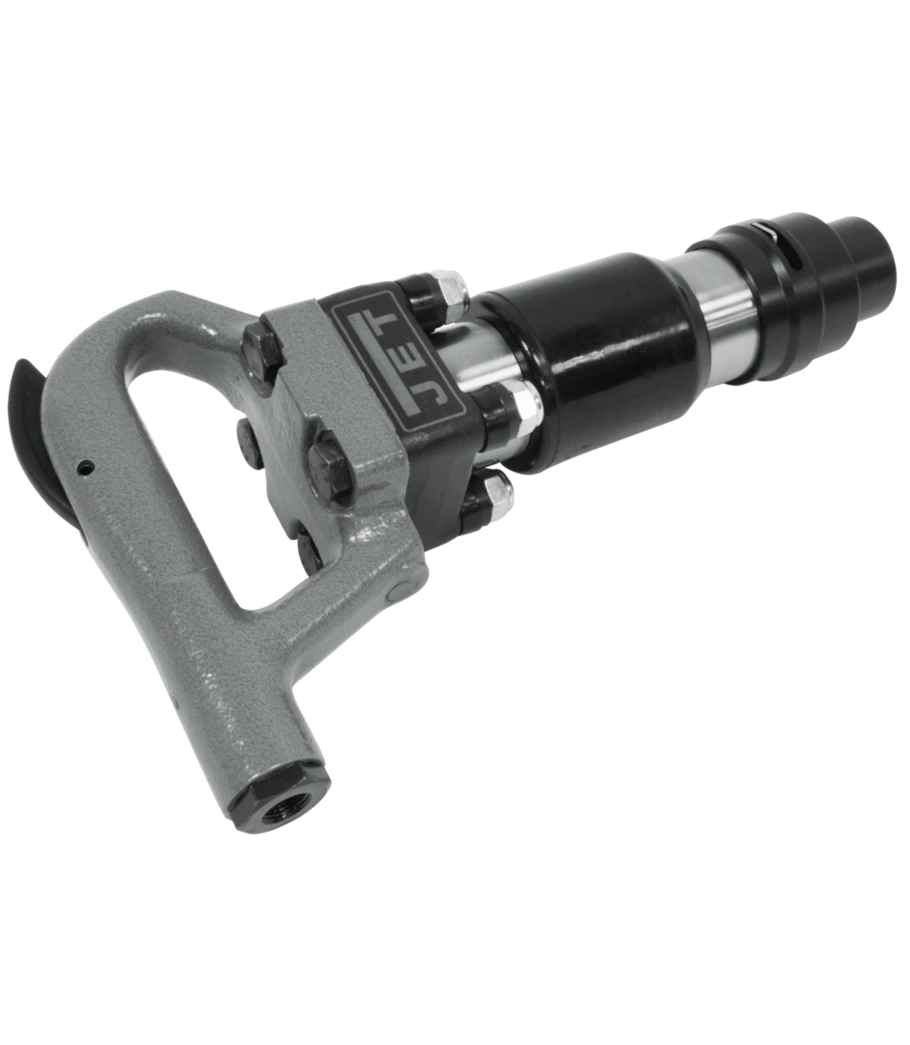

Jet JCT-3620 3" Stroke 4-Bolt Chipping Hammer Round Shank (550620)
Jet JCT-3620 3" Stroke 4-Bolt Chipping Hammer Round Shank (550620) is a robust chipping hammer designed for efficient and powerful material removal. Built with durability in mind, this tool is ideal for construction, demolition, and other demanding tasks.
KEY FEATURES AND BENEFITS:
Heavy-duty construction: Ensures long-lasting performance in tough conditions.
4-bolt backhead: Allows for easy maintenance and repair.
Heat-treated cylinder and piston: Provides enhanced durability and resistance to wear.
Ergonomic D-style forged handle: Offers comfortable and secure grip.
High-performance valve design: Delivers consistent and powerful blows.
Shank Bushing Style: Round
Shank Bushing Size: 0.680 inches
Piston Stroke: 3-1/32 inches
Bore Size: 1-3/16 inches
Blows Per Minute (BPM): 2,200
Energy Per Blow @ 90 PSI: 17 ft-lb
Air Consumption: 34 CFM
Vibration Value: 15.0 m/s²
Noise Level: 95.0 dB(A)
Overall Length: 14 inches
Air Inlet: 3/8 inch NPT
Weight: 18 pounds
Connect the chipping hammer: Attach the hammer to an air compressor with a minimum hose size of 1/2 inch.
Set Air Pressure: Ensure the air pressure is set to 90 PSI for optimal performance.
Grip the Hammer: Hold the chipping hammer firmly with both hands, using the D-handle for support.
Position and Use: Position the chisel at the desired angle and apply steady pressure while activating the trigger.
Cool Down: For continued use, allow the tool to cool down periodically to prevent overheating.
BENEFITS OF USING JET JCT-3620 3" STROKE 4-BOLT CHIPPING HAMMER ROUND SHANK (550620):
Increased efficiency and productivity due to powerful performance.
Reduced downtime with durable construction and easy maintenance.
Improved user comfort with ergonomic handle design.
Versatile tool suitable for various chipping applications.
Heat-treated cylinder and piston
Ergonomic D-style forged handle
High-performance valve design
Standard retainer included
Product identification
- Brand: Jet
- Model / MPN: 550620
