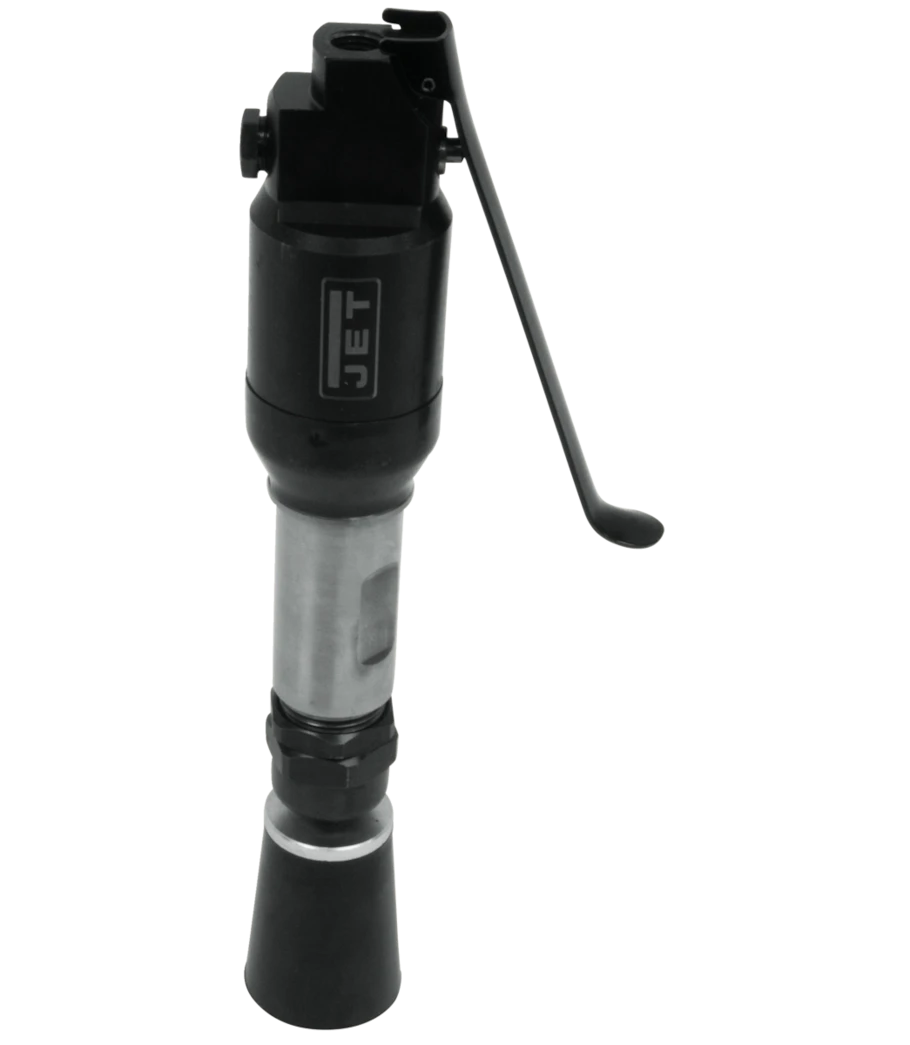

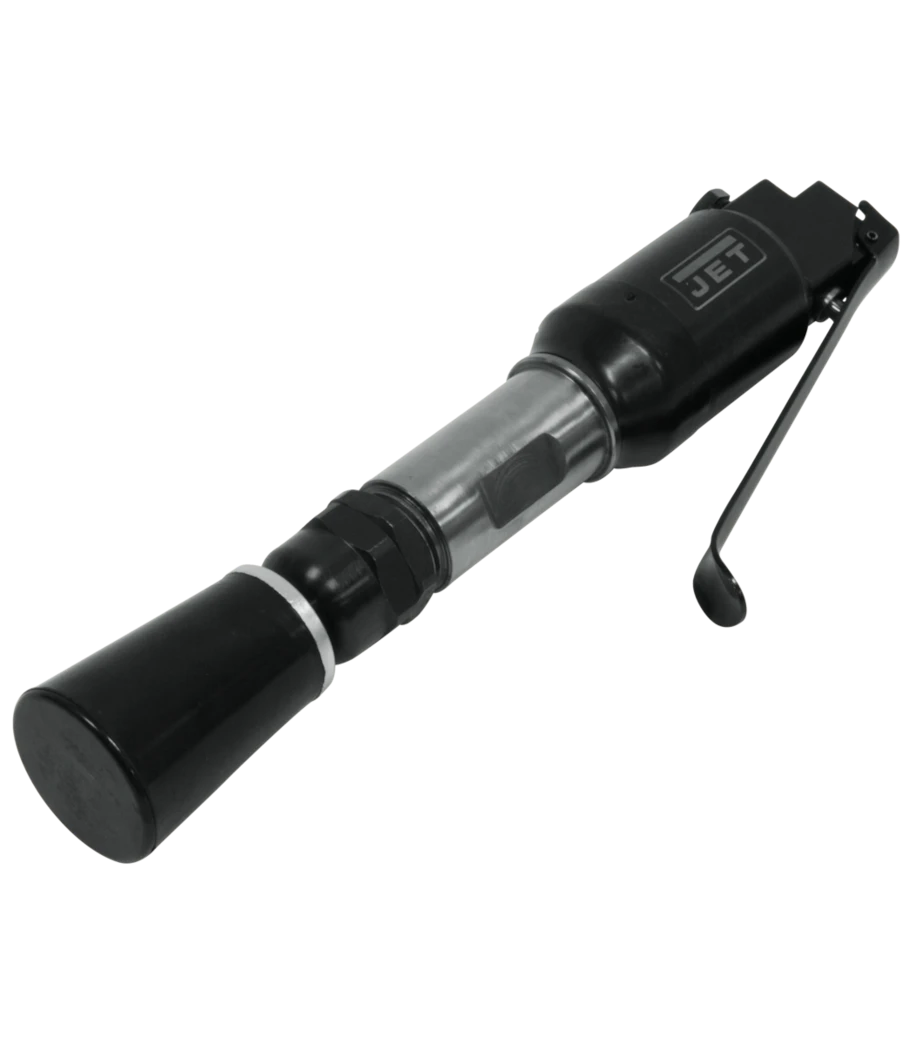

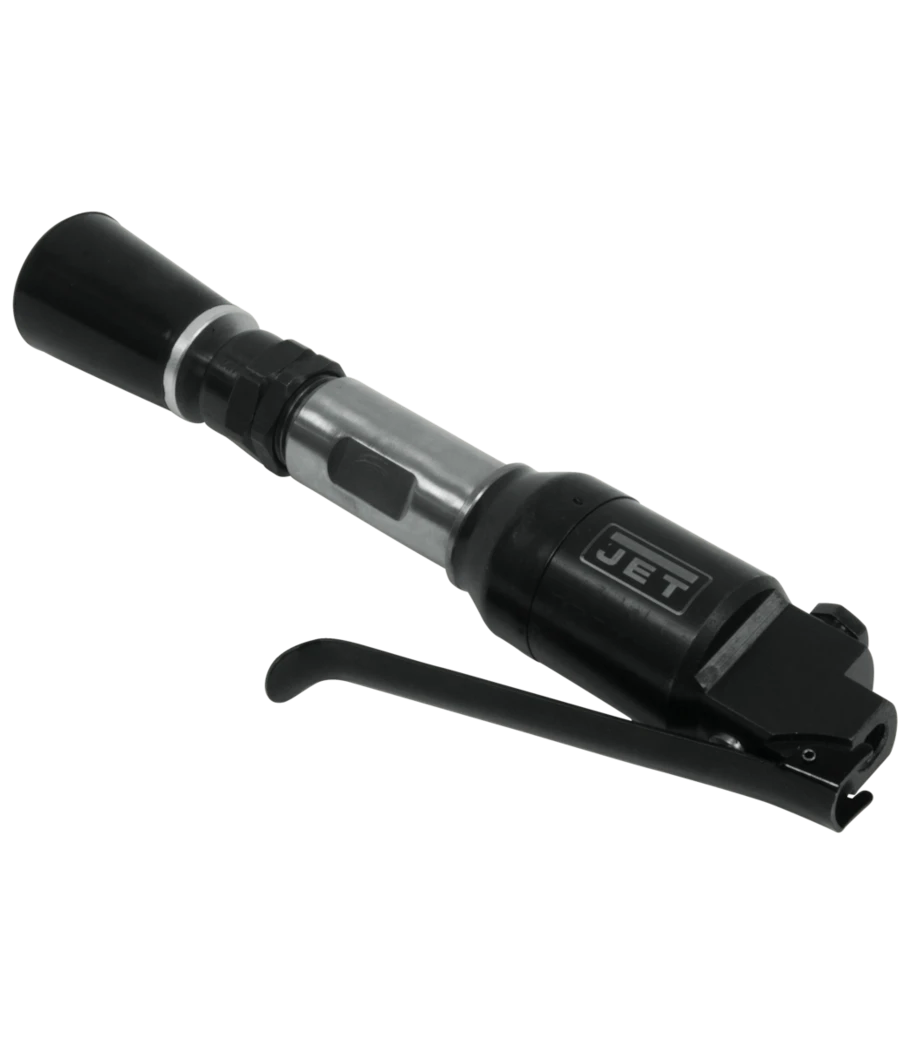

Jet JCT-1600 1500 BPM 2" Stroke Benchtop Sand Rammer (550600)
The Jet JCT-1600 1500 BPM 2" Stroke Benchtop Sand Rammer (550600) is a compact and efficient tool designed for compacting sand molds of various sizes. Built with durability in mind, it features an all-steel cylinder housing that ensures long-lasting performance.
KEY FEATURES AND BENEFITS:
Powerful and Fast: Delivers 1500 blows per minute for rapid compaction of sand molds.
Durable Construction: All-steel cylinder housing for extended tool life.
Efficient Operation: Compact benchtop design for convenient use.
Reliable Performance: Heavy-duty valve design for consistent results.
Protection: Front end seal safeguards the piston from dirt and debris.
Style: Benchtop Sand Rammer
Dimensions: 30.5 cm x 9.4 cm x 6.3 cm
Air Consumption: 14 CFM
Air Hose Size: 3/8 inch
Air Inlet: 1/4 inch NPT
Air Pressure: 90 PSI
Piston Stroke: 2 inches
Vibration Value: 35.04 m/s²
Butt Type: Rubber
Prepare the Sand Mold: Ensure the sand mold is properly prepared and positioned.
Connect to Air Supply: Connect the sand rammer to a compressed air supply using the 3/8 inch air hose.
Adjust Air Pressure: Turn on the compressed air supply and adjust the pressure to 90 PSI.
Position the Sand Rammer: Position the sand rammer over the sand mold.
Activate Compaction: Activate the sand rammer to start the compaction process.
Move Across the Mold: Move the sand rammer across the mold in a consistent pattern to ensure even compaction.
Complete Compaction: Continue the process until the desired level of compaction is achieved.
Turn Off Air Supply: Turn off the compressed air supply and disconnect the sand rammer.
BENEFITS OF USING JET JCT-1600 1500 BPM 2" STROKE BENCHTOP SAND RAMMER (550600):
Saves time and effort compared to manual compaction methods.
Ensures consistent and even compaction of sand molds.
Improves the quality and strength of castings.
Reduces the risk of mold defects.
Built to last with a durable all-steel construction.
All-steel cylinder housing
Fast and powerful blows
Front end seal for protection
Heavy-duty valve design
Compact benchtop design
Product identification
- Brand: Jet
- Model / MPN: 550600
