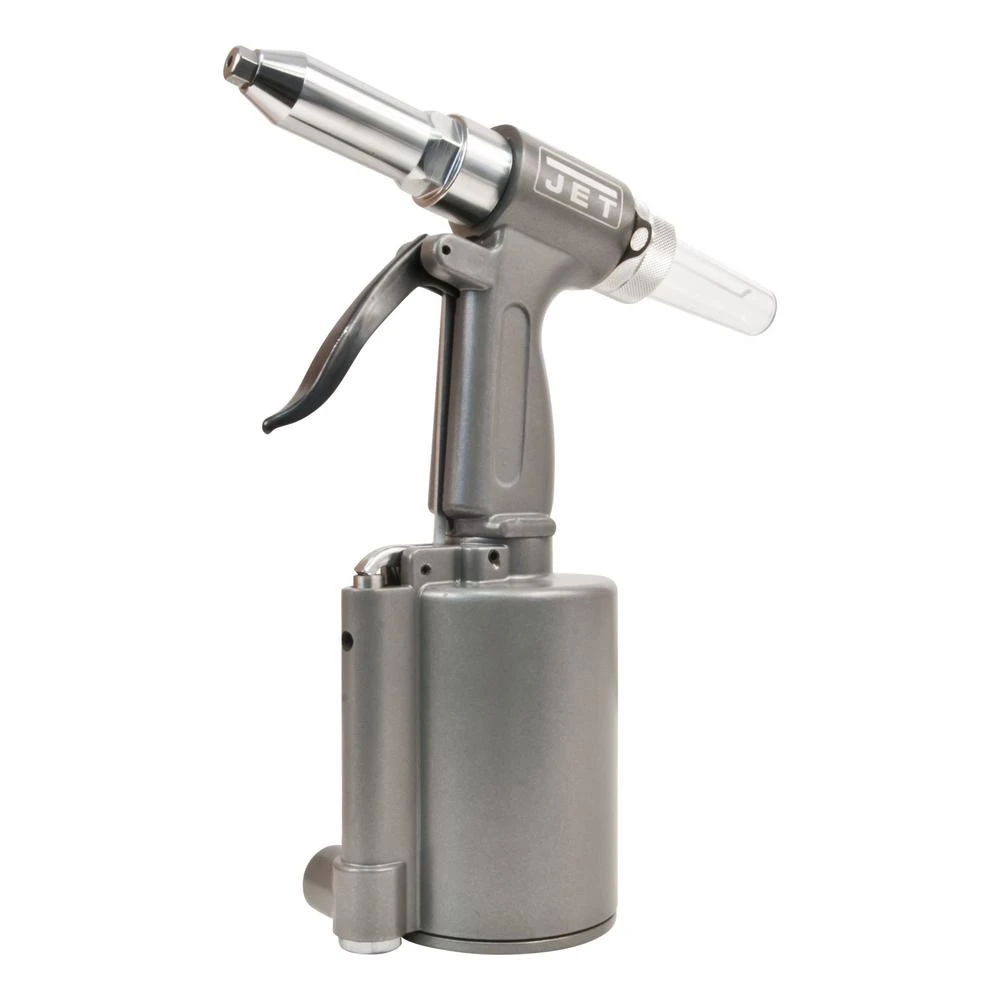

Jet JAT-920 R6 Series Air Riveter (505920)
The Jet JAT-920 R6 Series Air Riveter (505920) is designed for heavy-duty applications, providing efficient riveting capabilities across various materials.
KEY FEATURES AND BENEFITS:
Heavy-duty construction: Handles demanding jobs and frequent use.
3/16" mild steel capacity: Sets rivets in various metals.

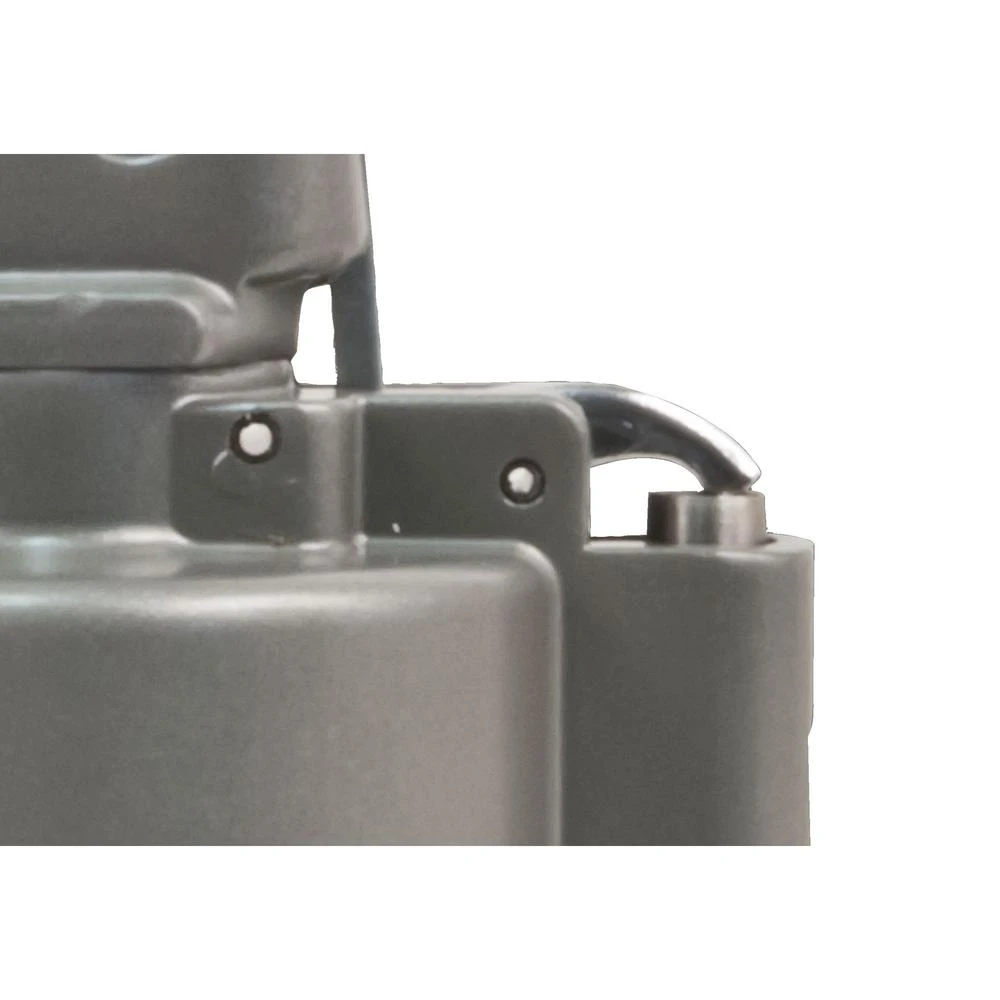

Quick-release air valve: Enhances safety during operation.
2,000 lbs. pulling load: Ideal for diverse riveting applications.

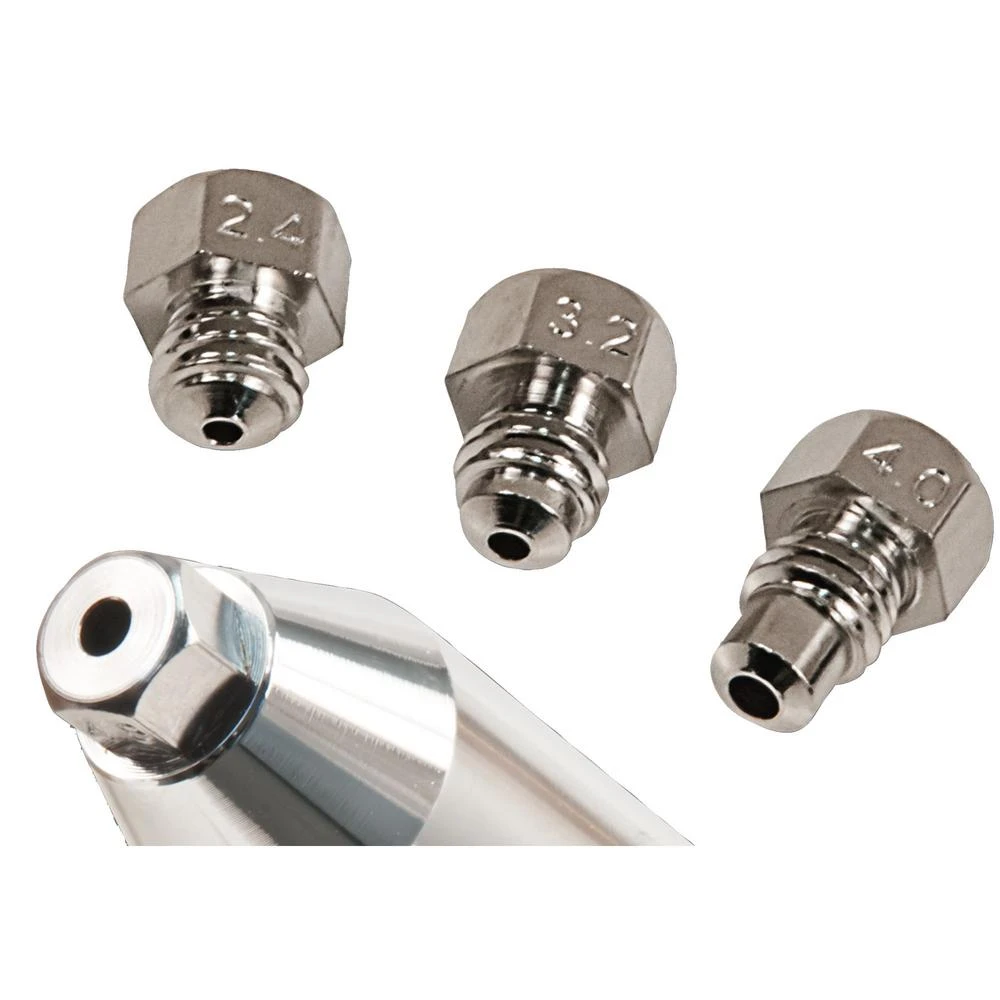

Four nose pieces (3/16", 5/32", 1/8", 3/32"): Work with various rivet sizes.
Classification: R6
Metal Capacity: 3/16"
Stroke Length: 9/16"
Traction Power: 1,940 lbs.
Air Pressure: 78-85 PSI
Air Inlet: 1/4" NPT
Air Hose (ID): 3/8"
Air Consumption: 4 CFM
Sound Pressure: 77 dB(A)
Sound Power: 88 dB(A)
Vibration Value: 1.01 m/s²
Overall Length: 11-1/2"
Weight: 1.6 lbs.
Attach air hose: Connect a 3/8" ID air hose (not included) to the 1/4" NPT air inlet of the riveter. Ensure a secure connection.
Select nose piece: Choose the appropriate nose piece size that matches your rivet diameter.
Load rivet: Insert the rivet mandrel into the nose piece and place the rivet head on the workpiece.
Position riveter: Align the nose piece with the rivet shank on the workpiece.
Pull the trigger: Squeeze the trigger to set the rivet. The riveter will automatically retract once the rivet is set.
BENEFITS OF USING Jet JAT-920 R6 Series Air Riveter (505920):
Increased productivity: Quickly and efficiently sets rivets for faster project completion.
Durable construction: Withstands heavy-duty use for long-lasting performance.
Versatile application: Handles various rivet sizes and materials.
Safety features: Quick-release air valve minimizes accidental operation.
Lightweight design: Reduces operator fatigue during extended use.
Durable construction for continuous production.
Quick-release air valve for safety.
Maximum pulling load of 2,000 pounds.
Includes 3/16", 5/32", 1/8", and 3/32" nose pieces.
Product identification
- Brand: Jet
- Model / MPN: 505920
