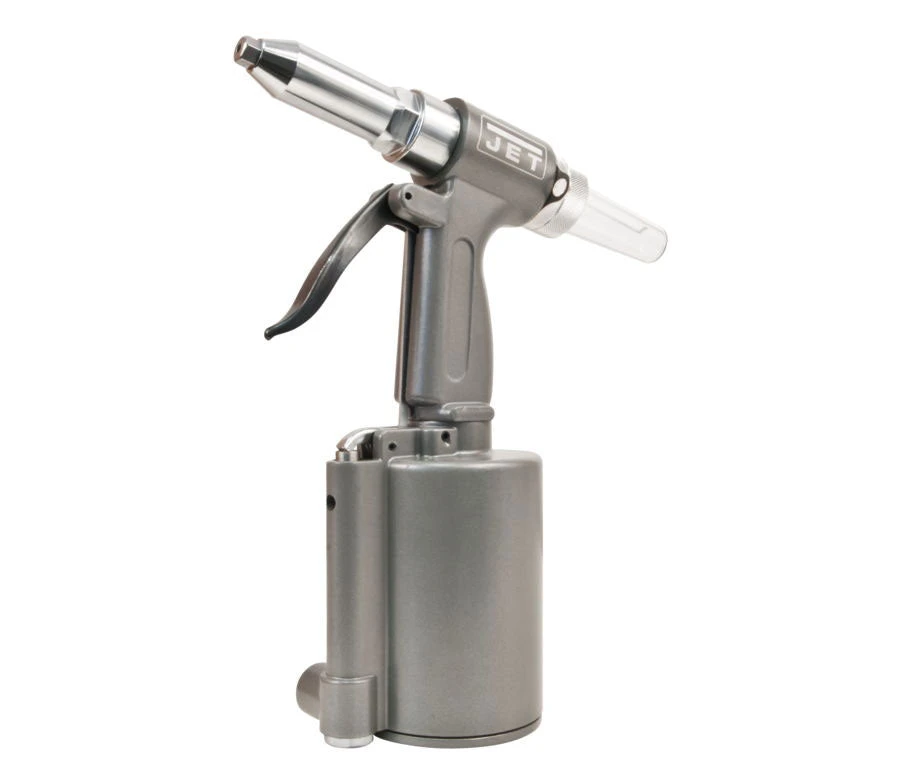

Jet JAT-920 Model Air Riveter (505921)
The Jet JAT-920 Model Air Riveter (505921) is a heavy-duty tool designed for efficient and reliable riveting tasks. Built with industrial use in mind, this riveter is capable of handling mild steel up to 3/16" in depth. Its compact design and lightweight aluminum body make it easy to handle, reducing operator fatigue during extended use.
KEY FEATURES AND BENEFITS:
Powerful Performance: The JAT-920 delivers a maximum pulling load of 1,940 pounds, ensuring efficient riveting of various materials.

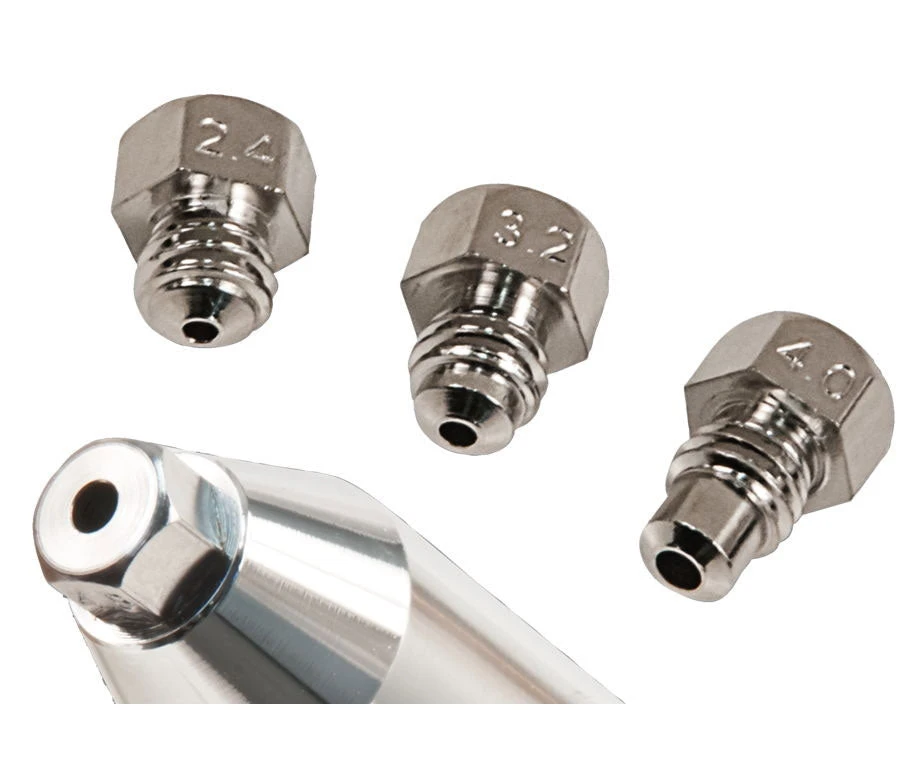

Versatile Applications: With included nose pieces in different sizes (3/16", 5/32", 1/8", and 3/32"), this riveter accommodates a wide range of riveting jobs.
Durable Construction: Built to withstand the demands of industrial settings, the JAT-920 is designed for long-lasting performance.
User-Friendly Design: The lightweight aluminum body and ergonomic handle contribute to comfortable and efficient operation.
Safety Features: The quick-release air valve enhances safety during tool operation.
Model Number: JAT-920
Stock Number: 505921
Air Consumption: 4 CFM
Air Inlet: 1/4" NPT
Air Pressure: 78-85 PSI
Metal Capacity: 3/16" mild steel
Sound Power: 88 dB(A)
Sound Pressure: 77 dB(A)
Stroke Length: 9/16"
Traction Power: 1,940 pounds
Weight: 3.48 lbs
Prepare the workpiece: Ensure the workpiece is securely clamped or held in place.
Select the appropriate nose piece: Choose the nose piece that matches the diameter of the rivet you will be using.
Insert the rivet: Insert the rivet into the prepared hole in the workpiece.
Attach the nose piece: Securely attach the selected nose piece to the riveter.
Start the air compressor: Turn on the air compressor to provide the necessary air pressure.
Pull the trigger: Squeeze the trigger on the riveter to initiate the riveting process.
Release the trigger: Once the rivet is set, release the trigger to complete the process.
Remove the rivet head: Use a rivet gun or pliers to remove the excess rivet head.
BENEFITS OF USING Jet JAT-920 Model Air Riveter (505921):
Increased productivity due to faster riveting process.
Consistent and reliable rivet setting for improved quality.
Reduced operator fatigue with lightweight and ergonomic design.
Versatile tool for various riveting applications.
Enhanced safety with quick-release air valve.
Heavy-duty construction for industrial use
Includes multiple nose pieces for versatility
Powerful motor for efficient riveting
Lightweight aluminum body for easy handling
Quick-release air valve for safety
Product identification
- Brand: Jet
- Model / MPN: 505921
