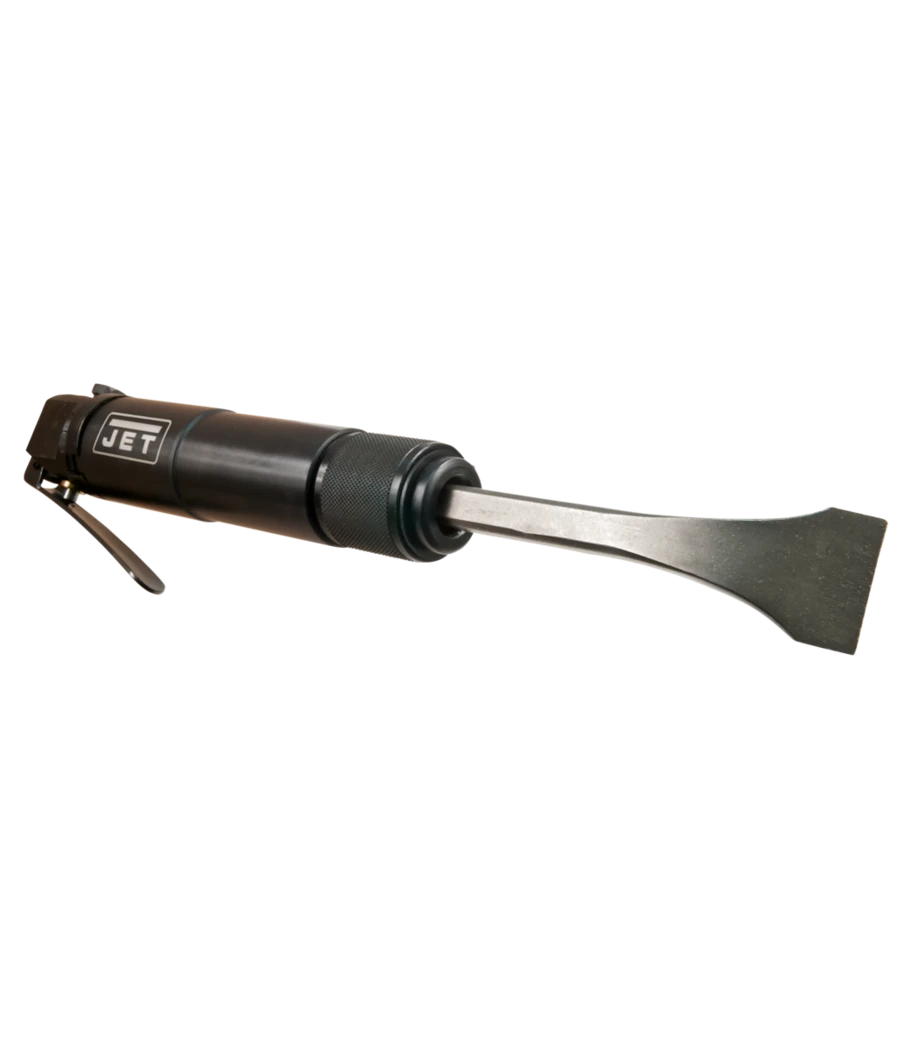

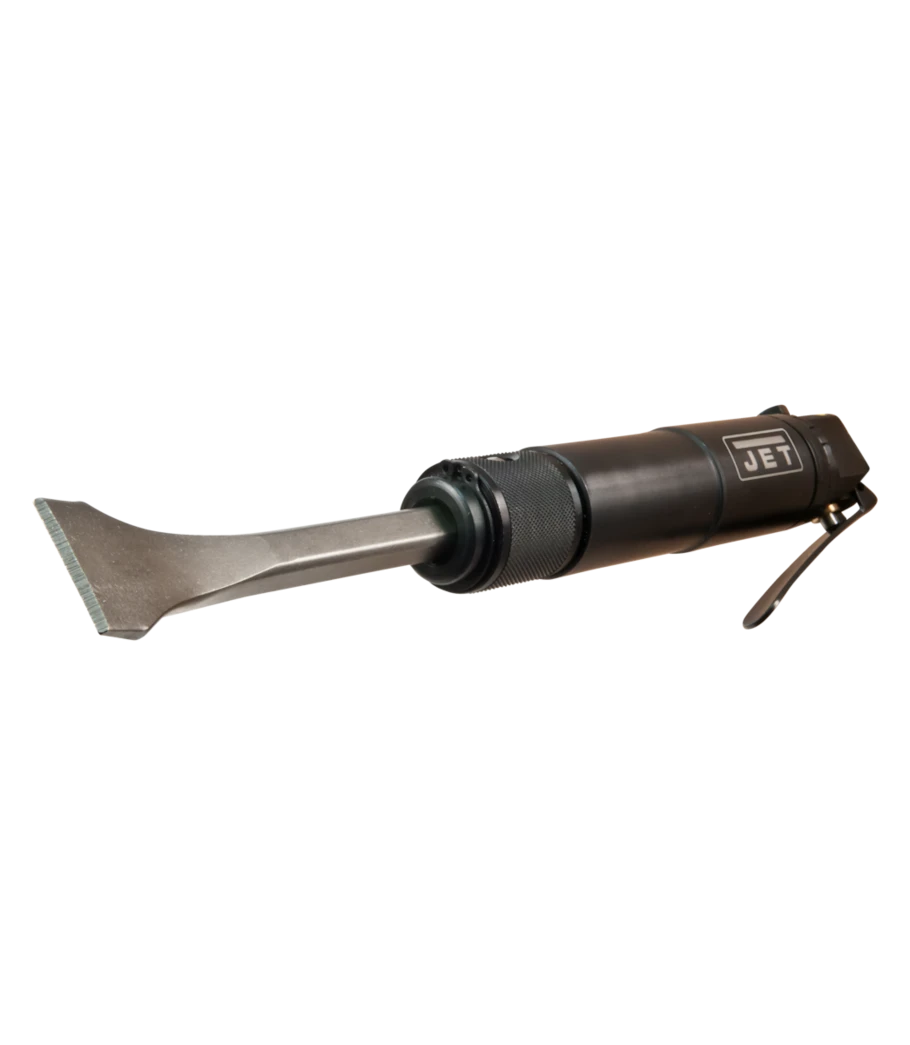

Jet JAT-820 R8 Series Flux Chipper (505820)
The Jet JAT-820 R8 Series Flux Chipper (505820) is a powerful and durable tool designed for efficient surface preparation. Built for heavy-duty industrial use, it effectively removes rust, paint, slag, and spatter from various surfaces.
KEY FEATURES AND BENEFITS:

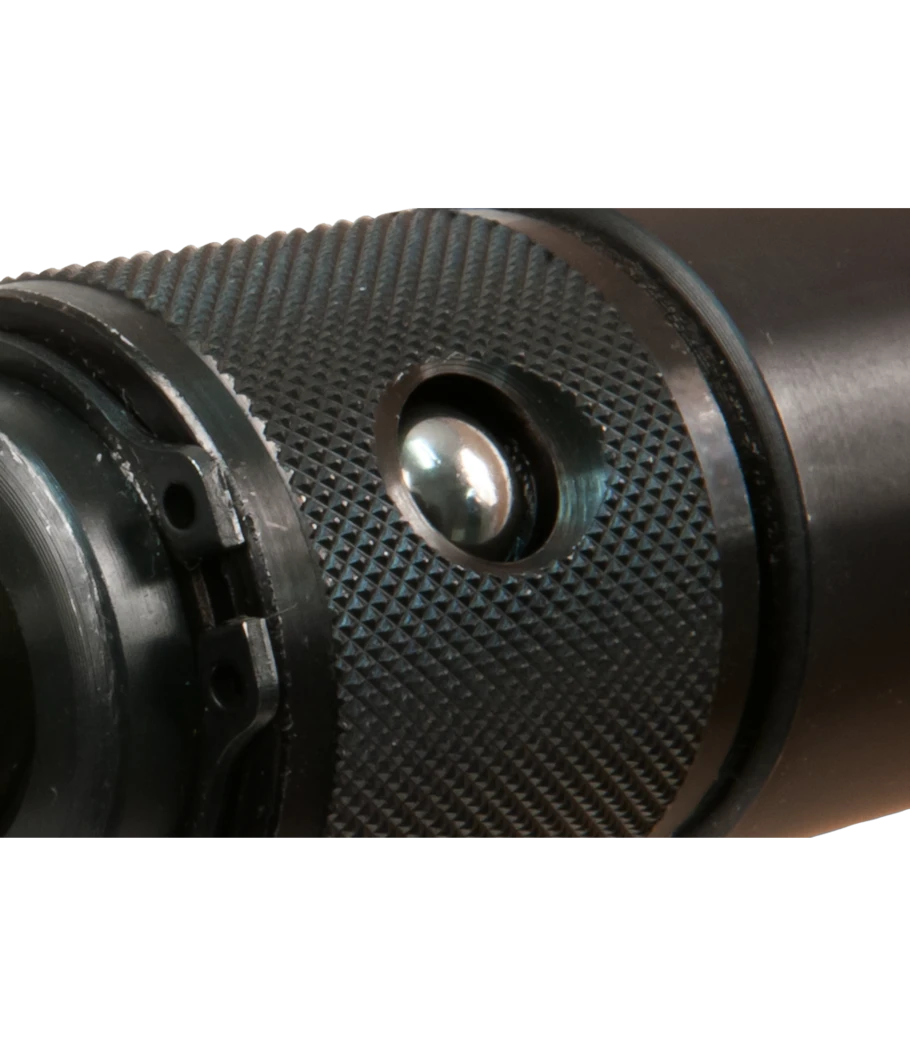

Ball Lock Retainer: Quickly and easily change chisels without hassle.
Heavy-Duty Construction: Built to withstand demanding work environments.

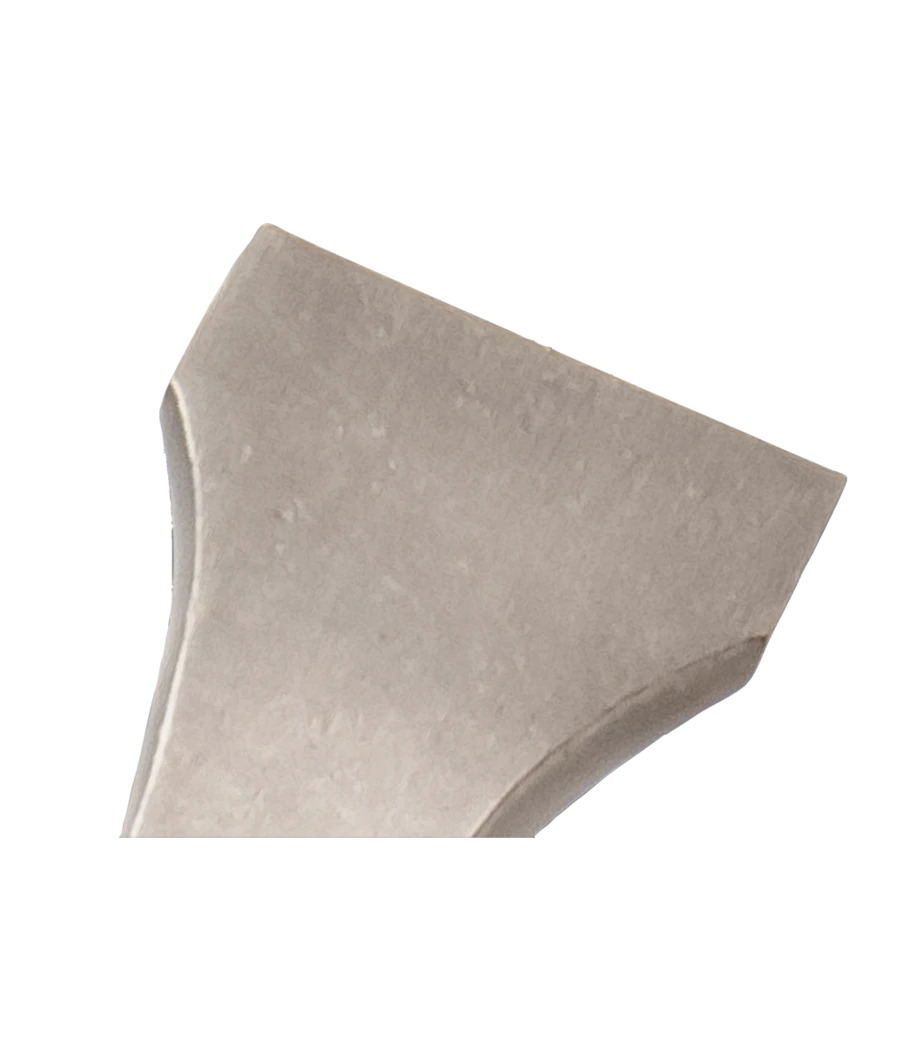

Wide-Angle Chisel: Effective removal of materials from surfaces.
Powerful Performance: Efficiently removes rust, paint, slag, and spatter.
Retainer Type: Ball Lock
Blows Per Minute: 4,000
Stroke Length: 7/8 inch
Weight: 3.81 lbs
Overall Length: 13.13 inches
Air Consumption: 4 CFM
Air Inlet: 1/4 NPT
Air Hose: 3/8 ID
Vibration Value: 14.5 m/s²
Sound Pressure: 90 dB(A)
Sound Power: 102 dB(A)
Safety First: Wear appropriate safety gear, including eye protection, ear protection, and a dust mask.
Connect Air Hose: Securely connect the 3/8 inch air hose to the 1/4 NPT air inlet.
Attach Chisel: Insert the desired chisel into the tool and secure it with the ball lock retainer.
Turn On Air Compressor: Ensure the air compressor is running and providing adequate air pressure (90 PSI).
Grip the Tool: Hold the flux chipper firmly with both hands.
Start Chipping: Gently apply the chisel to the surface and begin removing material.
Maintain Control: Use steady and controlled movements to prevent damage to the surface.
Regular Cleaning: Clean the tool and chisel after each use to prevent build-up.
BENEFITS OF USING JET JAT-820 R8 SERIES FLUX CHIPPER (505820):
Increased Efficiency: Quickly removes materials for faster project completion.
Improved Productivity: Durable construction and reliable performance for consistent results.
Versatility: Suitable for various surface preparation tasks.
Ball lock retainer for quick tool change
Heavy-duty, heat-treated barrels and pistons
Includes one wide-angle chisel
Designed for demanding industrial use
Efficient removal of rust, paint, slag, and spatter
Product identification
- Brand: Jet
- Model / MPN: 505820
