Spray gun details

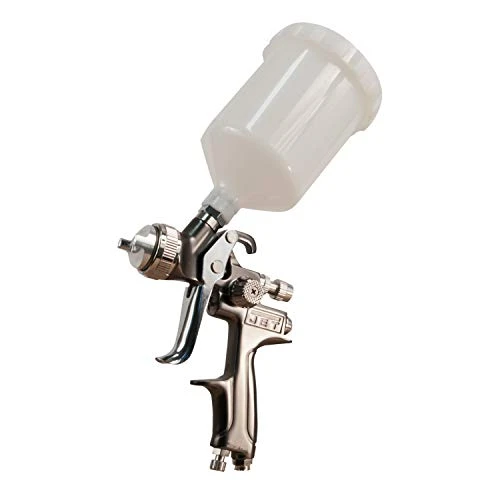

Jet JAT-500 Model HVLP Spray Gun (505500)
The Jet JAT-500 Model HVLP Spray Gun (505500) is a versatile tool designed for efficient and precise application of various coatings. Its high-volume, low-pressure technology ensures even coverage and minimal overspray, making it ideal for both DIY enthusiasts and professionals.
KEY FEATURES AND BENEFITS:
Efficient Spraying: HVLP technology maximizes material transfer, reducing waste and improving finish quality.
Comfortable Use: Lightweight and ergonomic design minimizes operator fatigue during extended use.
Durable Construction: Chrome-plated body and stainless steel components for long-lasting performance.
Versatile: Includes a 1.3mm nozzle with options for different finishes.
Easy Cleanup: Smooth surfaces and detachable parts allow for quick and easy cleaning.
Part Number: 505500
Air Consumption: 10 CFM
Air Inlet: 1/4 NPT
Air Pressure: 28 PSI
Cup Size: 600 cc
Fan Pattern Size: 280 mm
Fluid Output: 170 cc/min
Nozzle Size: 1.3 mm
Overall Length: 7.9 inches
Gross Weight: 2.05 lbs
Prepare the spray gun: Clean all parts thoroughly.
Assemble the spray gun: Follow the user manual for assembly.
Fill the cup: Add the desired coating to the 600 cc cup.
Connect the air hose: Attach the hose to the spray gun and adjust the air pressure to the recommended setting.
Practice spraying: Test the spray pattern and trigger control on a test surface.
Maintain distance: Keep a consistent distance between the spray gun and the surface for even coverage.
Overlap passes: Slightly overlap spray passes to ensure complete coverage.
Clean the spray gun: Clean immediately after use to prevent paint buildup.
BENEFITS OF USING Jet JAT-500 Model HVLP Spray Gun (505500):
Achieve professional-quality finishes with ease.
Save time and material with efficient spray patterns.
Reduce cleanup time due to minimal overspray.
Enjoy comfortable operation with the ergonomic design.
Benefit from durable construction for long-lasting performance.

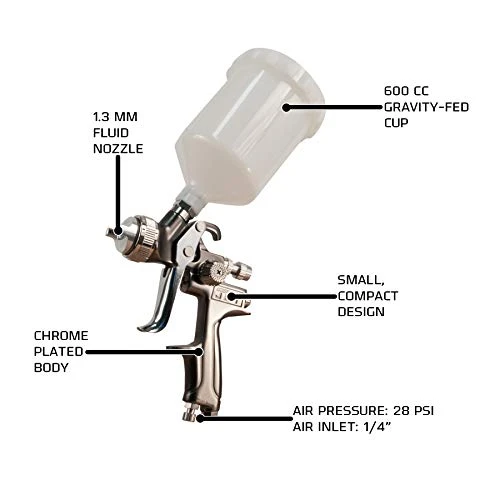

HVLP technology for efficient spraying
Chrome-plated body for easy cleaning

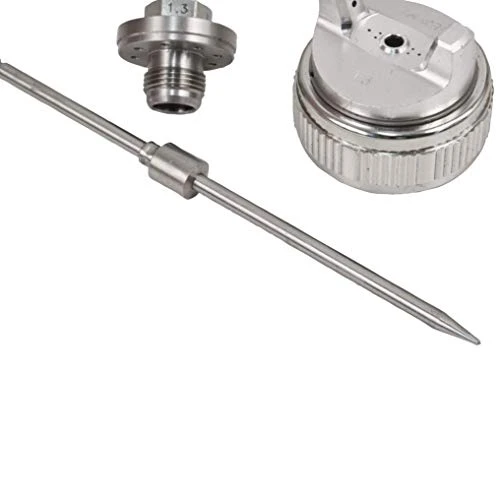

Stainless steel fluid tips and needles
1.3 mm fluid nozzle (additional nozzles available)
Lightweight and ergonomic design

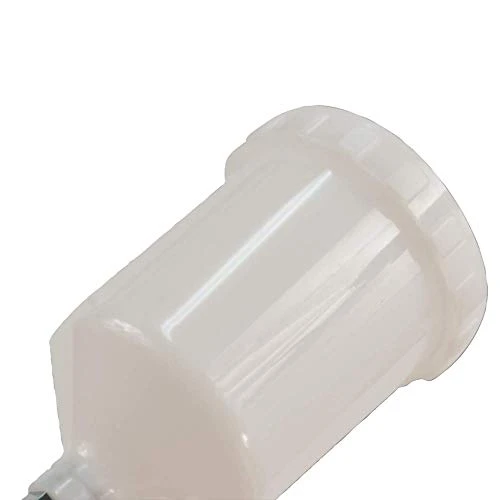

Gravity feed 600 cc cup included
Product identification
- Brand: Jet
- Model / MPN: 505500
