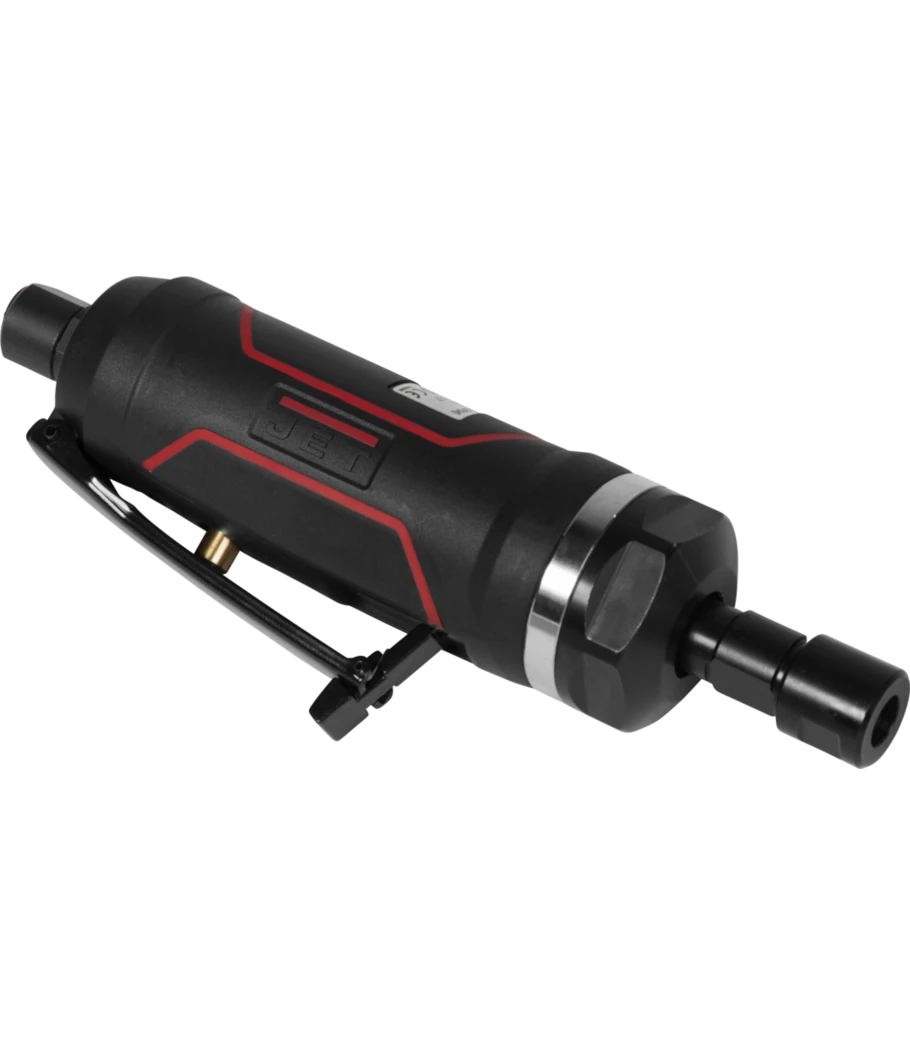

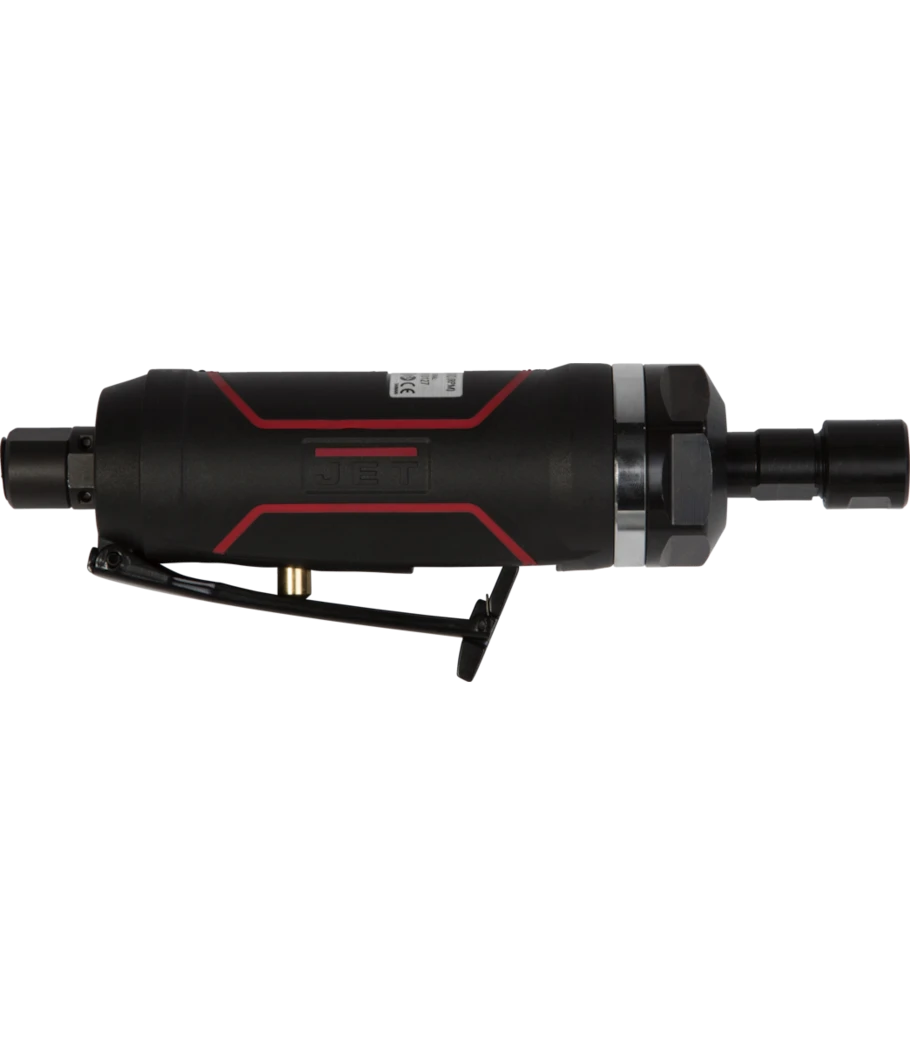

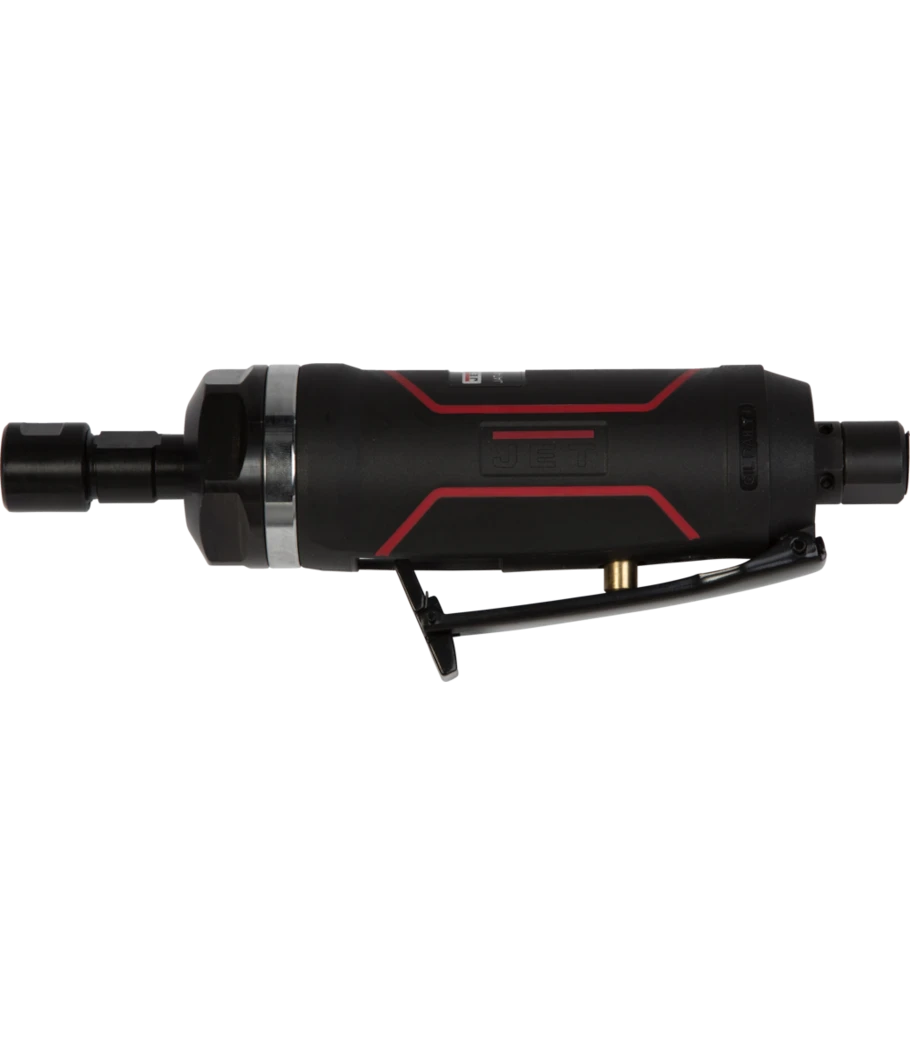

Jet JAT-480 R12 1 HP Industrial Die Grinder (505480)
The Jet JAT-480 R12 1 HP Industrial Die Grinder (505480) is a robust industrial die grinder built for demanding work environments. Packed with a powerful 1 HP motor, this tool delivers exceptional performance without compromising on durability. Designed for those long, intense workdays, it's engineered to withstand the toughest conditions.
KEY FEATURES AND BENEFITS:
Powerful 1 HP Motor: Provides ample power for heavy-duty grinding and polishing tasks.
Impact-Resistant Composite Housing: Reduces tool weight, minimizing user fatigue.
Sealed Ball Bearing Design: Protects internal components from contaminants, ensuring smooth operation.
Variable-Speed Throttle: Offers precise control over grinding speed.
360° Rotating Air Inlet: Prevents hose tangles for enhanced safety and convenience.
1/4" Erickson Collet: Accepts a wide range of grinding and polishing accessories.
Rear Facing Exhaust: Improves user comfort by directing air away from the operator.
Body Type: Full, Straight
Collet Size: 1/4 inch
Free Speed: 20,000 RPM
Horsepower: 1 HP
Air Pressure: 90 PSI
Air Inlet: 1/4 inch NPT
Air Hose: 3/8 inch ID
Air Consumption: 5.3 CFM
Sound Power: 98 dB(A)
Sound Pressure: 87 dB(A)
Vibration Value: 0.46 m/s²
Overall Length: 7.9 inches
Inspect the Tool: Before use, carefully examine the die grinder for any damage or wear.
Connect the Air Hose: Securely attach the air hose to the 360° rotating air inlet.
Install the Accessory: Choose the appropriate grinding or polishing accessory and securely tighten it into the 1/4" Erickson collet.
Adjust the Speed: Utilize the variable-speed throttle to set the desired grinding speed.
Start the Grinder: Engage the trigger to start the tool.
Maintain Control: Hold the die grinder firmly with both hands and guide it along the work surface.
Safety First: Wear appropriate safety gear, including eye protection, ear protection, and a dust mask.
BENEFITS OF USING JET JAT-480 R12 1 HP INDUSTRIAL DIE GRINDER (505480):
Increased Productivity: Powerful motor and variable speed control enhance efficiency.
Improved Comfort: Lightweight design and rear exhaust reduce user fatigue.
Enhanced Durability: Built to withstand demanding work conditions.
Versatility: Accepts various grinding and polishing accessories for diverse applications.
Safety: 360° rotating air inlet and safety features minimize risks.
Powerful 1 HP motor
Impact-resistant composite housing
Sealed ball bearing design
Variable-speed throttle with safety lock
360° rotating air inlet
1/4" Erickson collet
Rear facing exhaust
Product identification
- Brand: Jet
- Model / MPN: 505480
