7 inch angle grinder details

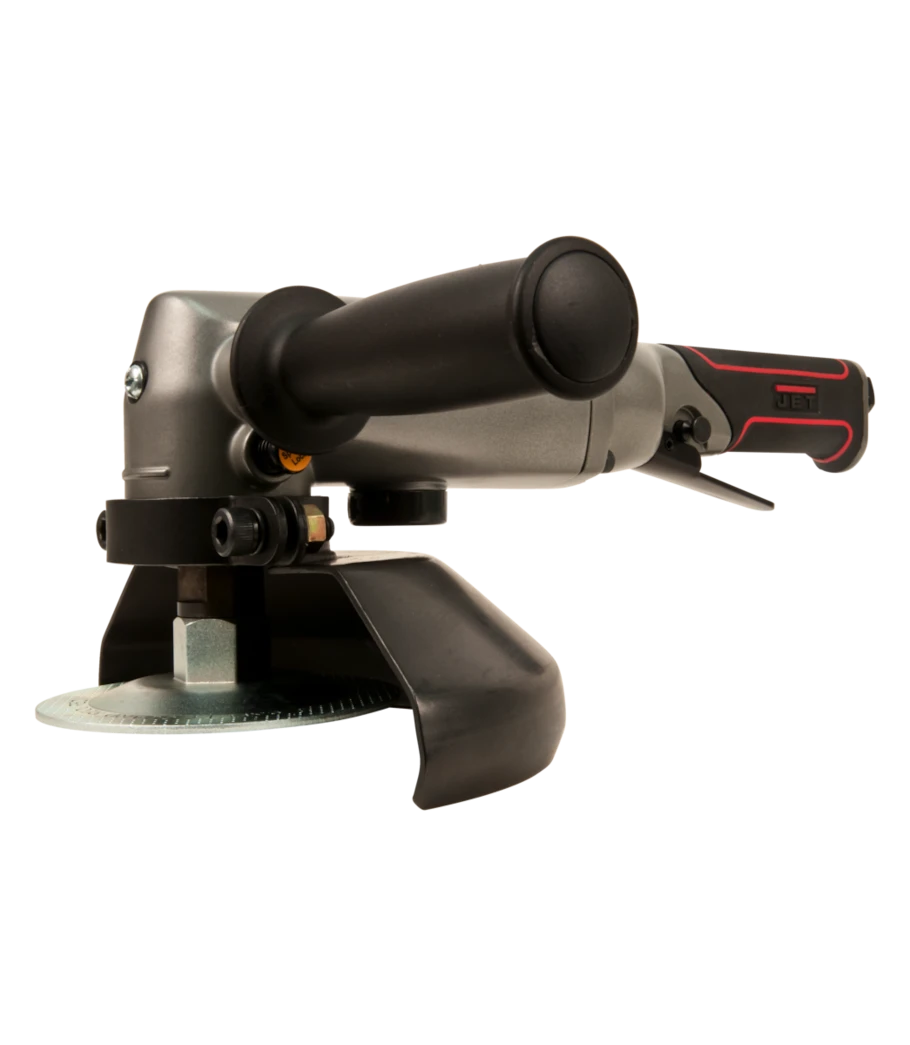

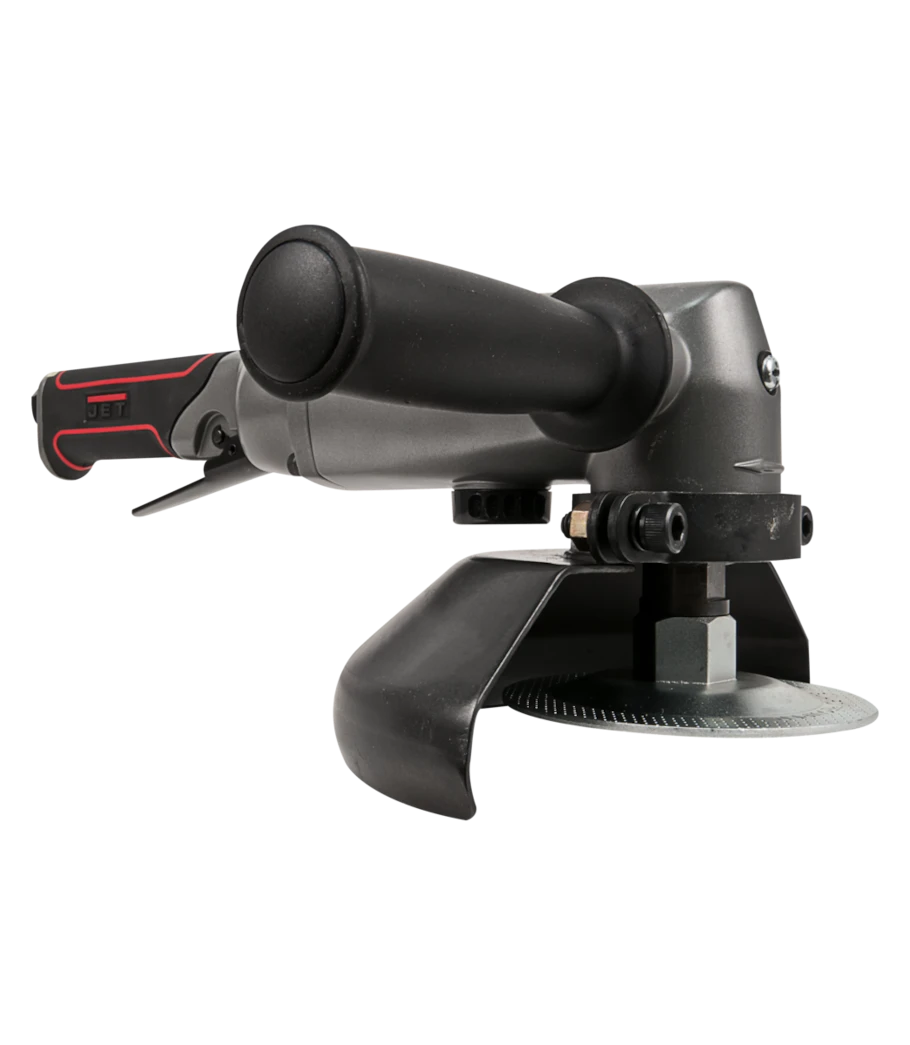

Jet JAT-452 R8 Series 7 Inch Angle Grinder (505452)
The Jet JAT-452 R8 Series 7 Inch Angle Grinder (505452) is a robust tool designed for efficient and safe grinding, cutting, and polishing tasks. Built for heavy-duty applications, this angle grinder delivers exceptional performance and durability.
KEY FEATURES AND BENEFITS:
Powerful Performance: Equipped with a 1.3 HP motor, it provides ample power to tackle demanding jobs.
Enhanced Safety: The adjustable swivel guard and safety throttle lock prioritize user protection.

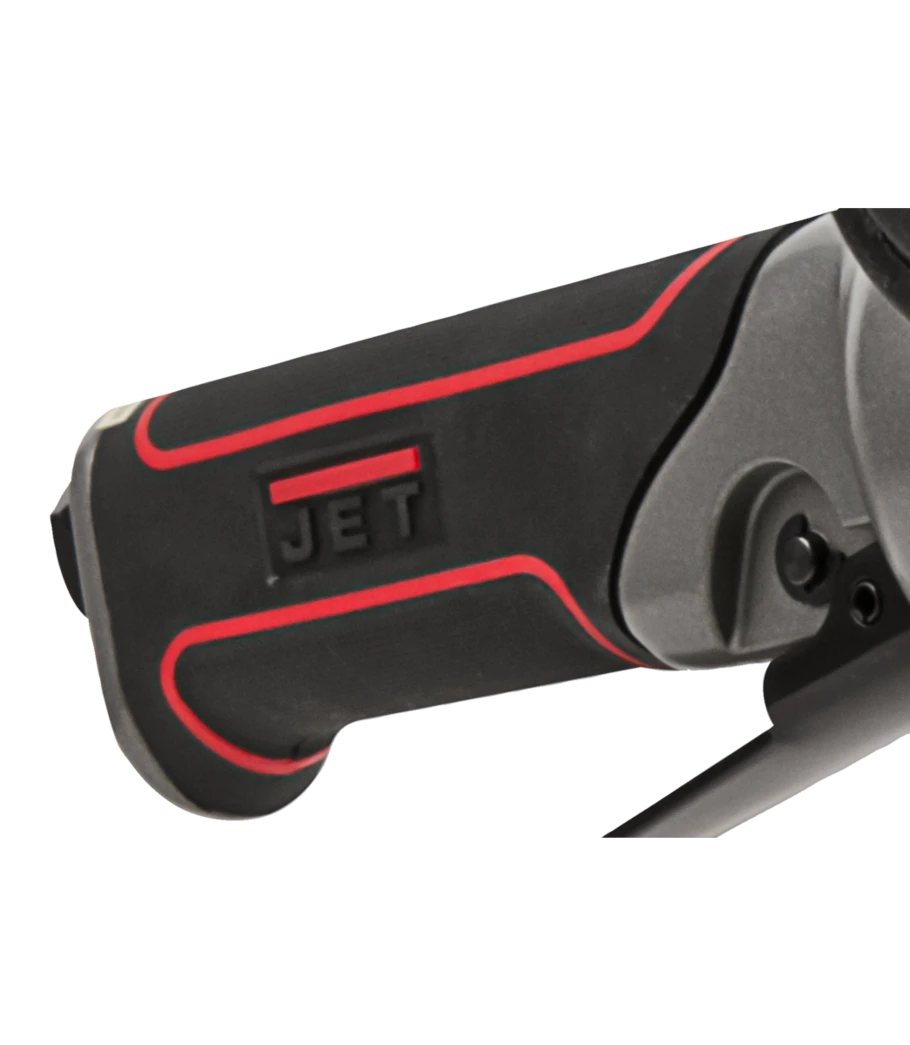

Comfortable Operation: The ergonomic grip reduces vibration and fatigue, ensuring comfortable extended use.
Efficient Workflow: Tool-less wheel changes and variable speed control optimize productivity.
Durable Construction: Built with rugged ball-bearing design for long-lasting performance.
Wheel Size: 7 x 7/8 x 1/4 inches
Free Speed: 8,500 RPM
Horsepower: 1.3 HP
Overall Length: 13-3/4 inches
Air Consumption: 6 CFM
Noise Level: 104 dB(A)
Vibration Value: 4.3 m/s²
Air Inlet: 3/8 inch NPT
Air Hose: 3/8 inch ID
Air Pressure: 90 PSI
Spindle Thread: 5/8"- 11 UNC
Inspect the Angle Grinder: Check for any damage or wear before use.
Attach the Grinding Wheel: Securely fasten the desired grinding wheel to the spindle using the spindle lock.
Adjust the Guard: Position the adjustable guard to protect the user from flying debris.
Connect Air Hose: Connect the air hose to the angle grinder's air inlet and ensure a secure connection.
Turn on Air Compressor: Start the air compressor to provide the necessary air pressure.
Grip the Angle Grinder: Hold the angle grinder firmly with both hands, using the auxiliary handle for support.
Engage the Throttle: Gradually increase the speed using the variable-speed throttle.
Perform Grinding Task: Apply the angle grinder to the workpiece with steady and controlled movements.
Release Throttle and Turn Off Air Compressor: When finished, release the throttle, and turn off the air compressor.
Disconnect Air Hose: Disconnect the air hose from the angle grinder.
BENEFITS OF USING JET JAT-452 R8 SERIES 7 INCH ANGLE GRINDER (505452):
Increased efficiency and productivity due to powerful performance and user-friendly features.
Enhanced safety with adjustable guard and safety throttle lock.
Improved comfort with ergonomic design and reduced vibration.
Durability and longevity thanks to rugged construction.
Versatility for various grinding, cutting, and polishing applications.
7-inch wheel size
Adjustable swivel guard

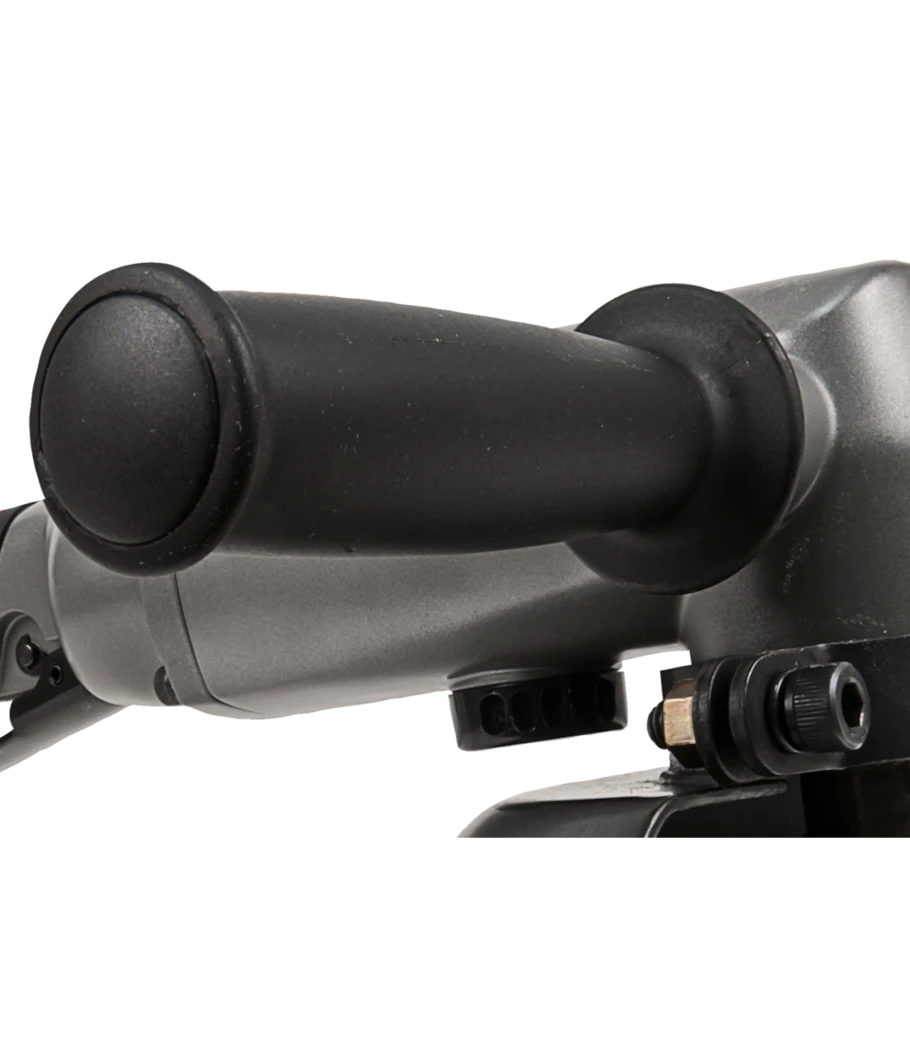

Two-position auxiliary handle
Rugged ball-bearing construction
Variable-speed throttle with safety lock
Tool-less wheel guard
Precision spiral bevel gears
Tapered angle gear housing
Lightweight aluminum construction
Product identification
- Brand: Jet
- Model / MPN: 505452
Jet angle grinder: see the listed specifications for this model.
