Angle grinder details

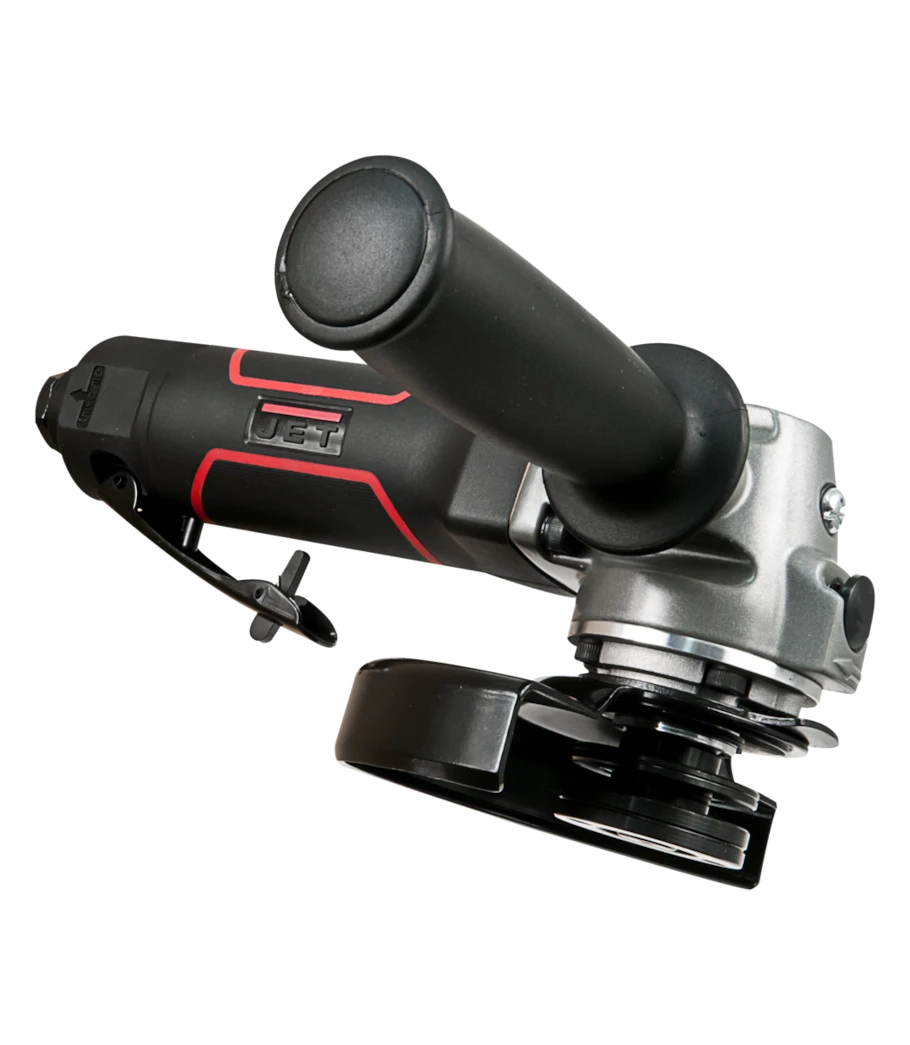

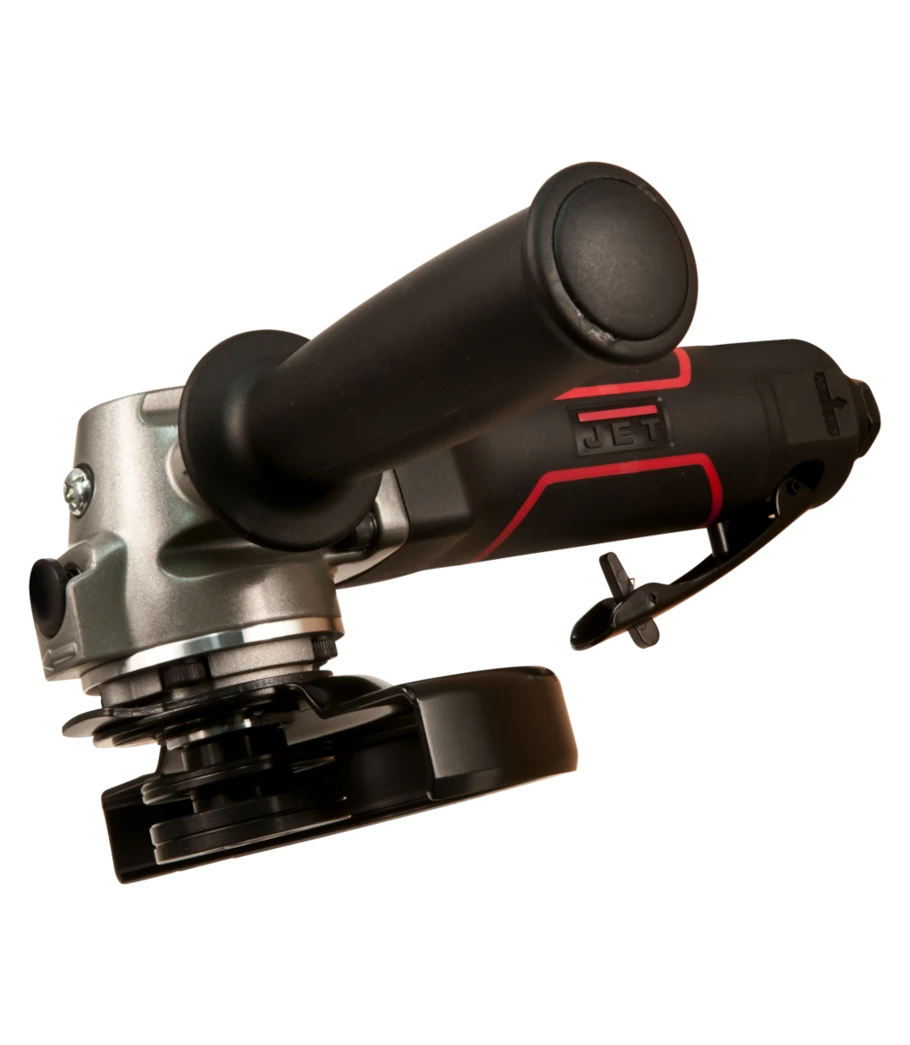

Jet JAT-451 12000 RPM 5" Angle Grinder (505451)
The Jet JAT-451 12000 RPM 5" Angle Grinder (505451) is a versatile tool designed for various tasks such as grinding, cutting, and polishing. Built with durability and user comfort in mind, this angle grinder offers efficient performance and safety features.
KEY FEATURES AND BENEFITS
Powerful and Efficient: Delivers 0.9 HP and 12,000 RPM for fast and effective material removal.
Safe Operation: Adjustable wheel guard with 9 preset positions and safety throttle lock prevent accidents.
Comfortable Use: Ergonomic handle design reduces hand fatigue during extended use.
Durable Construction: Precision spiral bevel gears and rugged ball-bearing design ensure long-lasting performance.
Dimensions: 28.7 cm x 15 cm x 10.9 cm
Weight: 2291 g (4 lbs)
Air Consumption: 4 CFM
Air Hose: 3/8" ID
Air Inlet: 1/4" NPT
Air Pressure: 90 PSI
Speed: 12,000 RPM
Spindle Thread: 3/8"-24 UNF
Wheel Type: Type 27
Inspect the Angle Grinder: Check for any damage or wear.
Attach the Grinding Wheel: Securely tighten the grinding wheel using the spindle lock.
Adjust the Wheel Guard: Position the wheel guard according to the task.
Connect to Air Compressor: Ensure a secure connection between the angle grinder and the air hose.
Turn On the Air Compressor: Gradually increase air pressure to the recommended level.
Engage the Throttle: Slowly increase the speed using the variable-speed throttle.
Perform the Task: Use the angle grinder with firm but controlled movements.
Turn Off the Angle Grinder: Release the throttle and wait for the grinder to stop completely before disengaging the air supply.
BENEFITS OF USING JET JAT-451 12000 RPM 5" ANGLE GRINDER (505451)
Increased productivity due to powerful performance.
Improved safety with adjustable wheel guard and safety throttle lock.
Enhanced comfort with ergonomic handle design.
Longer tool life due to durable construction.
Versatility for various applications.

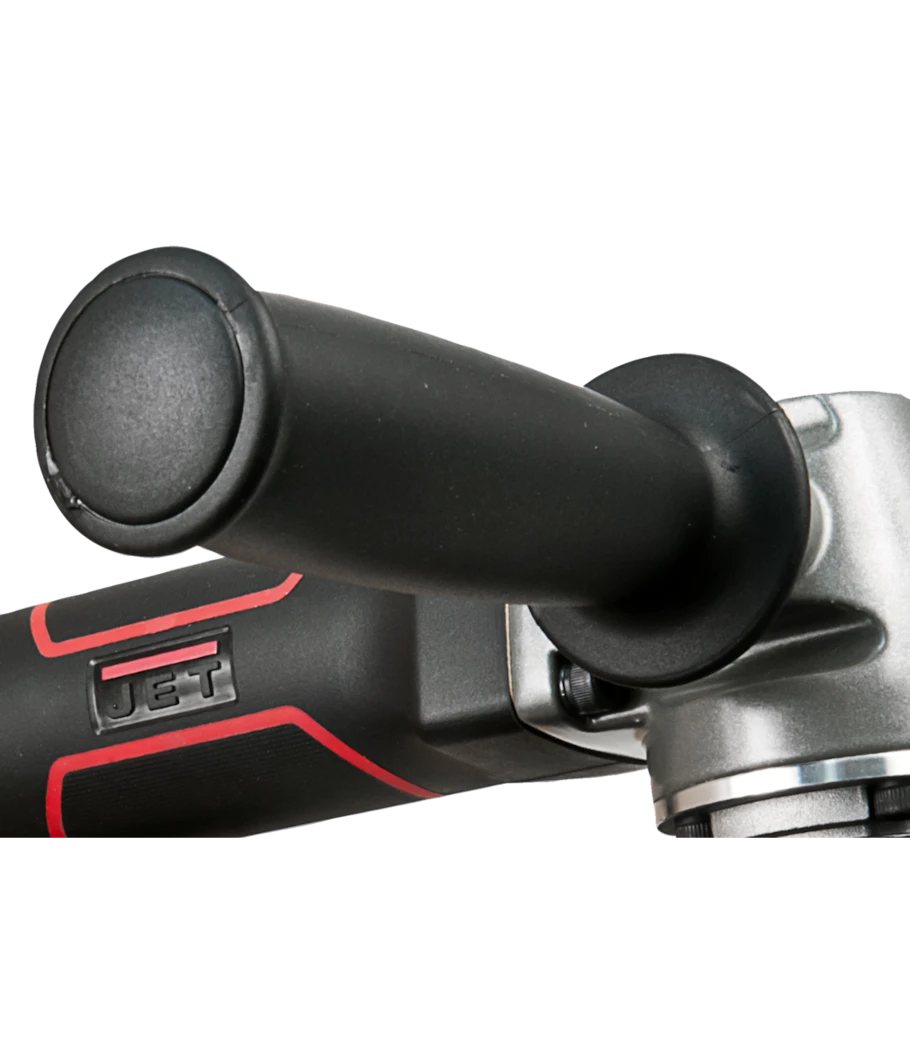

Two-position ergonomic handle
Adjustable wheel guard with 9 preset positions
Variable-speed throttle
Safety throttle lock
Precision spiral bevel gears
Rugged ball-bearing design
Tapered angle gear housing
Product identification
- Brand: Jet
- Model / MPN: 505451
