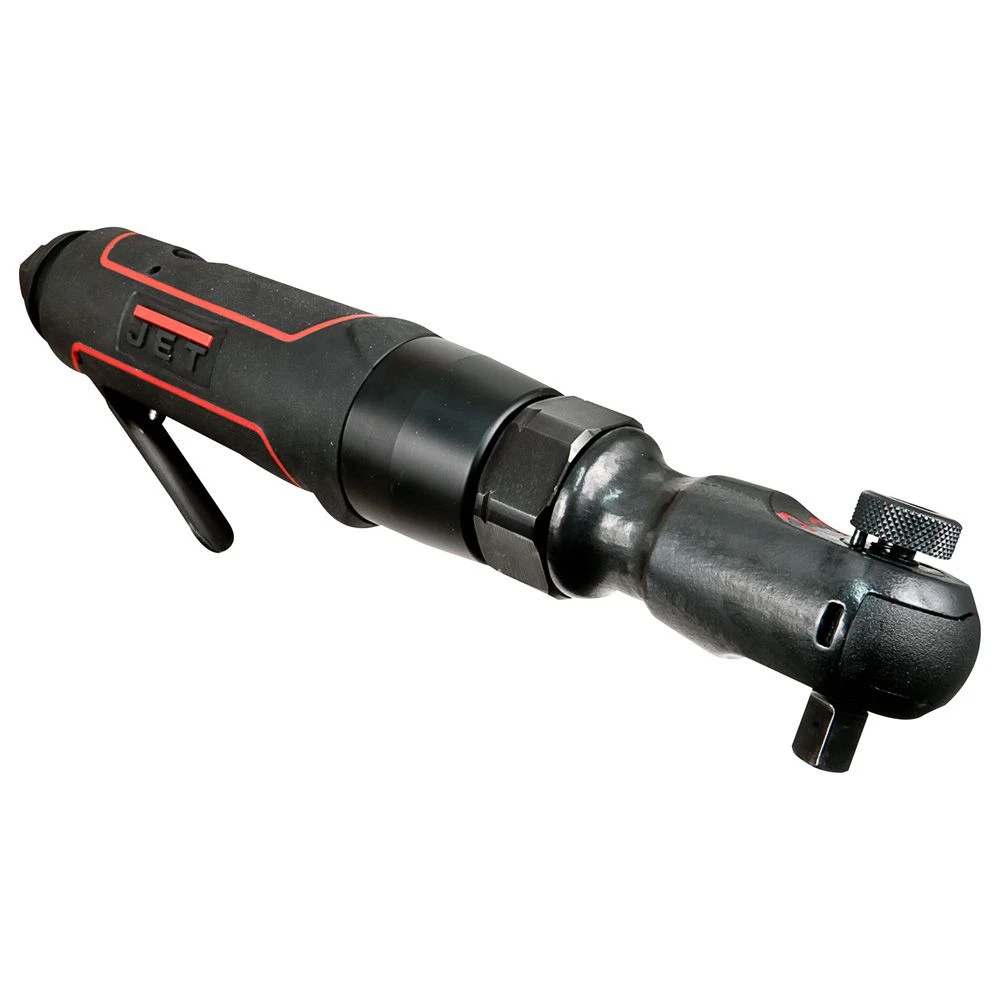

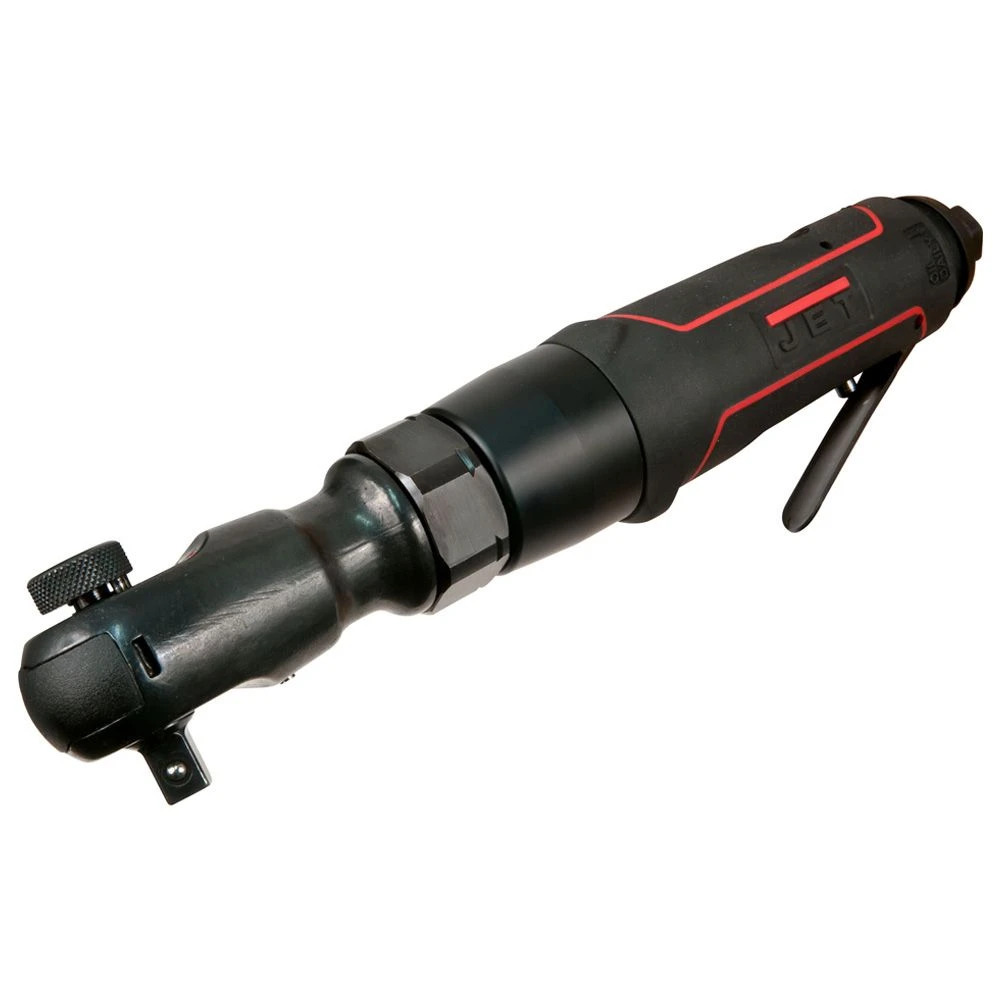

Jet JAT-323 505323 1/2-Inch Impact Air Ratchet
Jet JAT-323, part number 505323, is an R12 Series 1/2-inch-drive pneumatic impact ratchet. The working torque range is listed as 25–70 ft-lb, with 600 RPM free speed. A sealed head, steel-ball socket retainer and 360-degree swivel air inlet are described. Match the air supply to the listed 90 PSI and 4 CFM requirements rather than treating the 100 ft-lb headline as a calibrated working setting.
Specifications and included details
- 1/2-inch square drive; listed working torque 25–70 ft-lb.

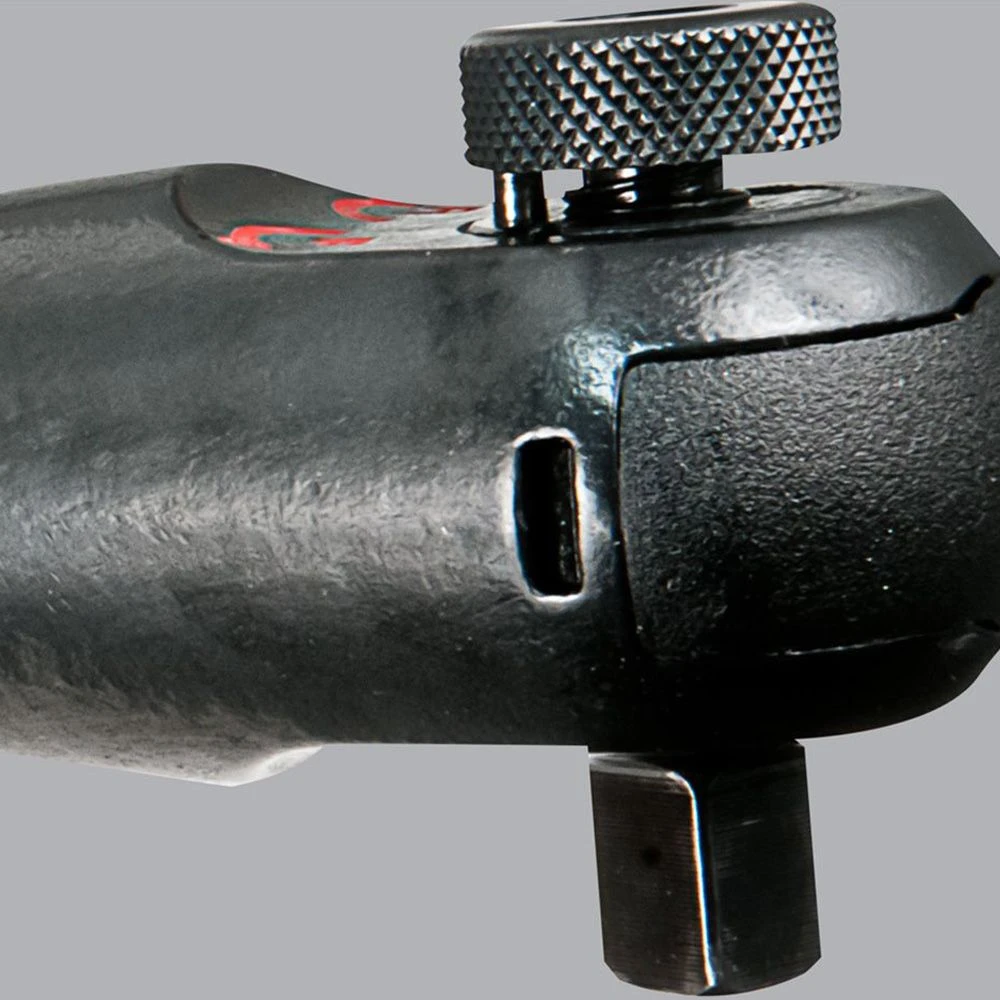

- Free speed: 600 RPM; sealed head and steel-ball socket retainer.
- 360-degree swivel air inlet; 1/4-inch NPT connection.
- Listed air setup: 90 PSI, 4 CFM and minimum 3/8-inch-ID hose.
Before ordering
The supplied text qualifies the 100 ft-lb figure as a possible breakaway value without confirming the test definition. Confirm that rating when comparing output; use the clearly listed working range and air requirements for selection.
Product questions and answers
What is the working torque range of JAT-323?
The specifications list 25–70 ft-lb. The separate 100 ft-lb headline is not established here as the working range.
Does it have a swivel air inlet?
Yes. A 360-degree swivel inlet is listed, with a 1/4-inch NPT connection.
How does it differ from the 3/8-inch JAT-322?
JAT-323 uses a 1/2-inch square drive. JAT-322 is listed with a 3/8-inch drive; choose the interface that matches your sockets.
