JET JAT-108 One-Inch Pistol-Grip Air Impact Wrench

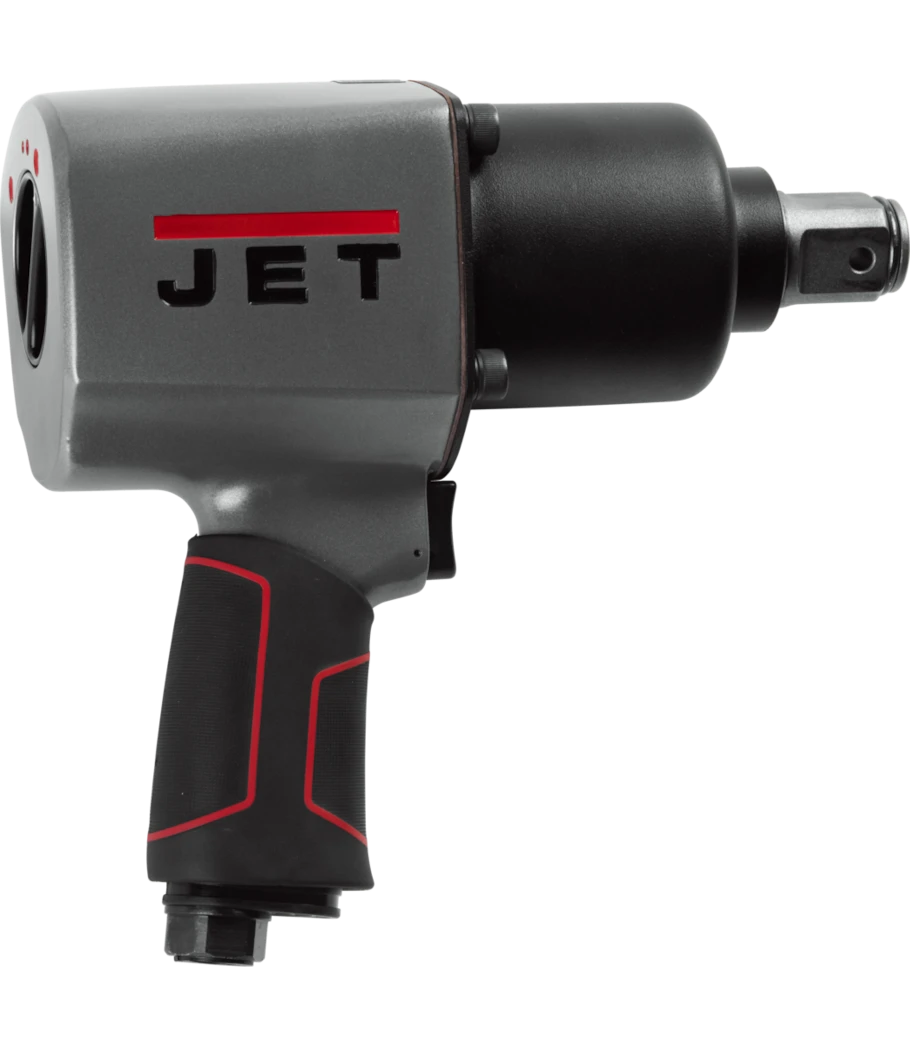

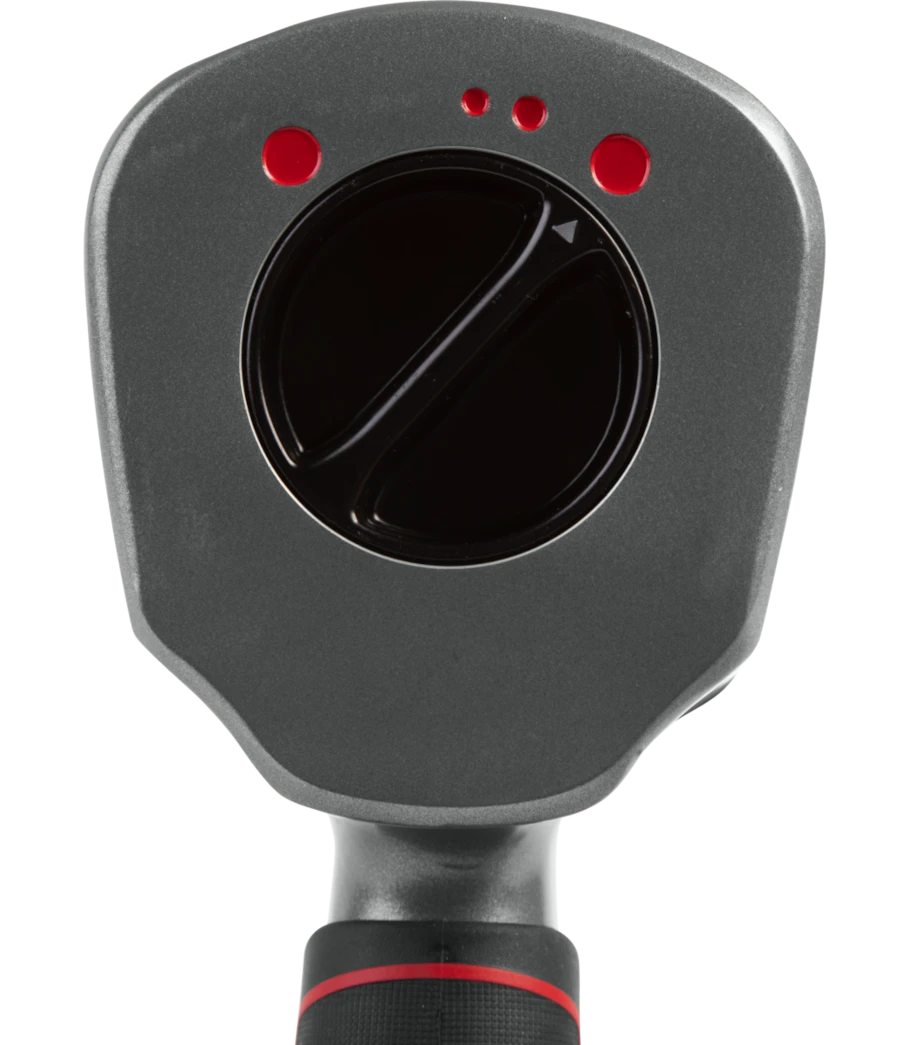

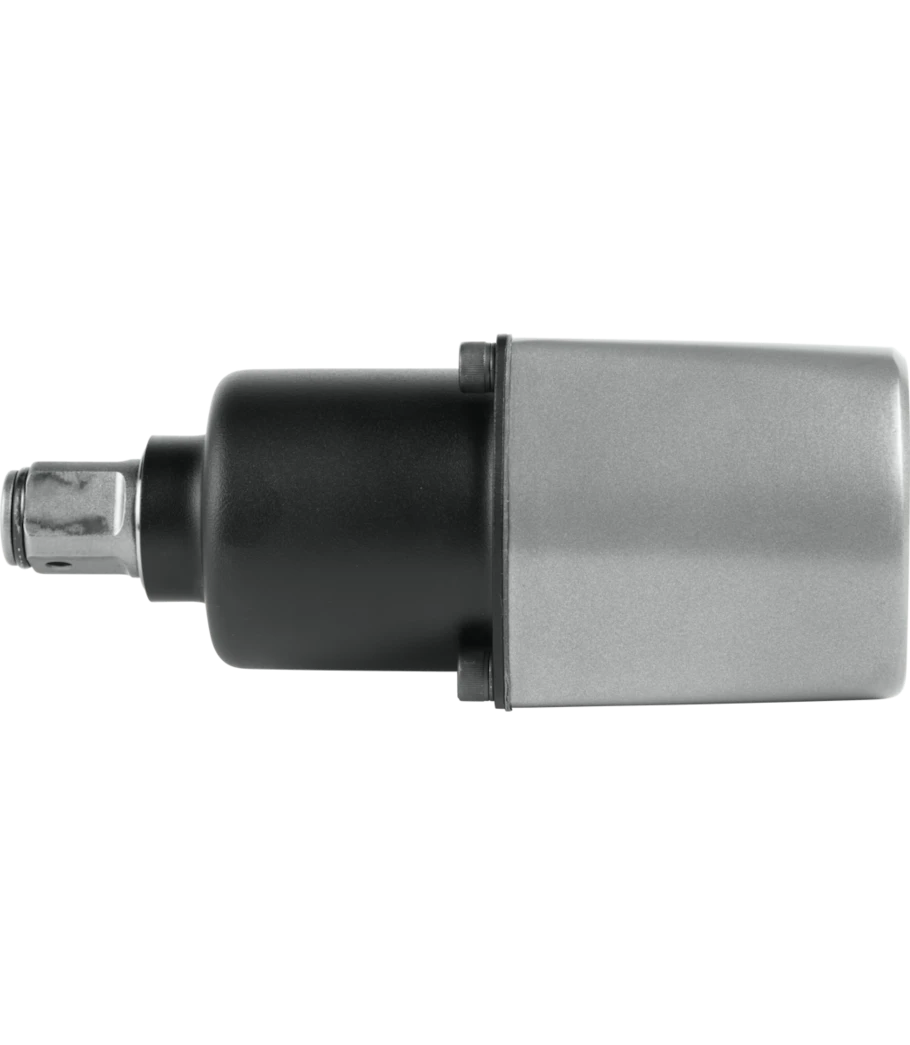

JET JAT-108 505108 is a one-inch pneumatic impact wrench with a pistol grip, aluminum body and steel clutch housing. Its twin-hammer mechanism and forward power settings serve larger-fastener work. The one-inch socket drive should be distinguished from the separate 3/8-inch NPT air inlet when selecting accessories.
Specifications and included details

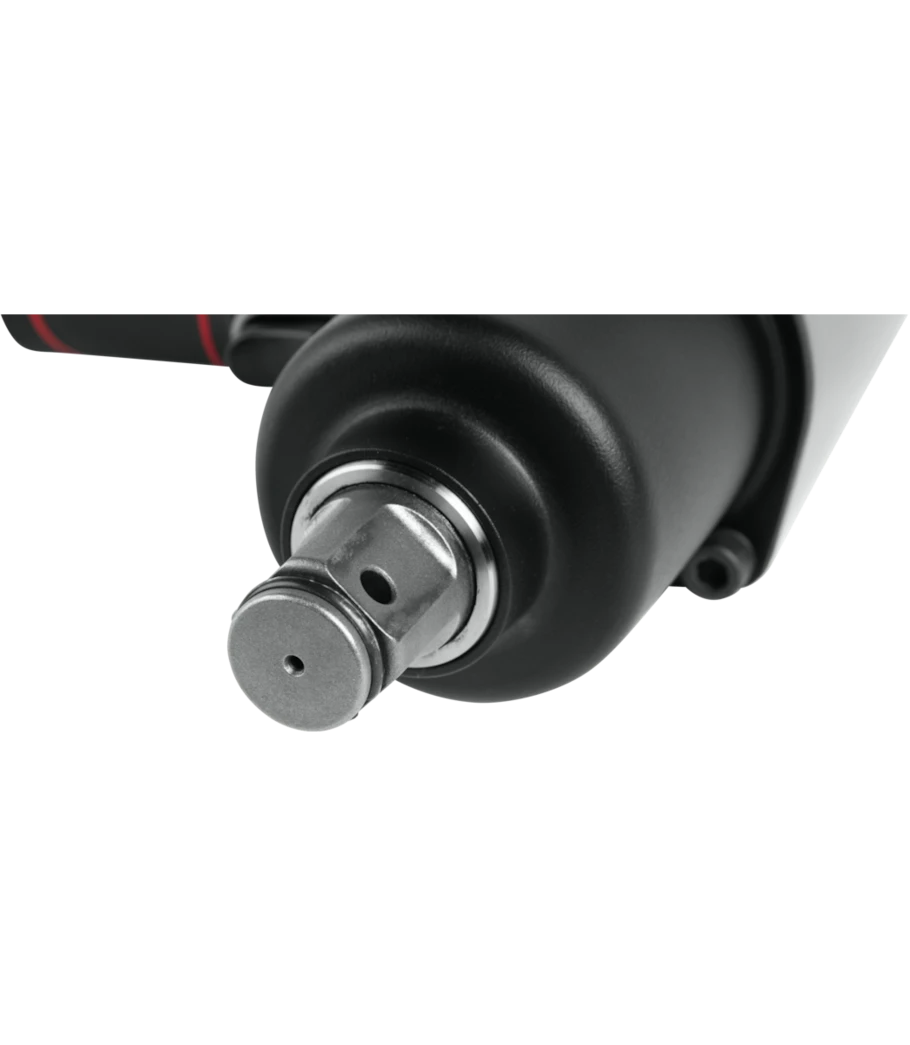

- One-inch drive with twin-hammer impact mechanism.
- Working torque 200–1,300 ft-lb; maximum torque 1,500 ft-lb.
- Listed free speed 5,500 RPM and air consumption 7 CFM.
- 3/8-inch NPT air inlet; listed length 9 inches and weight 11 lb.
Before ordering
Confirm the compressor's delivered flow and the manufacturer's operating pressure, which is not specified here. Use suitable impact-rated sockets and verify final fastener torque by the required method. Air fittings and sockets are not established as included by an itemized inventory.
Product questions and answers
Is the air inlet also one inch?
No. One inch is the drive size; the inlet is listed as 3/8-inch NPT.
Is maximum torque the same as the working range?
No. The working range is listed as 200–1,300 ft-lb, with 1,500 ft-lb maximum torque.
Can the trigger set a calibrated final torque?
No calibrated torque-setting function is established. Verify final torque with the specified method.
