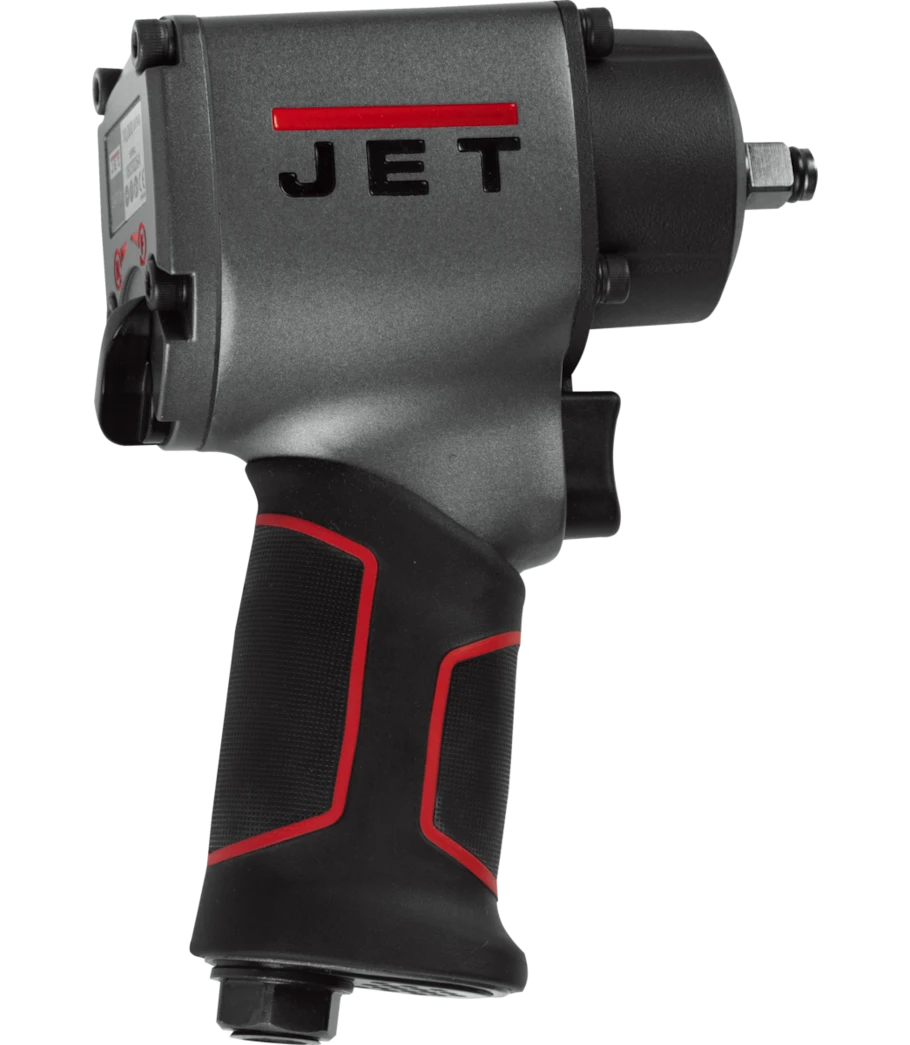

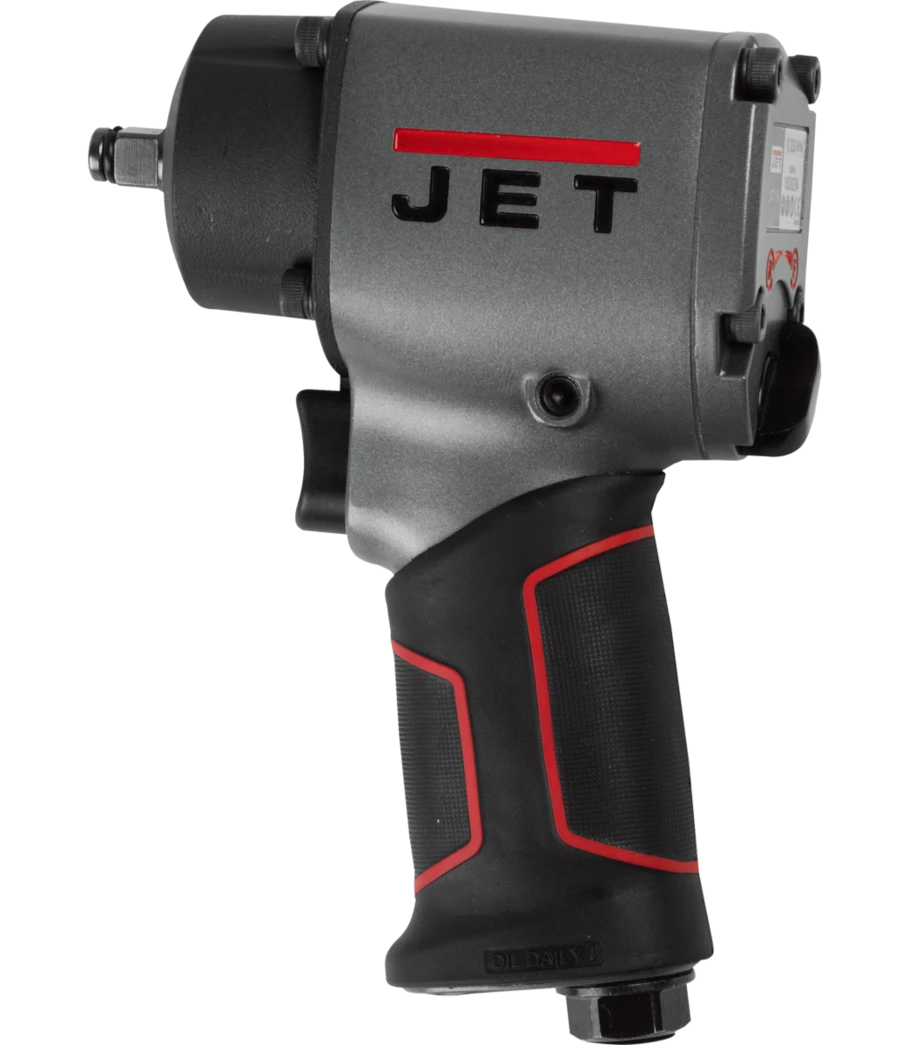

Jet JAT-106 3/8 Inch Compact Impact Wrench (505106)
The Jet JAT-106 3/8 Inch Compact Impact Wrench (505106) is a powerful yet portable tool designed for professionals. Built to withstand daily, heavy-duty use, it offers a balance of performance and comfort.
KEY FEATURES AND BENEFITS:
Twin Hammer Impact Mechanism: Provides consistent and powerful performance for efficient fastening and removal.
Compact Design: At 4-5/7 inches long, it easily accesses tight spaces, making it ideal for various applications.
Ergonomic Grip: Reduces hand fatigue and vibration, ensuring comfortable use during extended periods.
Lightweight Aluminum Construction: Improves tool maneuverability and reduces user fatigue.
3-Position Power Settings: Offers adjustable power to match different fastening requirements.
Square Drive: 3/8 inch
Working Torque: 25-350 ft-lbs
Max Torque: 500 ft-lbs
Free Speed: 10,000 RPM
Blows Per Minute: 1,500 BPM
Air Consumption: 5 CFM
Air Inlet: 1/4 inch NPT
Air Hose Size: 3/8 inch
Overall Length: 4-2/7 inches
Weight: 3-1/5 lbs
Sound Pressure: 98 dB(A)
Sound Power: 87 dB(A)
Vibration Value: 4.9 m/s²
Connect the air hose to the 1/4 inch NPT air inlet of the impact wrench.
Ensure the tool is securely fastened to the air compressor.
Set the desired power level using the 3-position power selector.
Position the impact socket onto the fastener.
Pull the trigger to activate the tool. For reverse, pull the trigger again.
Once the fastener is tightened or loosened, release the trigger.
BENEFITS OF USING JET JAT-106 3/8 INCH COMPACT IMPACT WRENCH (505106):
Increased efficiency due to powerful performance and compact design.
Reduced user fatigue through ergonomic grip and lightweight construction.
Versatility with adjustable power settings to handle various tasks.
Durability built for heavy-duty use in demanding environments.
Twin Hammer impact mechanism
Lightweight aluminum construction
3-position power settings
500 ft-lbs of maximum torque
Product identification
- Brand: Jet
- Model / MPN: 505106
Jet impact wrench: see the listed specifications for this model.
