JET JAT-100 3/8-Inch Butterfly Air Impact Wrench
JET JAT-100 505100 is a compact butterfly-style pneumatic impact wrench for smaller-fastener work. Its horizontal body differs from a conventional pistol-grip wrench, while the 360-degree swivel inlet permits different hose positions. Listed working torque is 5–50 ft-lb, distinct from the 75 ft-lb maximum.
Specifications and included details
- 3/8-inch drive and butterfly-style control layout.
- Listed working torque 5–50 ft-lb; maximum torque 75 ft-lb.
- Free speed 12,000 RPM; air consumption 3 CFM.
- 360-degree swivel inlet, 1/4-inch NPT connection.
- Listed length 5-7/8 inches and weight 2 lb.
Before ordering
Check clearance with the socket attached and the manufacturer's required operating pressure. A regulator does not make this a calibrated torque wrench. No socket set, air hose or numerical supply-pressure limit is itemized here.
Product questions and answers
How is the shape different from a pistol-grip wrench?

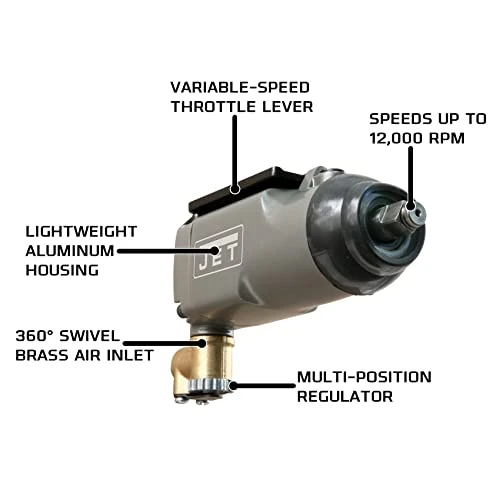

It uses a compact horizontal butterfly-style body, visible in the product image.
Is 75 ft-lb the listed working range?
No. The working range is 5–50 ft-lb; 75 ft-lb is the maximum figure.
Can the hose connection swivel?
Yes. A 360-degree swivel air inlet is explicitly listed.
