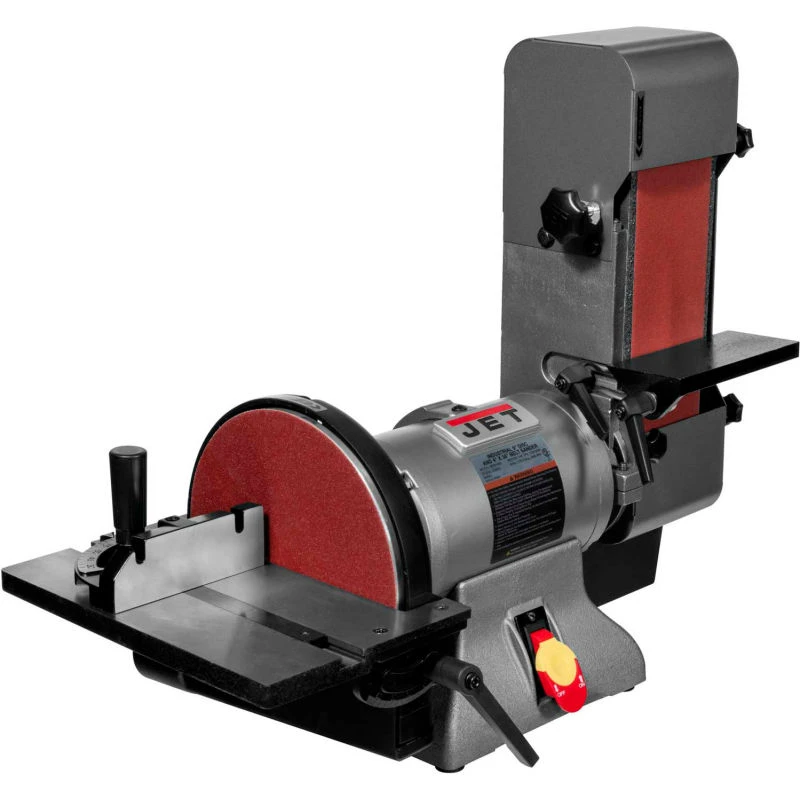

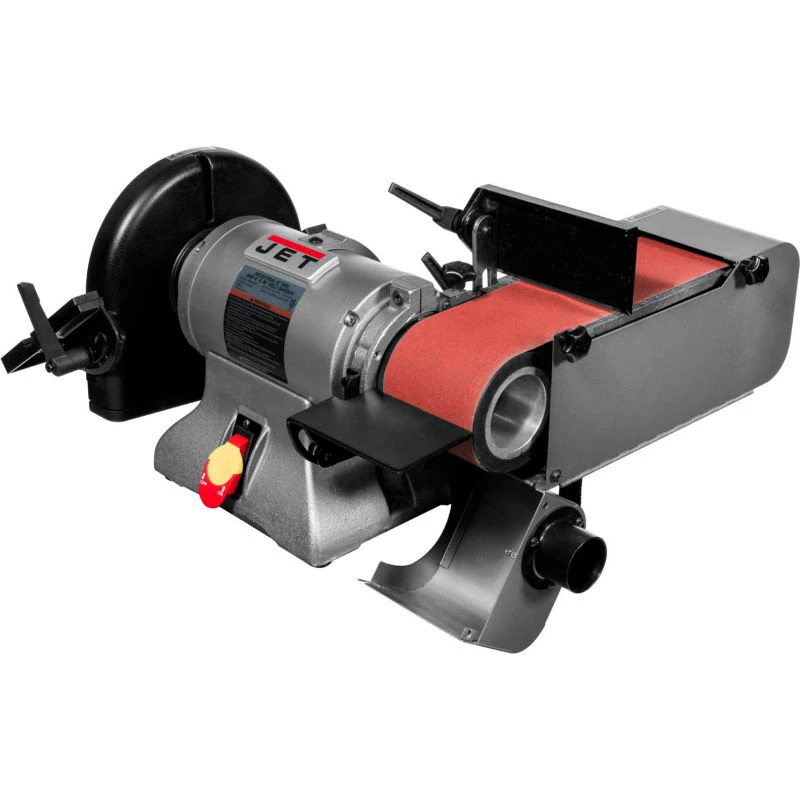

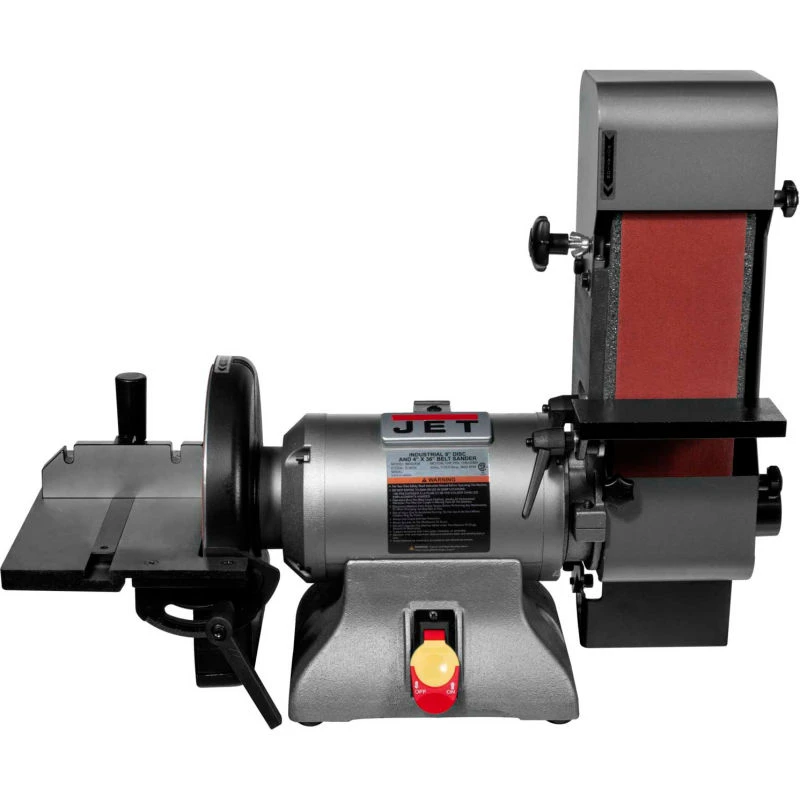

Jet IBDG-436 1HP Bench 4×36" Belt & 9" Disc Sander (578634)
The Jet IBDG-436 1HP Bench 4×36" Belt & 9" Disc Sander (578634) is a heavy-duty industrial tool designed for efficient and precise material removal. This versatile machine combines a 4×36 inch belt sander with a 9 inch disc grinder, making it ideal for a wide range of applications.
KEY FEATURES AND BENEFITS:
Powerful Performance: Equipped with a 1 HP motor, it delivers ample power for tackling tough materials.
Versatile Grinding: The combination of belt and disc sanding options provides flexibility for various tasks.
Durable Construction: Cast iron base and components ensure stability and longevity.
User-Friendly Design: Tool-less adjustments and easy belt tracking simplify operation.
Safety Features: Includes safety switch, full guarding, and dust collection ports for a safe working environment.
Model Number: IBDG-436
Belt Size: 4×36 inches
Disc Diameter: 9 inches
Belt Speed: 3769 SFPM
Dust Port Size: 2 inches
Dimensions (parallel): 25-3/4 x 21-3/4 x 11-3/4 inches
Dimensions (vertical): 25-3/8 x 21-3/4 x 20-3/4 inches
Weight: 73 lbs (net), 92 lbs (gross)
Set Up: Place the sander on a stable work surface. Ensure proper ventilation and dust collection.
Install Belt: Open the belt covers, install the desired belt, and tighten the tensioners.
Install Disc: Securely attach the desired grinding disc to the spindle.
Adjust Work Rests: Position the work rests according to your workpiece.
Turn On Power: Engage the safety switch and start the motor.
Begin Sanding: Feed the workpiece into the belt or disc, applying gentle pressure.
Safety: Always wear appropriate safety gear, including eye protection and a dust mask.
BENEFITS OF USING JET IBDG-436 1HP BENCH 4X36" BELT & 9" DISC SANDER (578634):
Increased Efficiency: Quickly and effectively removes material from various surfaces.
Improved Precision: Achieve accurate and consistent results.
Enhanced Safety: Features like dust collection and safety switch protect the user.
Durability: Built to withstand heavy use in industrial environments.
Versatility: Handles a wide range of materials and applications.
Heavy-duty industrial motor
Sealed bearings for long life
Cast iron base for stability
Tool-less work rest adjustments
Contact wheel grinding
9-inch aluminum disc for reduced heat build-up
Easy belt tracking
Solid cast iron platen
Dual dust collection ports
Safety switch with removable key
Product identification
- Brand: Jet
- Model / MPN: 578634
