Hydraulic press details

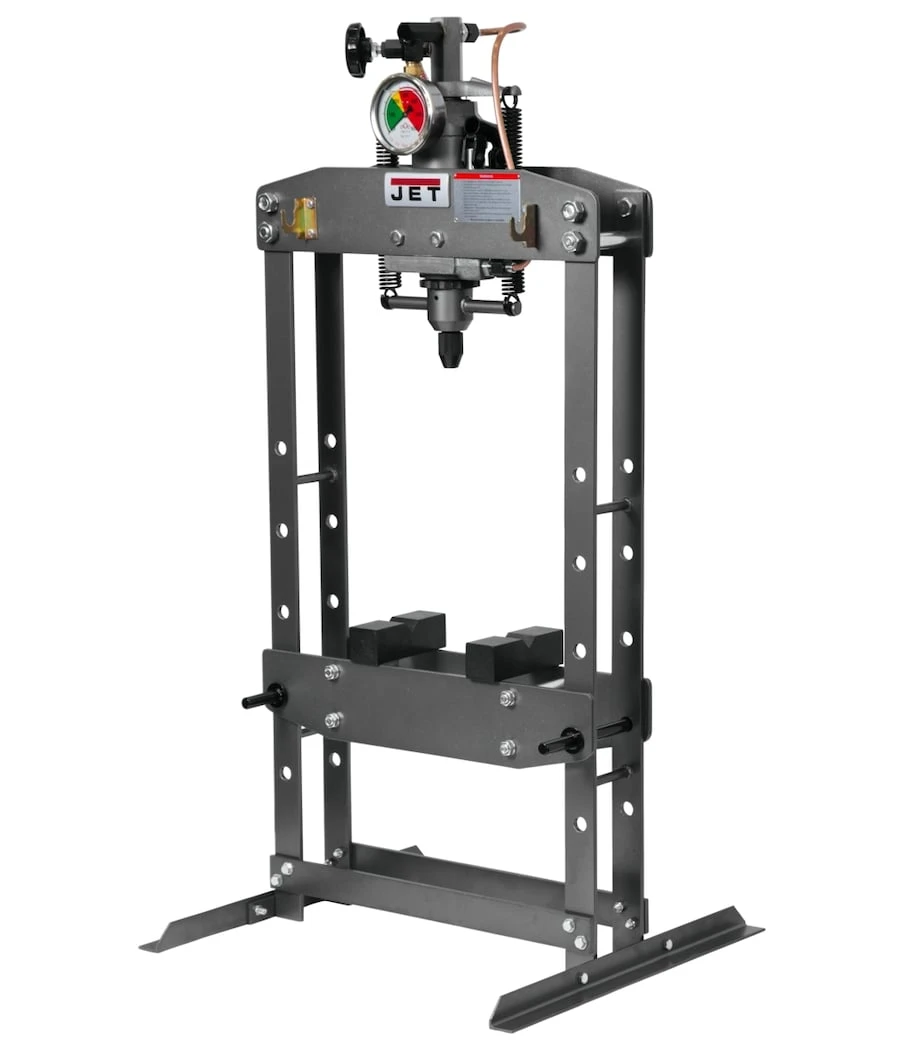

Jet HP-5A 5-Ton Hydraulic Press (331406)
Jet HP-5A 5-Ton Hydraulic Press (331406) is a robust, industrial-grade tool designed for pressing, bending, and straightening applications. Built with heavy-duty steel and equipped with industrial-grade hydraulics, this press delivers reliable performance and durability.
KEY FEATURES AND BENEFITS:
5-ton capacity: Handles a wide range of tasks with ease.
Heavy-duty steel construction: Ensures long-lasting durability and stability.
Industrial-grade hydraulics: Provides smooth and powerful operation.
Open side frames: Accommodates long materials for versatile use.
Fast setup ram extension screw: Increases efficiency and productivity.
Capacity: 5 tons
Ram diameter: 1-3/4 inches
Piston stroke: 4 inches
Screw stroke: 3 inches
Work table size: 19 x 5-1/2 inches
Vertical table travel: 15-3/4 inches
Overall dimensions: 23.5 x 26 x 51.5 inches
Safety First: Always wear appropriate safety gear, including protective eyewear and gloves.
Preparation: Ensure the work area is clean and stable. Place the press on a solid, level surface.
Assembly: Attach the included bed plates and pump handles to the press.
Operation: Fill the hydraulic system with the recommended fluid. Use the hand pump to generate pressure and operate the ram.
Material Placement: Position the material to be pressed or bent between the ram and the work table.
Pressing or Bending: Slowly apply pressure using the hand pump. Monitor the pressure gauge to avoid exceeding the press's capacity.
Release: Once the desired result is achieved, carefully release the pressure and remove the material.
BENEFITS OF USING Jet HP-5A 5-Ton Hydraulic Press (331406):
Increased efficiency: The press's powerful hydraulic system and fast setup features enhance productivity.
Versatility: Handles a wide range of pressing, bending, and straightening tasks.
Durability: Built with heavy-duty steel for long-lasting performance.
Precision: The pressure gauge allows for accurate control over the applied force.
Safety: Industrial-grade construction and design prioritize user safety.
Hand-operated with pressure gauge
Open side frames for long materials
Fast setup ram extension screw
Two bed plates and pump handles
Product identification
- Brand: Jet
- Model / MPN: 331406
