Jet 5 ton arbor press details

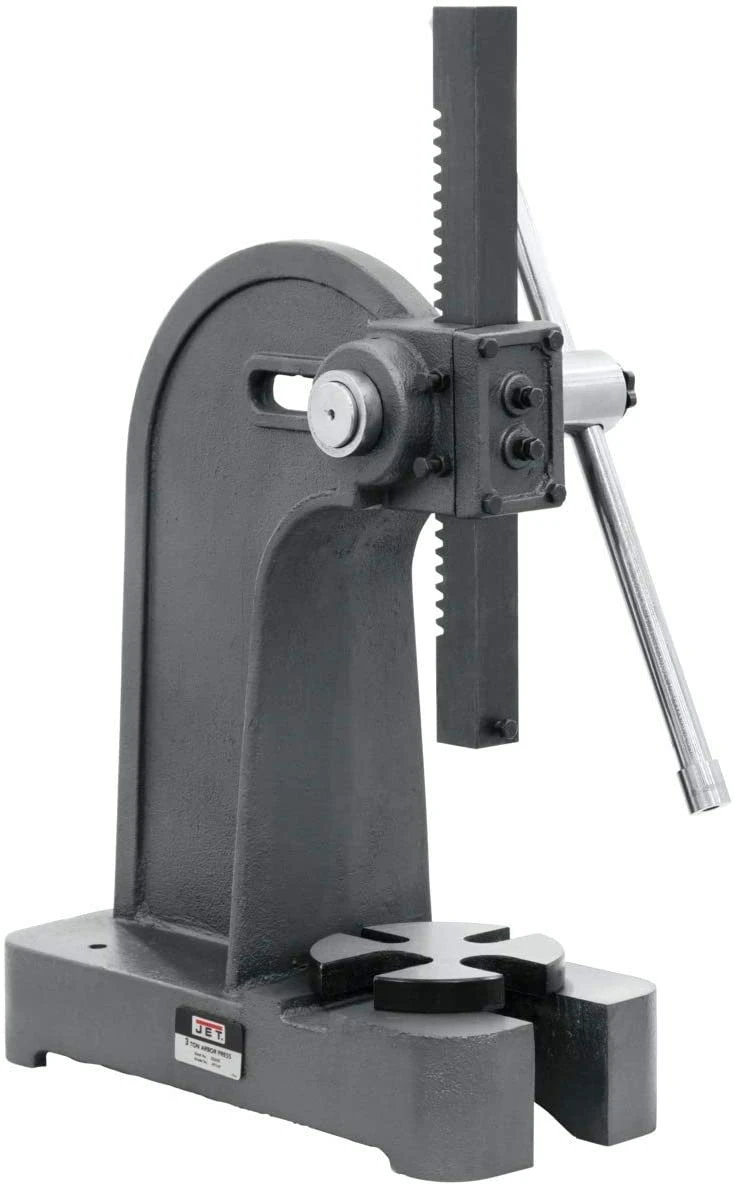

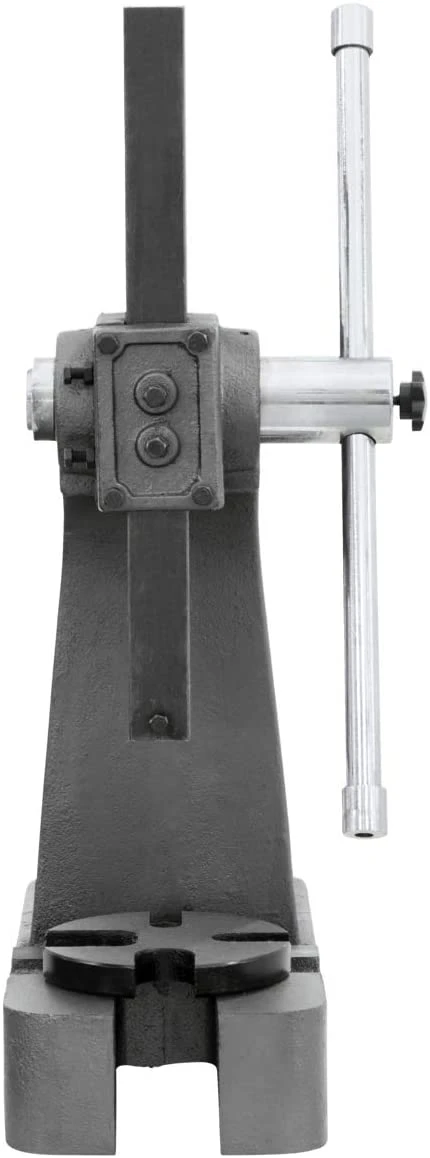

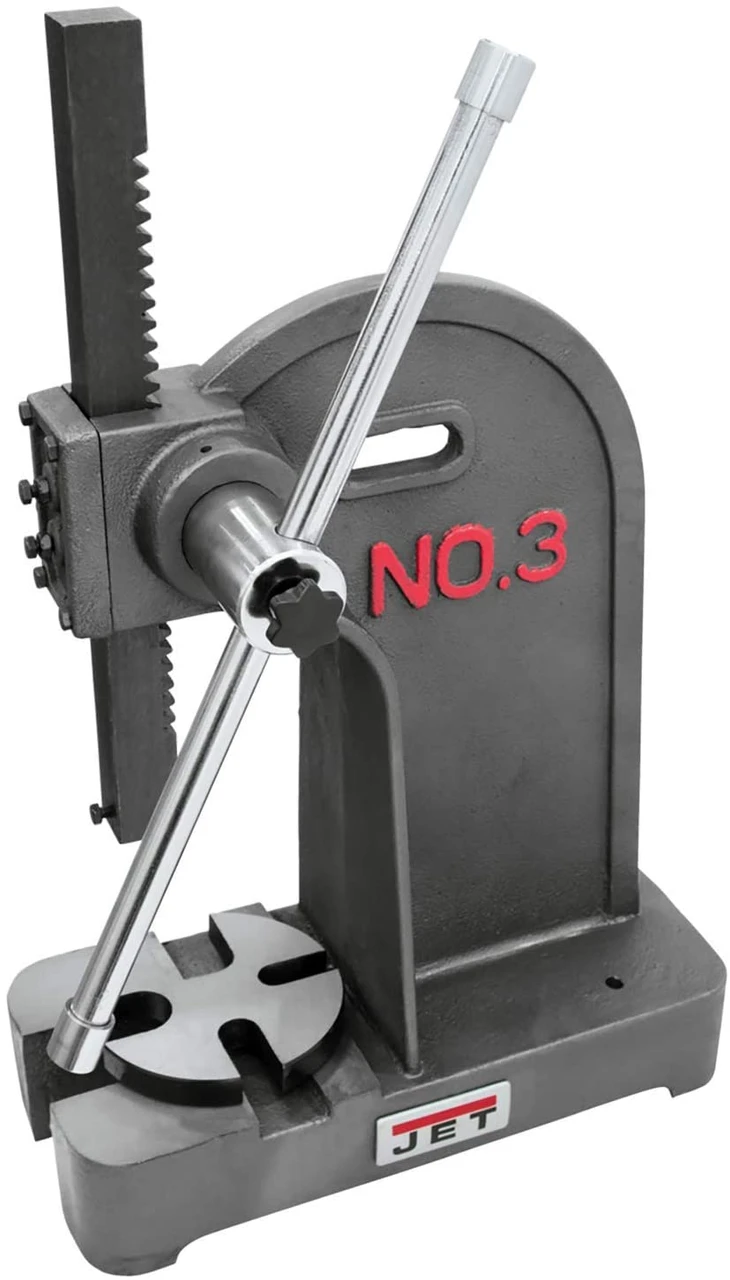

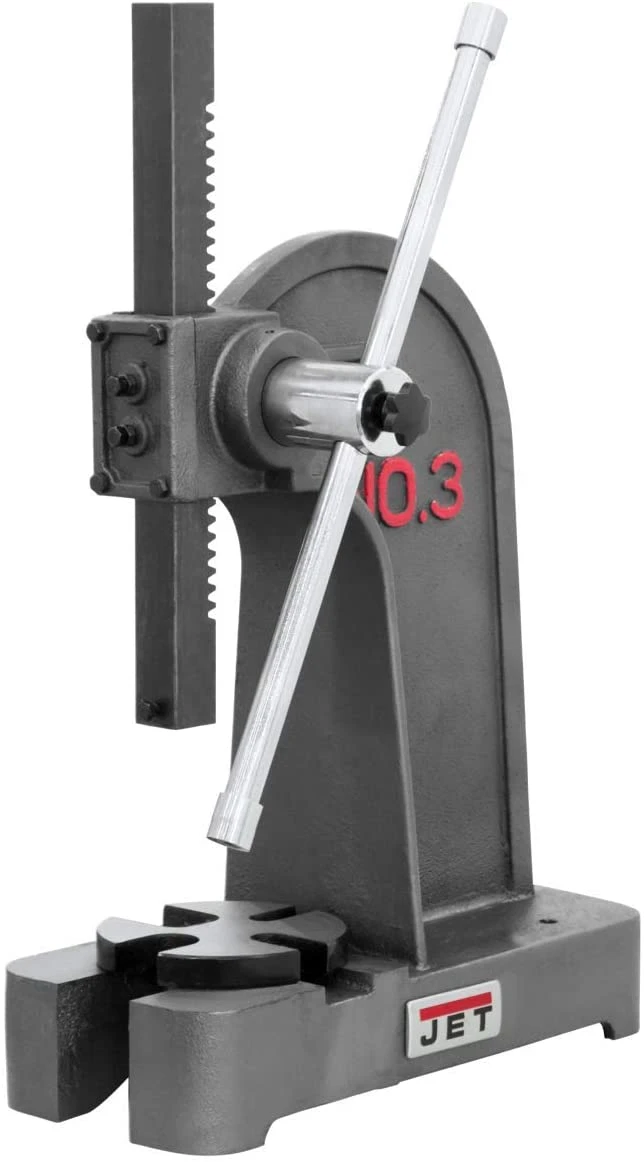

Jet AP-5 33-7/8" 5 Ton Arbor Press, Single Leverage (333650)
The Jet AP-5 33-7/8" 5 Ton Arbor Press, Single Leverage (333650) is a heavy-duty press ideal for workshops and professional applications. It generates up to 5 tons of pressing force, making it suitable for pressing bearings, bushings, gears, and more. The press is constructed from cast iron for long-lasting durability and features a single leverage design for user-friendly operation.
KEY FEATURES AND BENEFITS:
5-Ton Pressing Force: Delivers powerful pressing capabilities for a wide range of tasks.
Cast Iron Construction: Ensures exceptional durability and stability during use.
Precision Cut Steel Rams and Pinions: Guarantees smooth and accurate operation for optimal pressing control.
Adjustable Table Height: Allows for comfortable positioning of workpieces of various sizes.
Tilting Table: Enables angled pressing for specific applications.
4-Position Ram Stop: Provides increased control and versatility during pressing jobs.
Capacity: 5 tons
Frame: Cast iron
Leverage: Single
Ram Travel: 3-1/8 in. (9-1/8 in. total)
Throat Depth: 10-1/4 in.
Table Height: Adjustable (Capacity over Table: 18 in.)
Ram Stop: 4-position
Weight: 277 lbs. (approx.)
Dimensions (assembled): 35 in. H x 17 in. W x 29.5 in. L
Preparation: Secure the arbor press to a stable workbench. Mount the appropriate pressing dies or attachments for your task. Adjust the table height to comfortably accommodate your workpiece.
Positioning: Place the workpiece on the table, aligning it with the ram and die. Utilize the table slots to secure the workpiece when necessary.
Operating the Press: Lower the ram by turning the handle clockwise. Engage the ram stop at the desired pressing depth. Press the handle steadily to apply force until the job is complete.
BENEFITS OF USING Jet AP-5 33-7/8" 5 Ton Arbor Press, Single Leverage (333650):
Versatility: Handles a wide range of pressing tasks with its powerful capacity and adjustable features.
Accuracy: Precision-cut components ensure smooth operation and precise pressing control.
Durability: Cast iron construction guarantees long-lasting performance in demanding environments.
Ease of Use: Single leverage design simplifies operation for users of all experience levels.
Control: Adjustable table height, tilting function, and ram stop offer increased control over pressing jobs.
Heavy-duty cast iron construction
5-ton pressing capacity
Single leverage design
Precision cut steel rams and pinions
Adjustable table height
4-position ram stop
Product identification
- Brand: Jet
- Model / MPN: 333650
