Jet chain hoist details

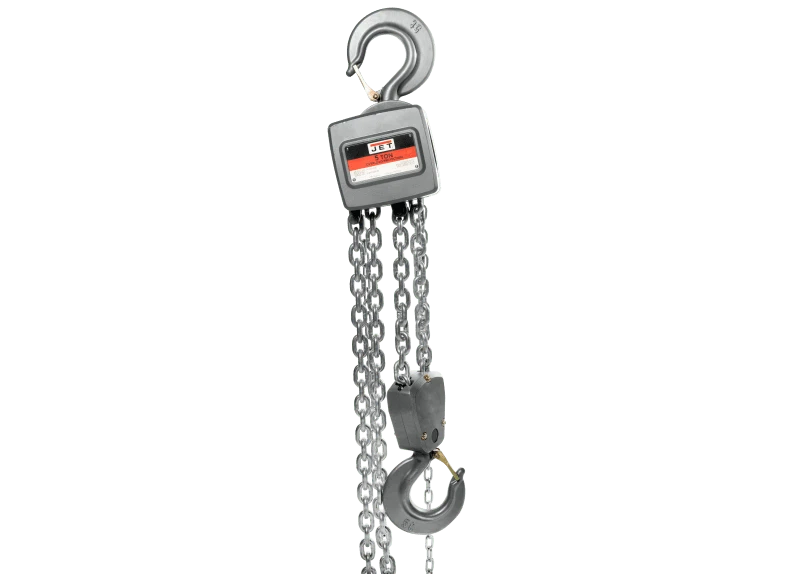

Jet AL100-500-15 5-Ton Hand Chain Hoist w/ 15' Lift (133515)
The Jet AL100-500-15 5-Ton Hand Chain Hoist w/ 15' Lift (133515) is a robust 5-ton hand chain hoist designed for efficient lifting tasks. Constructed from durable cast steel, this hoist offers reliability and longevity.
KEY FEATURES AND BENEFITS:
Effortless Lifting: The extra-large hand chain opening allows for easy and comfortable operation.
Weather Protection: The sealed housing safeguards internal components from harsh environments.
Enhanced Safety: Cast steel safety latches and a dual pawl Weston style brake provide reliable security.
Durable Construction: Grade 100 load chain, heat treated for strength and zinc plated for corrosion resistance.
Capacity: 11200 lbs (5 tons)
Load Chain Dimensions: 9 mm x 27 mm
Weight: 84.05 lbs
Hand Chain to Lift Load 1 ft: 191
Lbs. of Pull to Lift Capacity: 82 lbs
Headroom: 22 13/16"
Model Number: AL100-500-15
UPC: 731325843095
Inspect: Before use, carefully examine the hoist for any damage or wear.
Attach: Securely attach the hoist to a suitable overhead support structure.
Position: Position the load chain hook directly above the center of gravity of the load.
Lifting: Pull the hand chain to lift the load.
Lowering: Release the hand chain control to lower the load.
Locking: Engage the safety latch to secure the load in position.
BENEFITS OF USING JET AL100-500-15 5-TON HAND CHAIN HOIST W/ 15' LIFT (133515):
Increased Efficiency: Increases efficiency in lifting heavy objects.
Reduced Risk of Injuries: Reduces the risk of injuries due to manual lifting.
Improved Workplace Safety: Enhances workplace safety with a reliable braking system.
Durable Construction: Built for long-lasting performance.
Easy Operation and Maintenance: Designed for ease of use and upkeep.
Compact design for versatile use
Smooth lifting and lowering operation
Complies with safety standards (ANSI/ASME B30.16 and HAST-2)
Versatile application in various industries
Product identification
- Brand: Jet
- Model / MPN: 133515
