Jet chain hoist 1 ton details

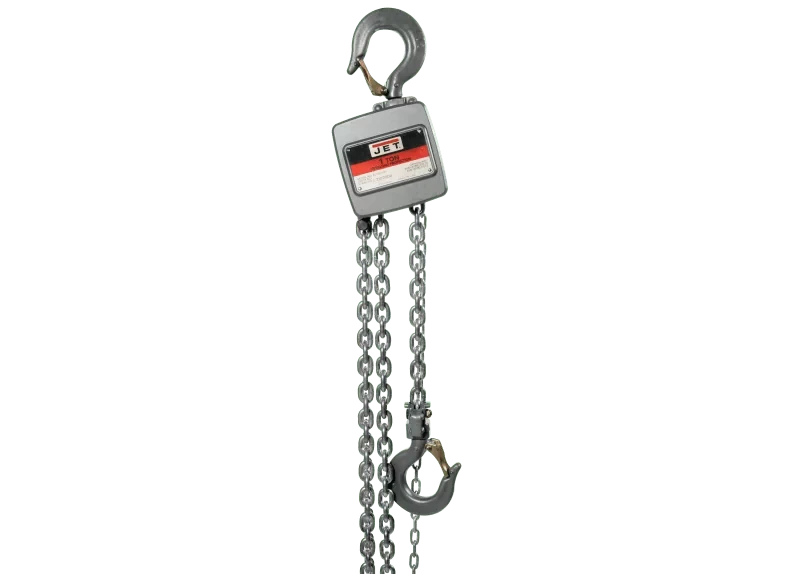

Jet AL100-100-15 1-Ton Hand Chain Hoist w/ 15' Lift (133115)
The Jet AL100-100-15 1-Ton Hand Chain Hoist w/ 15' Lift (133115) is a reliable and efficient lifting tool designed for various applications. With a 15-foot lift capacity and durable aluminum construction, this hoist offers a balance of strength and portability.
KEY FEATURES AND BENEFITS:
Safe and Secure: Patented fused brake system and cast steel safety latches provide maximum safety during operation.
Durable Construction: Aluminum body and heat-treated load chain ensure long-lasting performance.
Efficient Lifting: Extra-large hand chain opening for easy pulling and smooth operation.
Weather Resistant: Sealed housing protects internal components from harsh environments.
Load Capacity: 1 Ton (2200 lbs)
Lift Height: 15 ft
Load Chain Dimensions: 5.6 x 15.7 mm
Weight: 19.75 lbs
Headroom: 11-5/8 inches
Hand Chain to Lift Load 1 ft: 61
Lbs. of Pull to Lift Capacity: 53.0000
Inspect the hoist: Before use, carefully examine the hoist for any damage or wear.
Attach the load: Securely hook the load chain to the lifting point of the load.
Operate the hand chain: Pull the hand chain to lift the load.
Lower the load: To lower the load, gradually release the hand chain.
Release the load: Once the load is safely on the ground, detach the load chain.
BENEFITS OF USING Jet AL100-100-15 1-Ton Hand Chain Hoist w/ 15' Lift (133115):
Increased Efficiency: Easily lift heavy objects with minimal effort.
Improved Safety: Patented brake system and safety features protect users and loads.
Durability: Built to withstand harsh working conditions.
Versatility: Suitable for various lifting applications.
Aluminum Construction: For lightweight and durability.
Sealed Housing: For protection against elements.
Extra-Large Hand Chain Opening: For easy operation.
Cast Steel Safety Latches: For added security.
Dual Pawl Weston Style Brake: For reliable stopping.
Grade 100 Load Chain: For strength and durability.
Patented Fused Brake Design: For safety and longevity.
Product identification
- Brand: Jet
- Model / MPN: 133115
