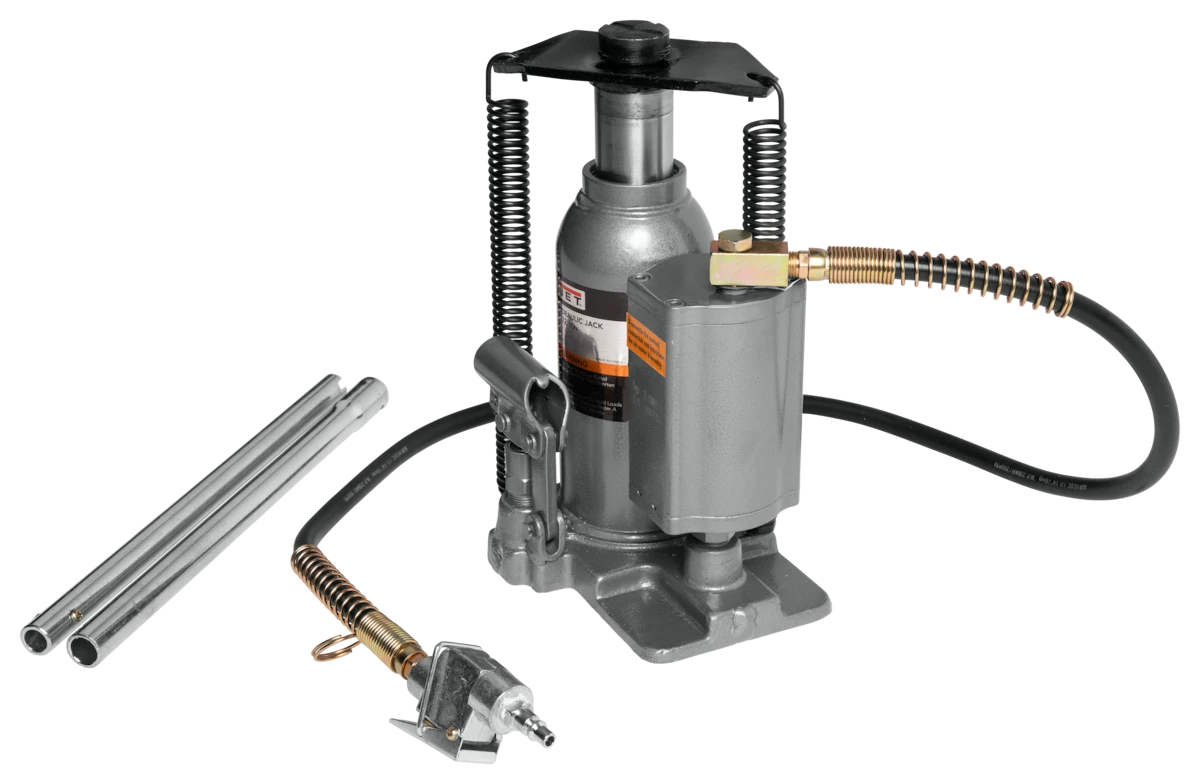

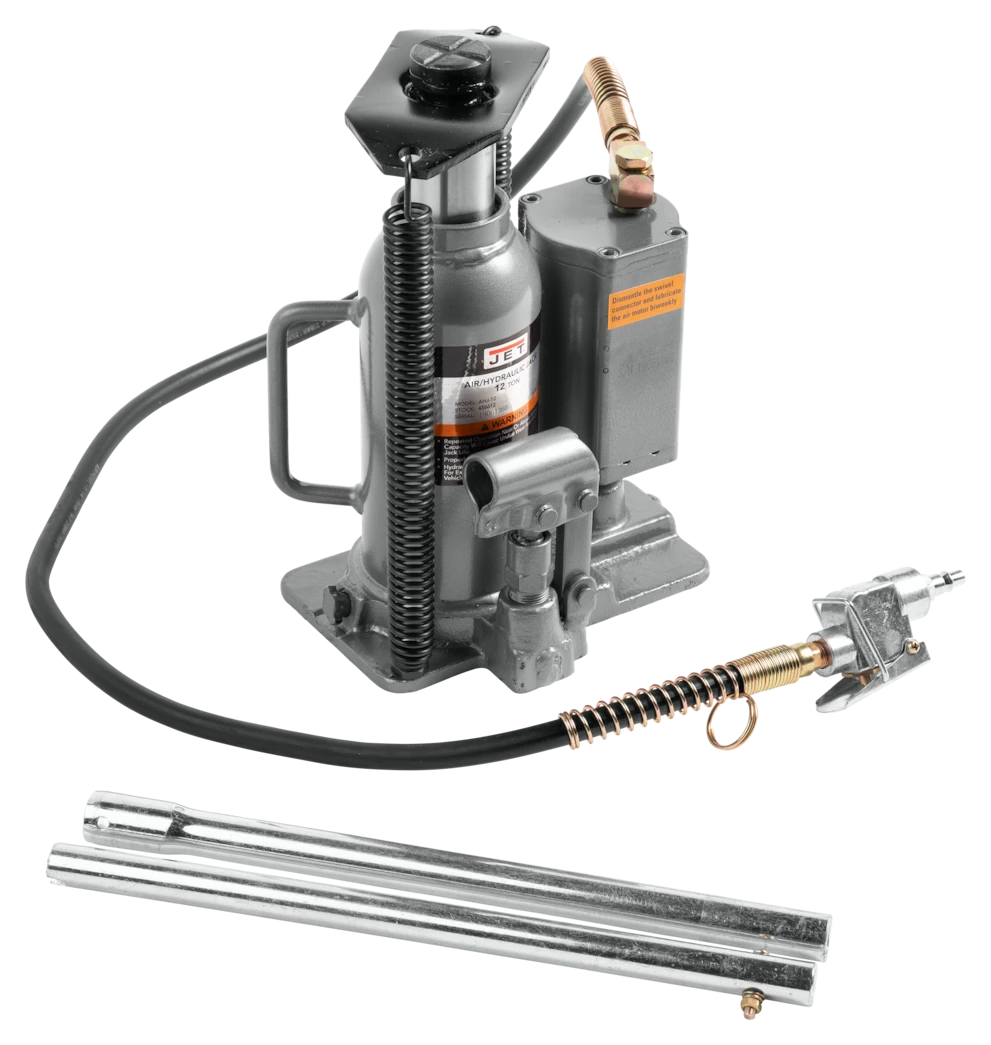

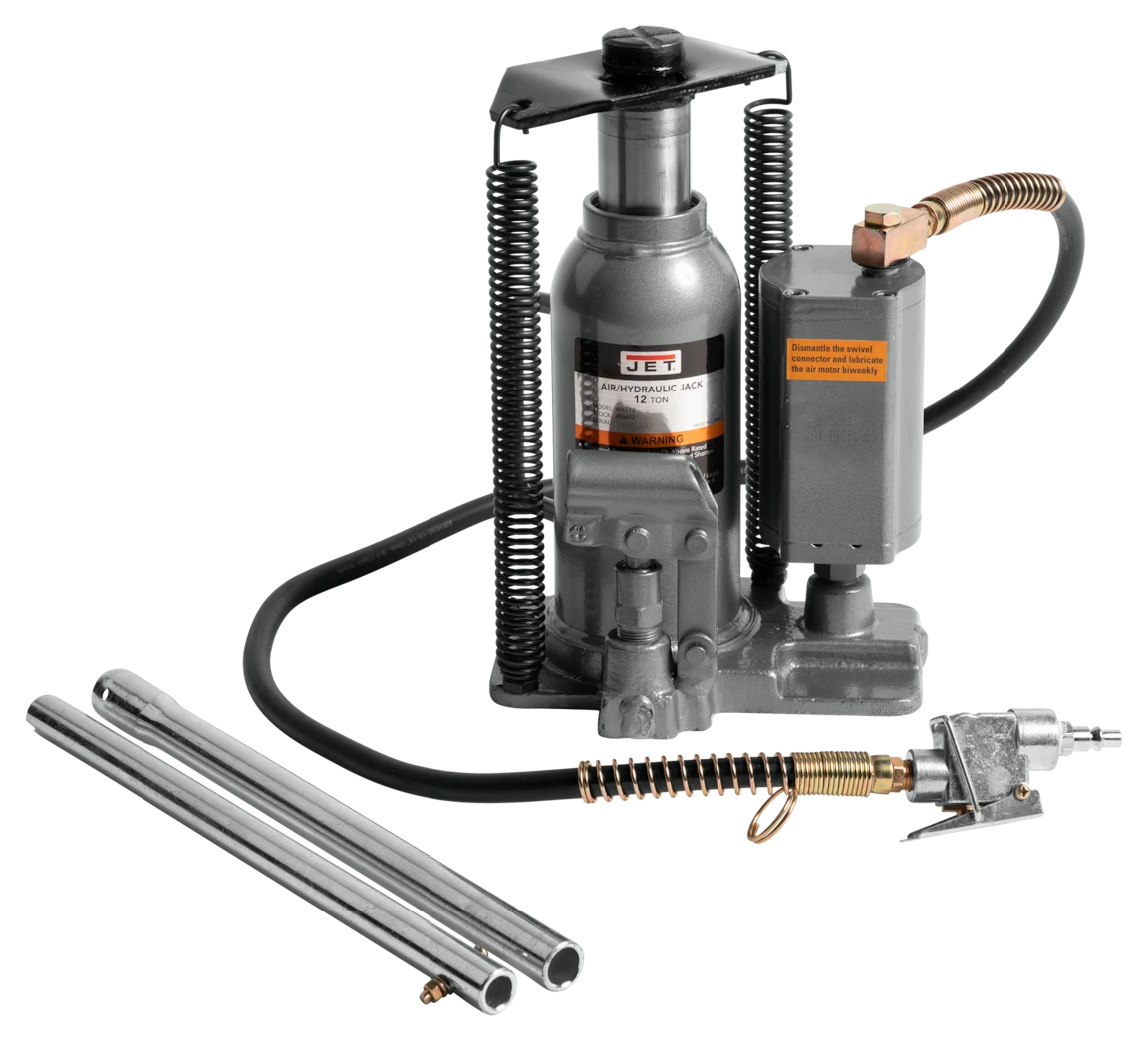

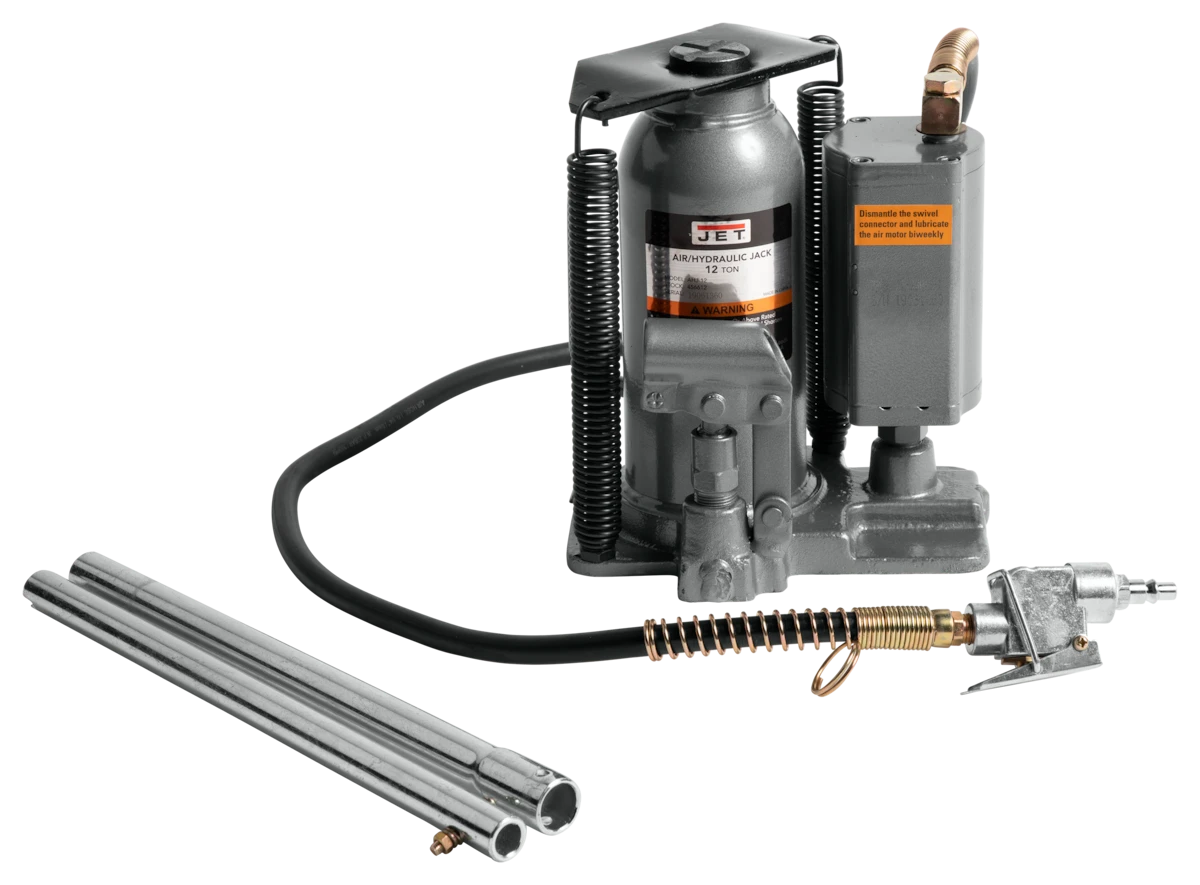

JET 456612 AHJ-12 Air Hydraulic Bottle Jack
JET 456612 identifies the AHJ-12 twelve-ton air/hydraulic bottle jack with a molded carrying case. It combines air-powered pumping with a hydraulic lifting mechanism. Minimum height, overall raised height and piston travel must be checked separately for the intended lifting point.
Specifications and included details
- AHJ-12 model; named 12-ton capacity.
- Listed air-pressure requirement: 90-145 PSI.
- Listed minimum height 9-2/3 inches and maximum height 18-2/3 inches.
- 4-1/2-inch listed piston lift.
- Heavy-duty molded case is listed as included.
Before ordering
Verify rated load and height dimensions against the manufacturer's current data, lifting-point geometry and available air supply. The listed piston lift does not by itself explain the full overall height range; check extension configuration. Follow permitted operating orientation and support instructions. A lifting jack is not a substitute for appropriate load-support equipment.
Product questions and answers
Does air pressure replace the hydraulic mechanism?
No. This is an air/hydraulic jack: the air supply operates a pump, while the jack uses hydraulic lifting.
Is the nine-inch overall height difference all piston travel?
No. Piston lift is separately listed as 4-1/2 inches. Confirm the manufacturer's extension configuration rather than equating these dimensions.
Can the jack alone support a load for work underneath?
Do not treat a lifting jack as support equipment. Use appropriate rated supports and follow the equipment and load manufacturer's instructions.
