3/4 ton lever hoist details

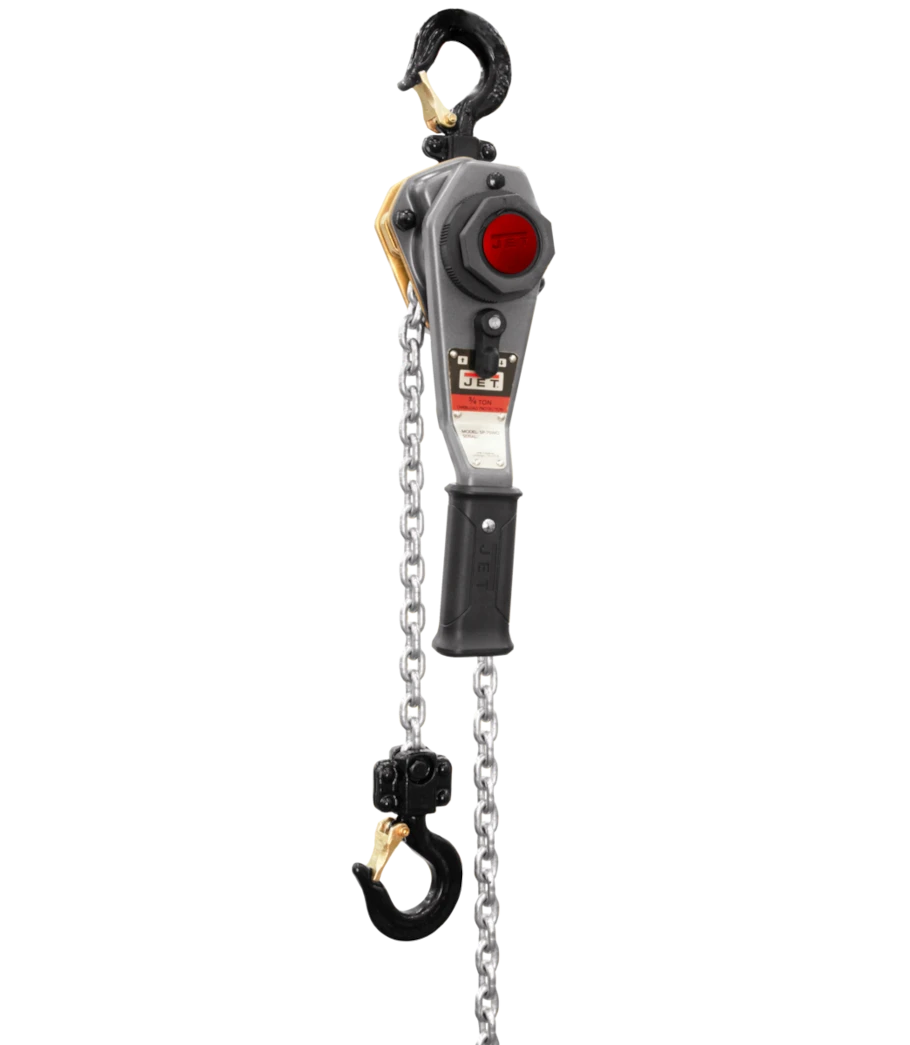

Jet 3/4 Ton Lever Hoist w/ 10' Lift & Overload Protection (376101)
Jet 3/4 Ton Lever Hoist w/ 10' Lift & Overload Protection (376101) is a reliable and robust lifting solution designed for demanding industrial applications. Built with safety and durability in mind, this lever hoist boasts features that ensure optimal performance and longevity.
KEY FEATURES AND BENEFITS
Safety First: The Jet 376101 prioritizes safety with its slip clutch overload protection, which prevents lifting beyond its rated capacity, protecting both the load and the hoist itself. The Weston-style double pawl brake enhances load security, while the patented handle design and ergonomic grip offer greater operator control and comfort.
Built to Last: Constructed with all-steel components and heat-treated internal parts, this lever hoist is built to withstand harsh conditions. The grade 100 load chain is 20% stronger than standard grade 80 chains, ensuring exceptional durability.
Efficient Operation: Caged needle bearings support the load sheave, promoting smooth and efficient operation. The improved free chaining mechanism allows for quick and safe adjustments of slack chain.
Versatile Design: The compact and lightweight design, coupled with a shorter handle and smaller body, makes the Jet 376101 ideal for use in confined spaces and areas with low headroom. The 360-degree rotating alloy steel hooks enable easy rigging in various orientations.
Load Capacity: 3/4 ton (1,500 lbs)
Overload Protection: Yes
Headroom: 11 inches
Handle Length: 9-5/8 inches
Lever Pull Force: 64 lbf
Lift per Turn: 1-1/8 inches
Load Chain Dimensions: 5.6 x 15.7 mm
Inspect: Before use, carefully inspect the hoist for any damage or wear. Ensure the load chain is properly lubricated.
Attach Load: Securely attach the load to the hoist's hook, ensuring it is balanced and within the rated capacity.
Position Hoist: Position the hoist for lifting, ensuring it is stable and secure.
Lift: Pump the lever handle up and down to lift the load. Use a steady and controlled motion.
Lower: To lower the load, gradually release the lever handle. Control the descent speed to prevent damage.
BENEFITS OF USING THE JET 3/4 TON LEVER HOIST W/ 10' LIFT & OVERLOAD PROTECTION (376101)
Enhanced safety due to overload protection and robust design.
Increased productivity with efficient and smooth operation.
Versatility for use in various applications and environments.
Durability for long-lasting performance in harsh conditions.
Single-piece brake design for enhanced safety
Cast-steel safety latches secured with Allen screws and lock nuts
Industrial-rated alloy steel hooks that rotate 360 degrees
Hooks that stretch to indicate an overload situation
Product identification
- Brand: Jet
- Model / MPN: 376101
Jet lever hoist: see the listed specifications for this model.
