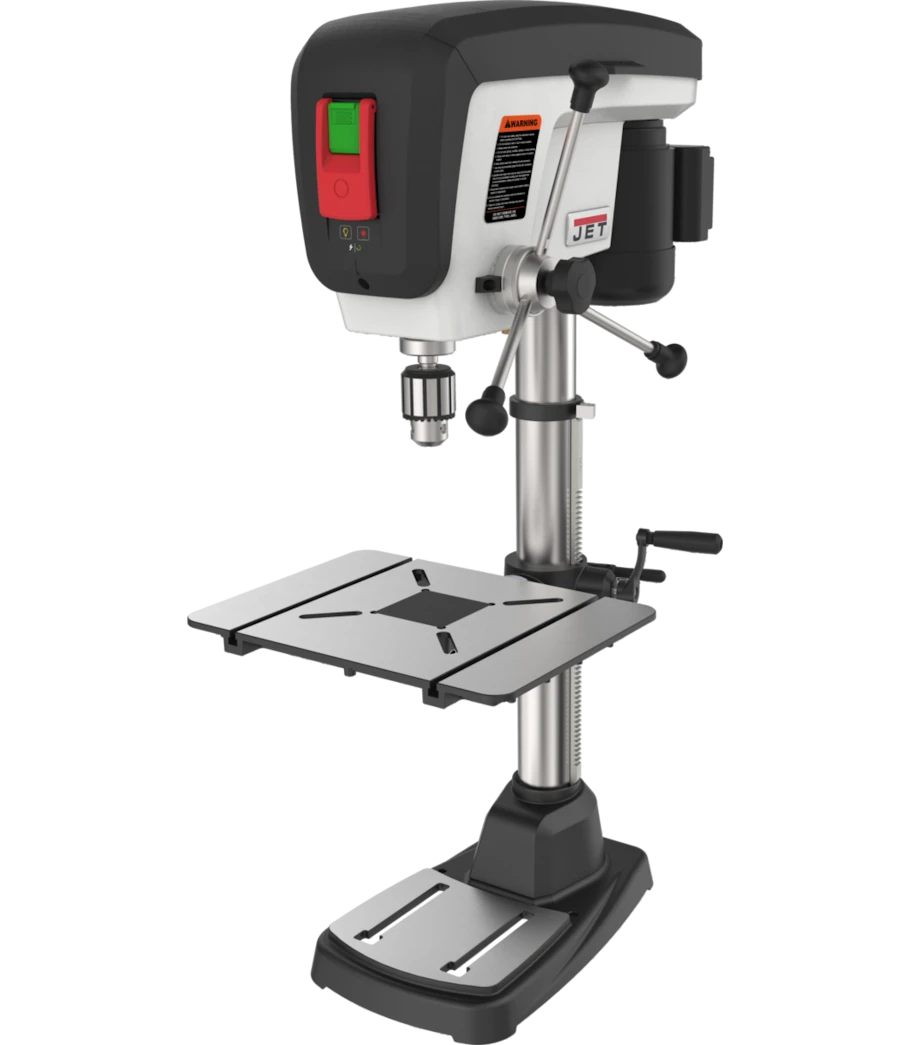

Jet 15 Inch Benchtop Drill Press (Replacement Of 354165) (716200)
Jet 15 Inch Benchtop Drill Press (Replacement Of 354165) (716200) is a precision tool designed for both woodworking and metalworking enthusiasts. Packed with features for accuracy and efficiency, this drill press is a valuable addition to any workshop.
KEY FEATURES AND BENEFITS:
Powerful Performance: Equipped with a 3/4 HP motor, this drill press delivers ample power for various drilling tasks.
Precision Drilling: The 3-1/8 inch spindle travel allows for precise depth control, ensuring accurate results.
Versatile Work Table: The large 12-1/2" x 17" work table with T-slot grooves provides a stable and secure platform for your projects.
Convenient Features: Benefit from one-handed belt tensioning, integrated depth stop, Xacta-X laser, LED work light, and replaceable MDF table insert.
Durable Construction: The cast iron head and base provide stability and longevity, ensuring years of reliable performance.
Swing: 15 inches
Spindle Travel: 3-1/8 inches
Number of Spindle Speeds: 16
Spindle Taper: MT2/JT3
Spindle Speed Range (RPM): 210-3500
Spindle Distance to Table (Max.): 18-5/16 inches
Table Size (L x W): 12-1/2 x 17 inches
Table Tilt: 45 degrees left and right
Chuck Size: 5/8 inch
Column Diameter: 2-3/4 inches
Base Size: 18 x 11-3/8 inches
Motor Power: 3/4 HP
Motor Voltage: 115V
Prewired Voltage: 115V only
Set up: Place the drill press on a stable work surface. Ensure proper ventilation and grounding.
Adjust height: Adjust the spindle height to accommodate the workpiece.
Secure workpiece: Clamp the workpiece securely to the work table using the T-slot grooves or clamps.
Choose speed: Select the appropriate spindle speed based on the material being drilled.
Lower drill bit: Lower the drill bit to the desired depth using the depth stop.
Engage drill press: Turn on the drill press and gradually feed the workpiece into the drill bit.
Maintain control: Apply steady pressure and avoid forcing the drill bit.
Complete drilling: Continue drilling until the desired depth is reached.
Raise drill bit: Raise the drill bit and remove the workpiece.
Clean up: Clean the drill press and work area after use.
BENEFITS OF USING Jet 15 Inch Benchtop Drill Press (Replacement Of 354165) (716200):
Improved accuracy: Ensures precise drilling results, reducing errors and rework.
Increased efficiency: Powerful motor and multiple speed settings allow for faster and smoother drilling.
Versatility: Suitable for a wide range of materials and applications, from woodworking to metalworking.
Safety: Stable base and safety features provide a secure and controlled drilling environment.
Durability: High-quality materials ensure long-lasting performance.
Powerful 3/4 HP motor
3-1/8 inch spindle travel
Large 12-1/2" x 17" work table
16 spindle speeds
One-handed belt tensioning
Integrated depth stop
Replaceable MDF table insert
Cast iron head and base
Product identification
- Brand: Jet
- Model / MPN: 716200
