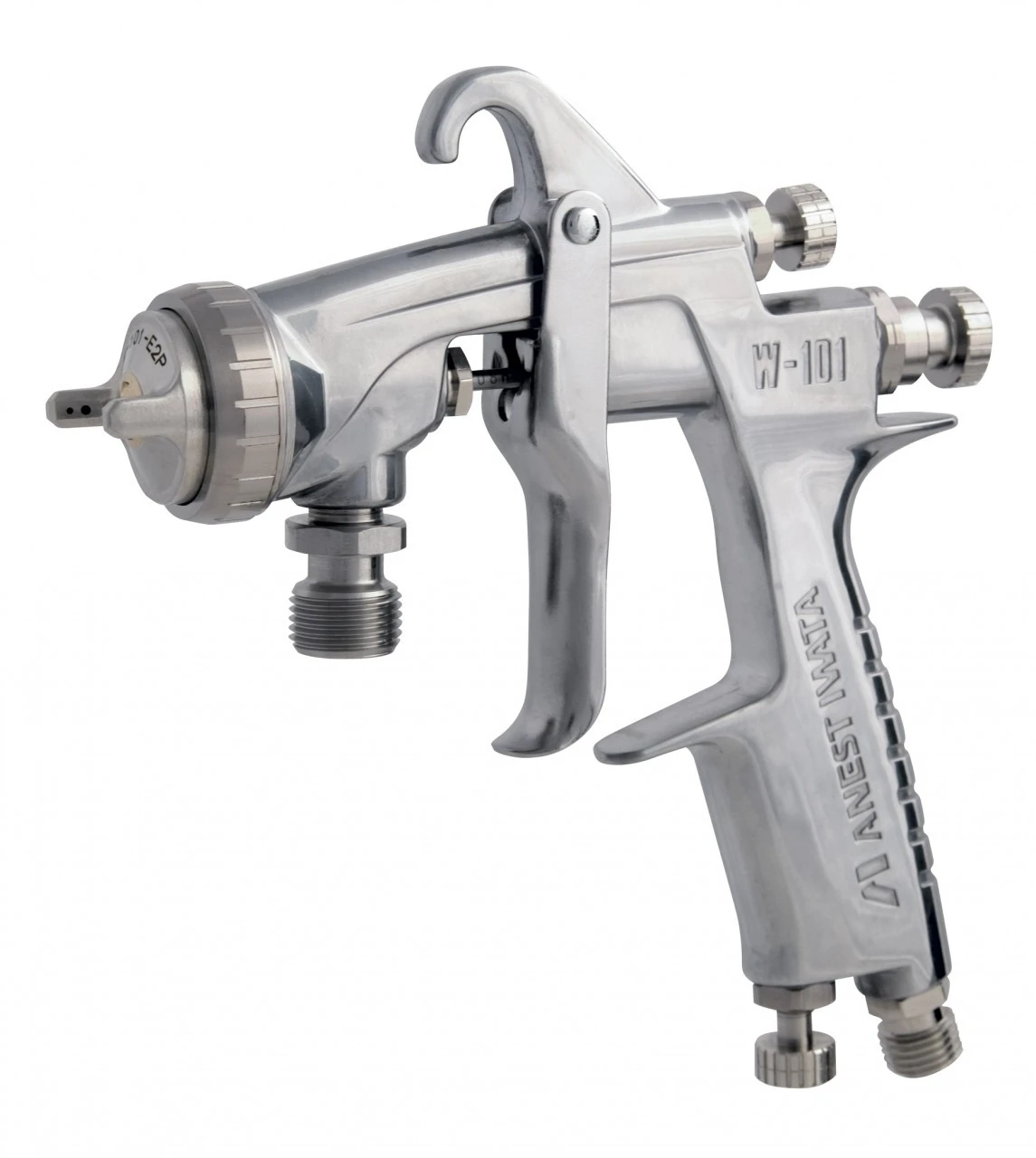

Iwata W101-134BPG 1.3mm Gravity Spray Gun Only (4500)
KEY FEATURES AND BENEFITS:
Optimal Atomization: The 1.3mm nozzle provides fine atomization of paint, leading to an extremely smooth and uniform finish with minimal texture.
Versatile Application: Suitable for a broad spectrum of painting tasks, including applying base coats, clear coats, and specialty finishes in automotive and general painting.
High-Quality Results: Engineered for achieving professional-grade finishes, especially on challenging colors and clear coats, delivering a flat and wide spray pattern.
Ergonomic Design: Constructed from metal with a balanced weight, providing comfortable handling and reduced fatigue during extended use.
Nozzle Diameter: 1.3mm
Type: Gravity Feed Spray Gun
Air Inlet Size: 1/4 inch
Item Weight: 390 grams
Product Dimensions: 5.04"W x 8.03"H
Air Consumption: 160 liters per minute
Spraying Air Pressure: 0.20 MPa
Pattern Width: 250 mm
Included in Product: Spray Gun Only
Connect Air Hose: Attach a suitable air hose with a 1/4 inch fitting to the air inlet at the bottom of the spray gun handle. Ensure a secure connection to prevent air leaks.
Attach Paint Cup: If not already attached, securely screw a compatible gravity feed paint cup onto the top port of the spray gun.
Prepare Paint: Mix your paint according to the manufacturer's recommendations, ensuring proper viscosity. Strain the paint to remove any impurities that could clog the gun.
Fill Paint Cup: Carefully pour the prepared paint into the gravity feed cup, ensuring not to overfill it.
Adjust Air Pressure: Connect the air hose to your compressor and set the air pressure at the regulator to 0.20 MPa (approximately 29 PSI) or as per paint manufacturer's guidelines for your specific material.
Adjust Spray Pattern: Test the spray pattern on a piece of scrap material. Adjust the fluid control knob (typically on the back of the gun) to control paint flow and the pattern adjustment knob (often on the side) to adjust the width and shape of the spray fan until desired results are achieved.
Begin Painting: Hold the gun perpendicular to the surface at a consistent distance (usually 6-8 inches). Begin your stroke before pulling the trigger and release the trigger just before the end of your stroke to avoid paint build-up at the edges. Overlap each pass by approximately 50% for even coverage.
Clean After Use: Immediately after painting, clean the spray gun thoroughly using appropriate cleaning solvents. Disassemble the air cap and nozzle for detailed cleaning to prevent paint from drying inside the gun components.
BENEFITS OF USING IWATA W101-134BPG 1.3MM GRAVITY SPRAY GUN ONLY (4500):
Delivers a professional-grade finish, essential for high-end automotive work and detailed projects.
Reduces paint consumption due to efficient atomization and precise control, leading to cost savings.
Provides consistent performance for both novice and experienced painters, simplifying the application process.
Designed for compatibility with a variety of paint types, including modern low-solvent and high-solid coatings.
Enhances productivity by providing a wide and uniform spray pattern, covering surfaces quickly and evenly.
Precision-machined metal body construction.
Fine-tuning capabilities for fluid and fan pattern adjustments.
Optimized for consistent "wet coat" application.
Supports application of challenging paint formulations like color clear and matte clear.
Engineered to produce a flat and wide spray pattern.
Compatible with a range of standard gravity feed paint cups (sold separately).
Lightweight design for prolonged use without discomfort.
Corrosion-resistant components for extended tool life.
Product identification
- Brand: Iwata
- Model / MPN: 4500
