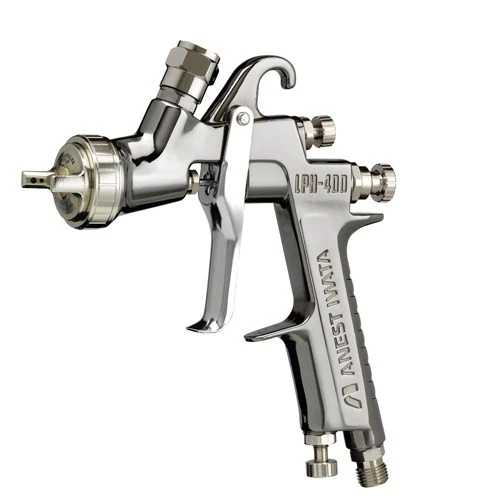

Iwata LPH400-184LV 1.8mm HVLP Spray Gun w/600mL Plastic Cup (5571)
The Iwata LPH400-184LV 1.8mm HVLP Spray Gun w/600mL Plastic Cup (5571) is a high-performance, center post gravity-fed HVLP (High Volume Low Pressure) spray gun designed for efficient and precise application of various coatings, particularly primers and high-viscosity materials. This professional-grade tool utilizes Iwata's advanced LV technology to deliver superior atomization and a consistent, tulip-inspired spray pattern. Its gravity-feed design ensures easy cleanup and significantly reduces material waste, making it an excellent choice for achieving smooth, high-quality finishes with reduced environmental impact due to less overspray. The included 600ml plastic cup is convenient for mixing and holding paint, further enhancing the gun's usability for a range of projects.
KEY FEATURES AND BENEFITS:
HVLP Technology: Delivers paint with high transfer efficiency, minimizing overspray and reducing material consumption, which leads to cost savings and a cleaner work environment.
1.8mm Nozzle: Specifically sized for effective application of primers and high-viscosity materials, ensuring proper flow and coverage for thicker coatings.
Gravity-Feed Design: Facilitates consistent material flow, provides for quick and easy cleaning, and reduces paint waste by allowing almost all material to be used from the cup.
LV Technology with Split Nozzle: Enhances material savings and provides exceptional atomization, creating a finer, more even spray pattern for a superior finish.
Low Air Consumption (9.5 CFM): Operates efficiently with a relatively low air requirement, making it compatible with a wider range of air compressors.
Superior Atomization: Breaks down paint into extremely fine particles, resulting in a very smooth, consistent, and high-quality finish with minimal texture.
Tulip Inspired Spray Pattern: Offers a unique and effective spray pattern for optimal coverage and control during application.
Includes 600ml Plastic Cup (PCG6PM): A convenient size for many painting tasks, reducing the need for frequent refills and assisting in material preparation.
Nozzle Size: 1.8 mm (0.071")
Atomization Type: HVLP
Max Working Air Inlet Pressure: 98 PSI
Atomizing Air Pressure (at gun): 16 PSI
Air Consumption: 9.5 CFM (Cubic Feet per Minute)
Pattern Width: 320 mm (12.6")
Fluid Output: 190 ml/min
Noise Level: 69.4 dB(A)
Type of Feed: Gravity
Included: Iwata LPH400-184LV spray gun, 600mL Plastic Cup (PCG6PM)
Prepare the Material: Thoroughly mix your primer or high-viscosity coating according to the manufacturer's instructions. Ensure it is strained to remove any impurities that could clog the gun.
Fill the Cup: Pour the prepared material into the 600ml plastic cup. Securely attach the cup to the spray gun.
Connect Air Supply: Connect the air hose from your compressor to the air inlet at the bottom of the spray gun. Ensure the compressor is set to the recommended operating pressure of 16 PSI at the gun.
Adjust Settings:
Fluid Knob: Turn the fluid knob (usually at the back of the gun) to control the amount of material flowing through the nozzle. Start with it fully open and adjust as needed.
Fan Pattern Knob: Adjust the fan pattern knob (usually on the side) to change the width of your spray pattern. For the Iwata LPH400, the pattern width can be up to 12.6 inches.
Air Cap: Ensure the air cap is clean and securely tightened.
Test Spray: Before applying to your actual workpiece, perform a test spray on a piece of scrap material to check the pattern, atomization, and fluid output. Adjust settings until the desired result is achieved.
Apply Coating: Hold the gun perpendicular to the surface, maintaining a consistent distance. Overlap each pass by approximately 50% to ensure even coverage. Release the trigger at the end of each pass.
Clean Up: Immediately after use, thoroughly clean the spray gun. Disassemble the air cap and fluid nozzle, cleaning all parts with appropriate solvents. Flush the fluid passage with solvent and clean the cup. Proper cleaning prevents material buildup and ensures the gun's longevity.
BENEFITS OF USING IWATA LPH400-184LV 1.8MM HVLP SPRAY GUN W/600ML PLASTIC CUP (5571):
Enhanced material efficiency due to HVLP design reducing overspray.
Delivers a professional-quality finish with superior atomization.
Engineered for high-viscosity coatings like primers and heavy-duty paints.
Reduces environmental impact by minimizing VOC emissions.
Simple maintenance with fewer internal components and corrosion-resistant parts.
Efficient air usage allows use with a wide range of compressor sizes.
Durable and reliable performance backed by Iwata's engineering quality.
Center post gravity-feed configuration.
Patented LV technology integrates a split nozzle.
Ergonomic design for comfortable handling.
Minimal internal components for simpler service.
Corrosion-resistant surface materials for cleaning.
Optimized air passages for efficient atomization.
Precision-machined fluid tips and air caps.
Adjustable fluid output control knob.
Adjustable fan pattern control knob.
Product identification
- Brand: Iwata
- Model / MPN: 5571
Iwata spray gun cup: see the listed specifications for this model.
