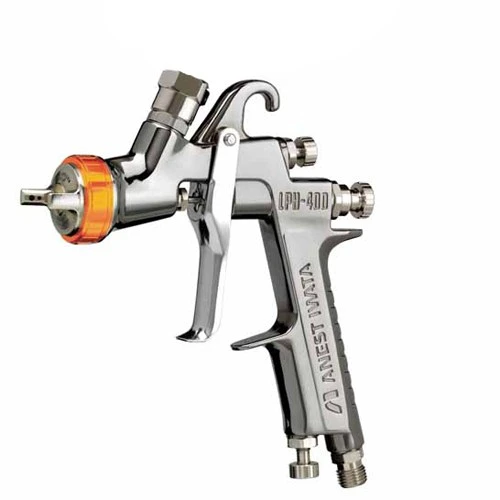

Iwata LPH400-154LVX 5681 Gun with 600 ml Cup
The 5681 configuration adds a 600 ml plastic gravity cup to the 1.5 mm LPH400-154LVX gun. It differs from the gun-only 5680 package, making it useful to check the written inventory when planning a complete setup. The supplied connection details also distinguish the air fitting from the fluid-cup connection.
Specifications and included details
- 1.5 mm LPH400-154LVX gun.
- Included 600 ml plastic gravity cup.
- Air connection: G1/4; fluid connection: M16 x 1.5.
- Listed atomizing pressure: 16 PSI.
- Listed air consumption: 9.8 CFM.
- Listed pattern width: 13.0 inches; fluid output: 145 ml/min.
Before ordering
Match the exact connections and coating requirements, and verify air-pressure measurement conditions in the manual. Do not substitute NPT for G1/4 or confuse the fluid thread with the air inlet. The listed fan and fluid figures do not establish guaranteed coverage or application speed for every basecoat.
Product questions and answers
How does 5681 differ from gun-only package 5680?
5681 explicitly includes a 600 ml plastic gravity cup with the 1.5 mm gun; 5680 is listed as gun only.
Is M16 x 1.5 the air-hose connection?
No. The supplied details identify M16 x 1.5 for fluid and G1/4 for air. Confirm the correct mating fittings.
Does the main cup-only photo exclude the gun?
No. The package inventory explicitly includes the LPH400-154LVX gun and plastic cup.
