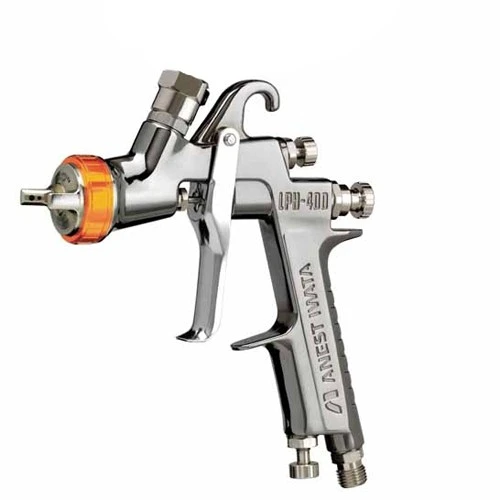

Iwata LPH400-144LVX 5671 Basecoat Gun with Cup
The 5671 package is the 1.4 mm LVX basecoat configuration with a PCG6PM 600 ml plastic cup. It is a distinct selection from the 1.5 mm LVX gun and from the standard LV configuration. For metallic or pearl work, match the coating maker's nozzle and gun requirements rather than assuming that a promotional color-coverage percentage guarantees suitability.
Specifications and included details
- Model: LPH400-144LVX; code: 5671.
- 1.4 mm nozzle and gravity feed.
- Included PCG6PM 600 ml plastic cup.
- Listed air consumption: 9.8 CFM.
- Listed recommendation: 16 PSI at the gun.
- Listed pattern width: 12.2 inches; fluid output: 120–130 ml/min.
Before ordering
Confirm the exact basecoat, nozzle requirement and air-supply conditions in the paint data and Iwata manual. Check the cup material's permitted cleaning products. No comparative speed, color-match accuracy or coverage of every metallic/pearl formula is guaranteed.
Product questions and answers
Which cup is supplied with package 5671?
The inventory identifies a PCG6PM 600 ml plastic gravity cup with the gun.
Is this the 1.5 mm LPH400-154LVX?
No. Package 5671 identifies LPH400-144LVX with a 1.4 mm nozzle. Select by the exact gun configuration.
Does LVX naming establish suitability for every metallic basecoat?
No. Confirm the specific coating's gun and nozzle requirements; the configuration does not replace its technical data.
Browse Paint & Body to compare other options.
