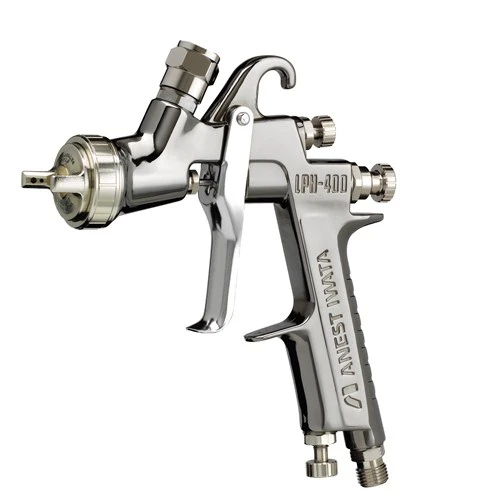

Iwata LPH400-124LV 5541 Gun with 600 ml Plastic Cup
The 5541 configuration combines a 1.2 mm LPH400-124LV with a 600 ml plastic gravity cup. Its LV setup differs from the neighboring LVX basecoat packages, so select the exact nozzle and air-cap configuration required by the coating. The listed package also includes a cleaning brush and manual, although the main photo displays only the cup.
Specifications and included details
- 1.2 mm nozzle; LPH400-124LV gun.
- 600 ml plastic gravity cup included.
- Cleaning brush and instruction manual listed.
- Listed inlet pressure: 16 PSI.
- Listed air consumption: 9.5 CFM.
- Listed pattern width: 10.2 inches; fluid output: 90 ml/min.
Before ordering
Confirm the manufacturer's pressure conditions and delivered compressor airflow rather than comparing tank sizes. Match the LV configuration and 1.2 mm nozzle to the coating technical data. No guarantee of universal basecoat, clearcoat or solvent compatibility follows from the product's HVLP designation.
Product questions and answers
Is the gun included when the main picture shows only a cup?
Yes. The inventory identifies the LPH400-124LV gun, 600 ml plastic cup, cleaning brush and manual.
Is this the same LVX basecoat configuration as 5671?
No. This listing identifies LPH400-124LV with a 1.2 mm nozzle; 5671 identifies LPH400-144LVX with a 1.4 mm nozzle.
Can a compressor with a large tank automatically meet the air requirement?
No. Compare delivered airflow with the listed 9.5 CFM demand at the manufacturer's required pressure conditions.
