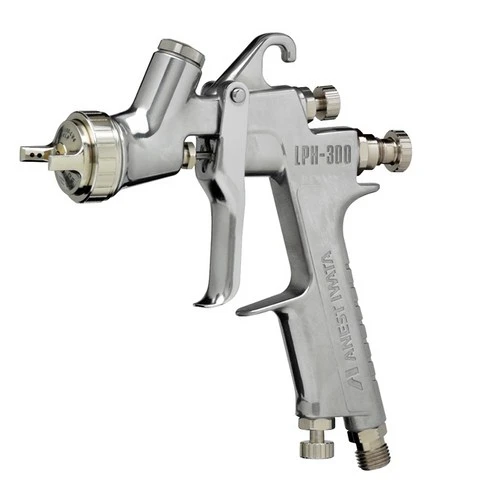

Iwata LPH300-184LV 3962 Gun with 700 ml Aluminum Cup
The 3962 package combines the 1.8 mm LPH300-184LV gun with a 700 ml aluminum PCG7D-2 cup. The larger metal cup distinguishes it from the 600 ml plastic-cup package 3963. For setup planning, the listed 8.5 CFM consumption is a separate requirement from cup volume and compressor tank size.
Specifications and included details
- Model: LPH300-184LV; package code: 3962.
- 1.8 mm nozzle and gravity feed.
- Included PCG7D-2 700 ml aluminum cup.
- Listed air consumption: 8.5 CFM.
- Listed atomizing air pressure: 18–19 PSI.
- Listed fluid output: 130 ml/min; pattern width: 9.0–9.1 inches.
Before ordering
Confirm the Iwata manual's pressure measurement conditions and continuous air-supply requirements, then match the coating technical data. The package is explicitly identified with a cup; verify exact included parts when comparing with gun-only code 3960. The listed pattern and fluid figures do not guarantee results for every coating, and no regulatory approval is inferred here.
Product questions and answers
How does package 3962 differ from 3963?
3962 lists a 700 ml aluminum PCG7D-2 cup; 3963 lists a 600 ml plastic PCG600P-2 cup. Both identify the 1.8 mm LPH300-184LV gun.
Is 3962 the gun-only code?
No. The description identifies 3962 with the cup and separately mentions 3960 as gun only. Confirm the selected package at ordering.
Does the 700 ml cup determine compressor compatibility?
No. Compare delivered airflow with the listed 8.5 CFM demand and the manufacturer's pressure conditions. Cup volume describes material capacity.
