Iwata LPH300-134LV 3957 Gun with 700 ml Cup
The 3957 package combines an LPH300-134LV gravity-feed spray gun with a 700 ml aluminum cup. The 1.3 mm nozzle and center-post cup arrangement distinguish this setup from siphon guns and gun-only listings. Use the included-component list when planning the purchase; the main photo shows the gun without its cup attached.
Specifications and included details
- Model: LPH300-134LV; part number: 3957.
- Fluid nozzle: 1.3 mm.

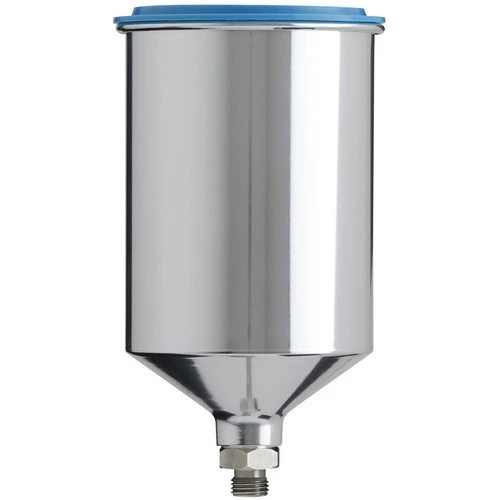

- Included 700 ml aluminum gravity cup, identified as PCG7D2.
- Cleaning brushes, wrench and instruction manual listed.
- HVLP gun with LV technology.
- Stainless-steel nozzle and paint passage; heat-tempered needle.
Before ordering
Confirm model-specific pressure measurement conditions and required air delivery in the Iwata manual rather than using a general HVLP setting. Match the coating technical data to the nozzle and wetted components. No finish, overspray reduction percentage or universal solvent compatibility is guaranteed here.
Product questions and answers
Is the cup included even though it is absent from the main photo?
Yes. The written inventory explicitly lists the 700 ml PCG7D2 aluminum gravity cup with the gun.
What other accessories are listed in the package?
Cleaning brushes, a wrench and an instruction manual are listed alongside the gun and cup.
Can I select pressure from a generic HVLP recommendation?
Use the LPH300-134LV manual and the coating requirements. Confirm whether a pressure figure is measured at the inlet or elsewhere and verify the available airflow.
