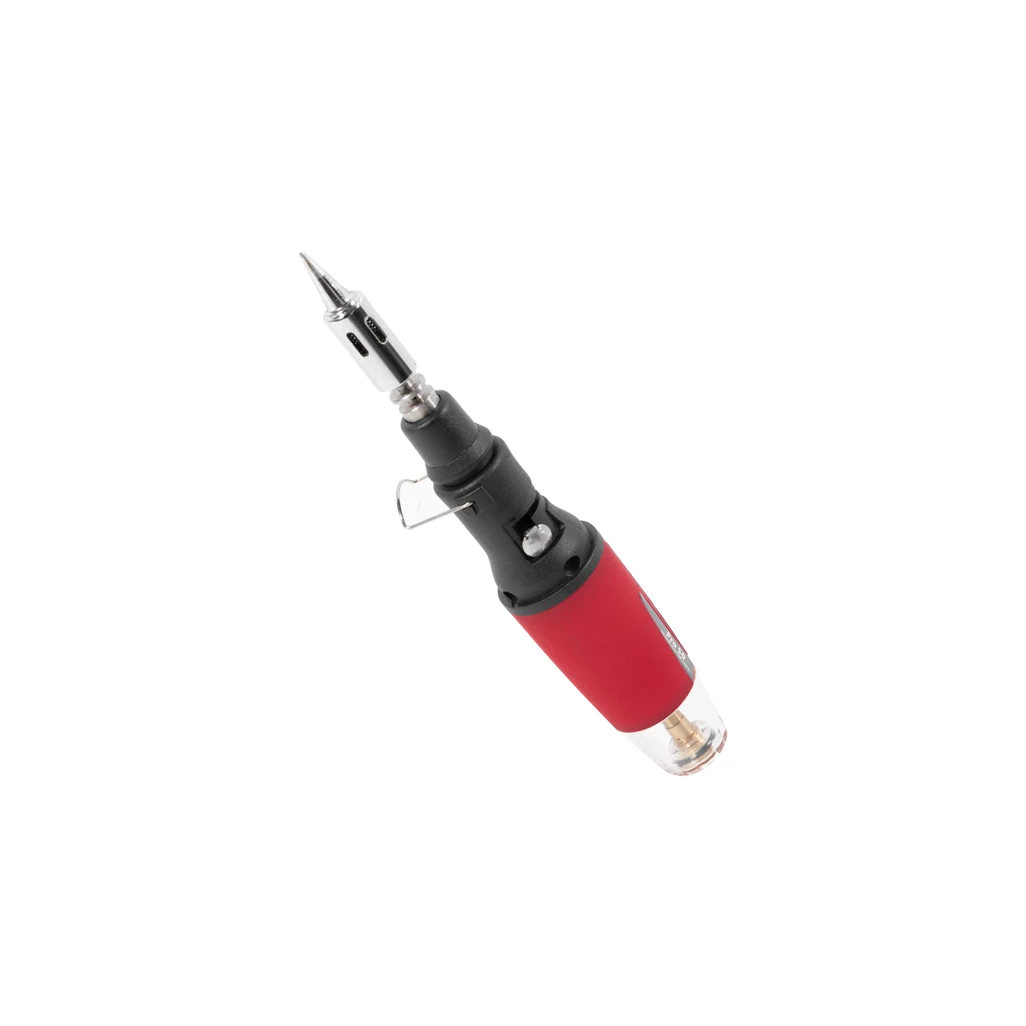

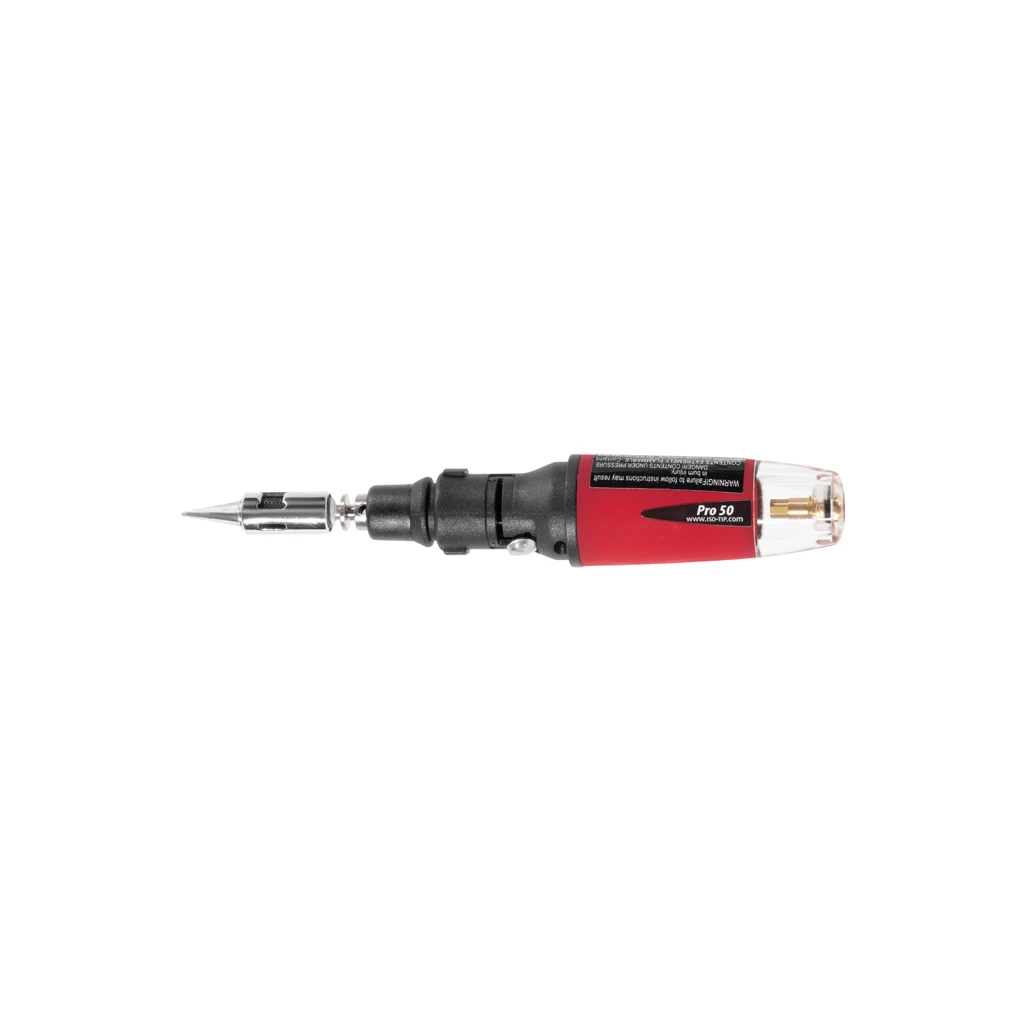

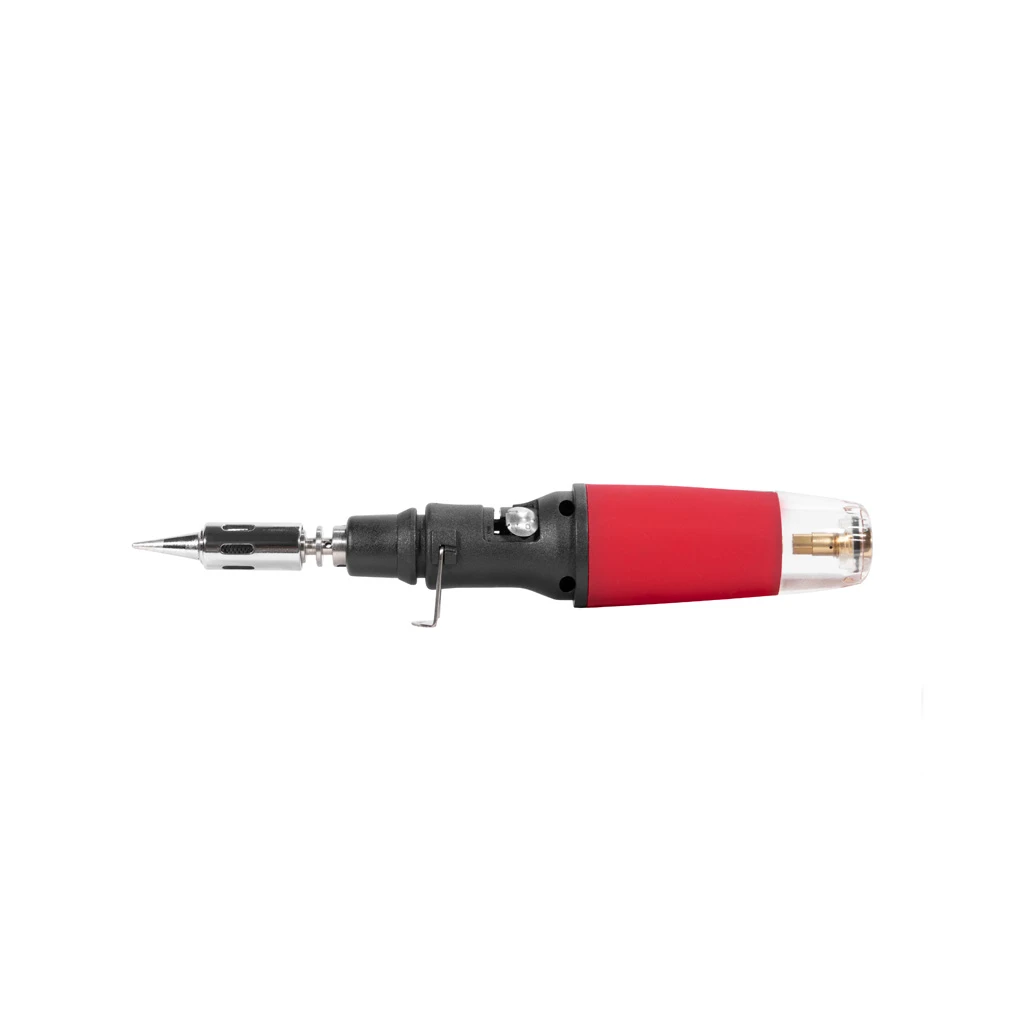

Iso-Tip Pro 50 Butane Soldering Iron Kit (7971)
The Iso-Tip Pro 50 Butane Soldering Iron Kit (7971) is a highly versatile and portable tool designed for a wide range of applications, from intricate electronics to general hobbyist tasks. As a butane-powered soldering iron, it offers complete freedom from power cords and outlets, making it an ideal choice for on-the-go projects, field repairs, and use in hard-to-reach areas. The kit is expertly engineered to provide reliable performance, combining the convenience of portability with the power of a professional-grade tool. Its multi-functionality allows it to serve as a soldering iron, a hot knife, or a heat tool by simply changing the tip, providing a comprehensive solution for various heating needs.
KEY FEATURES AND BENEFITS:
Cordless Portability: The butane power source provides complete freedom from cords and outlets, allowing for use anywhere, anytime. This is a significant benefit for mobile repairs, outdoor projects, and working in locations where power is not readily available.
Rapid Heat-Up: The iron heats up in just 20 seconds, minimizing wait time and allowing you to get to work quickly and efficiently on your tasks.
Adjustable Temperature Control: The user can adjust the soldering temperature between 410°F and 750°F, providing precise control for different materials and applications, from delicate electronics to thicker wires. The torch setting reaches up to 2400°F for more demanding tasks.
Extended Run Time: A single fill of butane provides a continuous run time of up to 30 minutes, ensuring you can complete your tasks without frequent refills.
High Power Equivalence: This tool is equivalent to a 30-70W electric soldering iron, providing robust performance for a wide range of soldering applications.
Type: Butane Soldering Iron
Power Equivalent: 30-70W electric soldering iron
Soldering Temperature: 410°-750°F
Torch Temperature: 2400°F
Run Time: Up to 30 minutes
Size: 5.5″ with tip, 6.0″ with protective cap

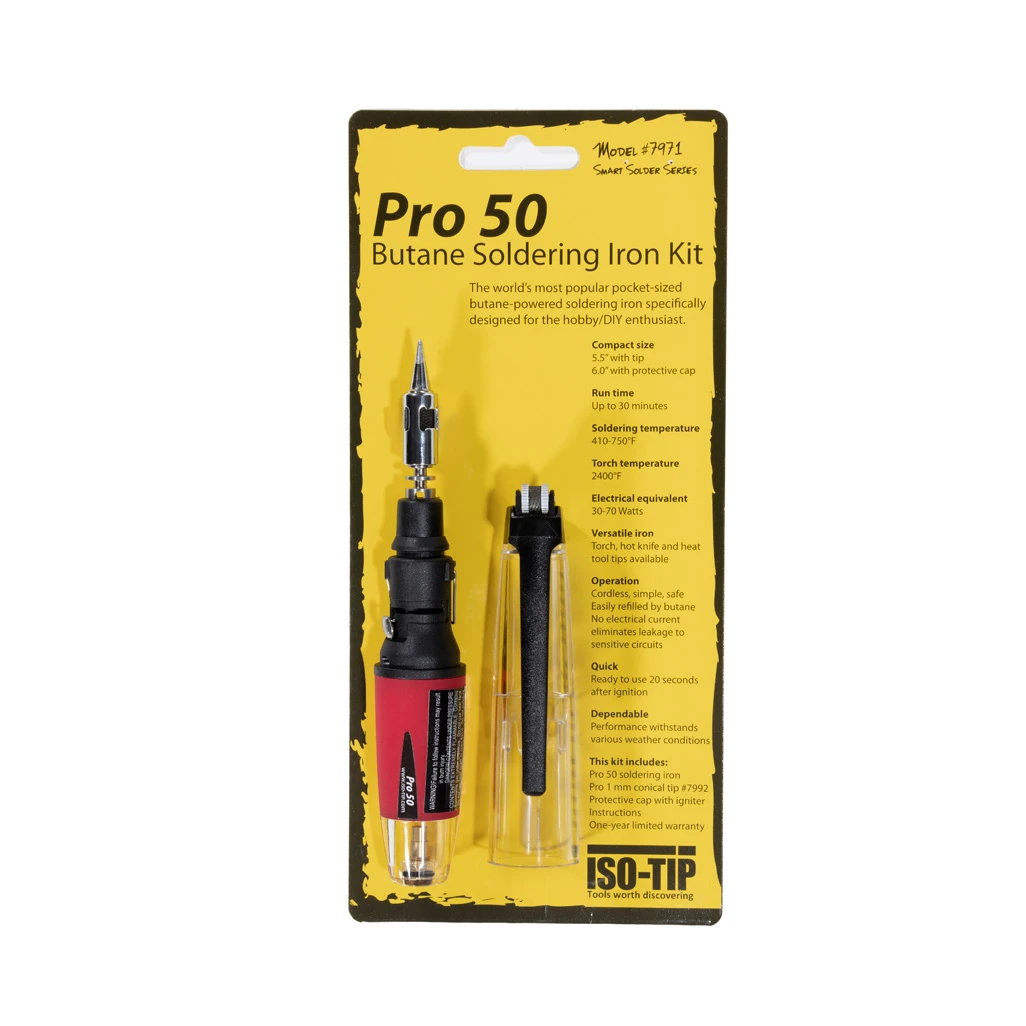

Kit Includes: Butane Soldering Iron, 1 mm Conical Tip (Model #7992), Protective Cap with Igniter, and an Instruction Manual
Fill the tank: Fill the butane soldering iron with high-quality butane fuel in a well-ventilated area. Follow the instructions on the butane canister.
Ignite the iron: Remove the protective cap, which doubles as the igniter. Push the ignition button located on the cap to light the iron. The tip should heat quickly.
Adjust the temperature: Use the adjustment knob on the body of the iron to set your desired soldering temperature.
Begin soldering: Once the tip is hot, apply solder to the joint and start working.
Extinguish the flame: After use, release the ignition button to turn off the iron and place the protective cap back on for safety and storage.
BENEFITS OF USING THE ISO-TIP PRO 50 BUTANE SOLDERING IRON KIT (7971):
Versatility: Can be used for soldering, heating, or as a torch, making it a valuable multi-purpose tool.
Portability: Compact size and cordless operation allow use in tight spaces or remote areas without outlets.
Efficiency: Quick heat-up time and extended run time ensure faster, uninterrupted work.

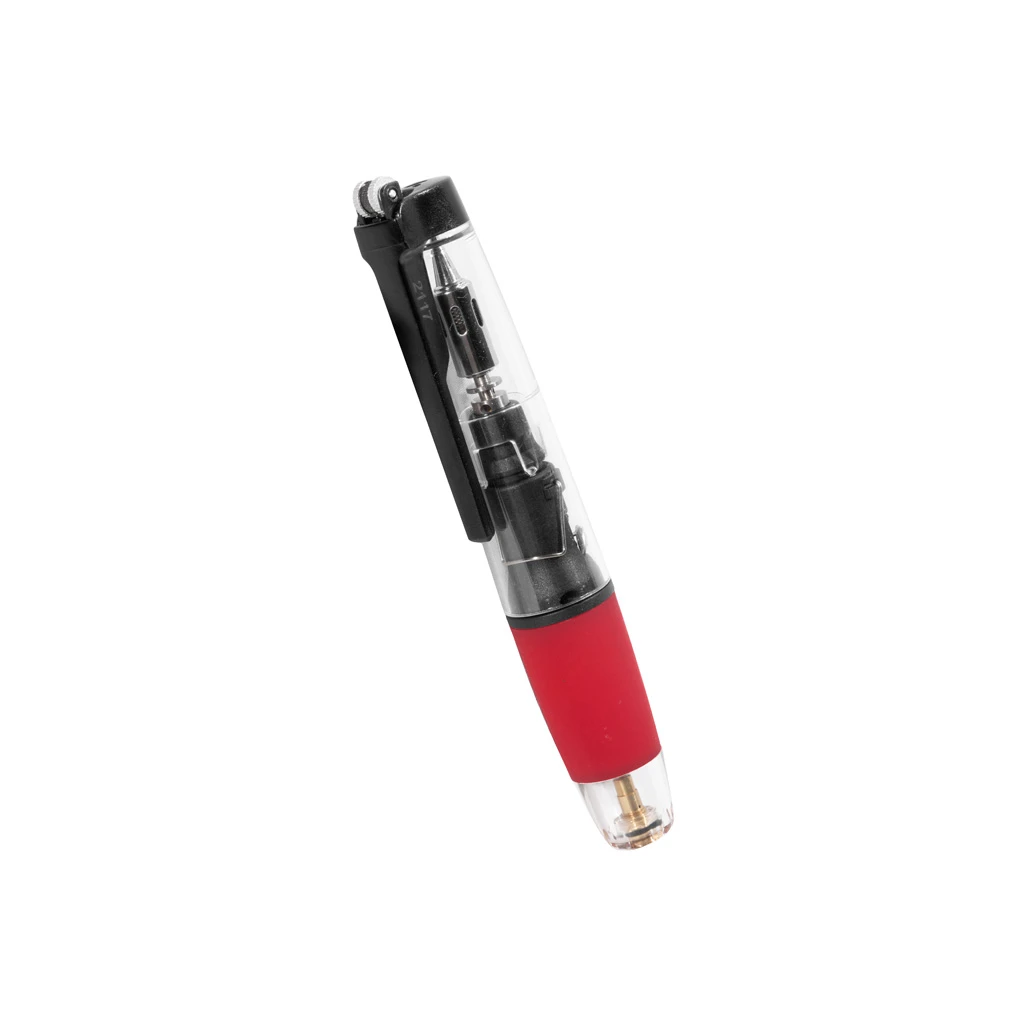

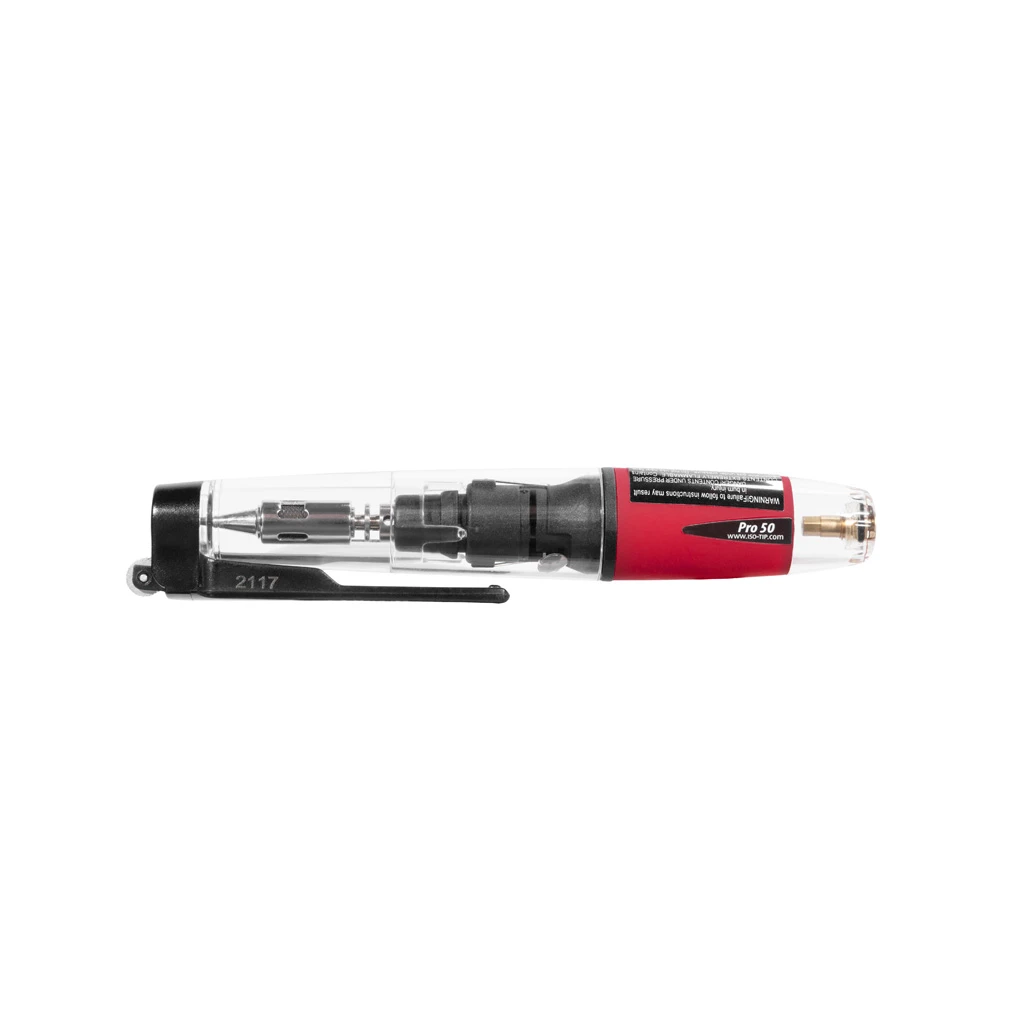

Safety: The protective cap doubles as an igniter and ensures safe storage when not in use.
Reliability: Provides consistent performance for both simple and complex projects.
Butane-powered cordless operation for mobility
Heats up in under 20 seconds for fast use
Lightweight design for comfortable handling
Precision heat control for detailed applications
Protective cap with built-in ignition function
Operates for up to 30 minutes per refill
Performance comparable to 30-70W electric soldering irons
Comes with a 1 mm conical tip for fine soldering
Perfect for electronics, automotive, and craft work
Product identification
- Brand: Iso-Tip
- Model / MPN: 7971
