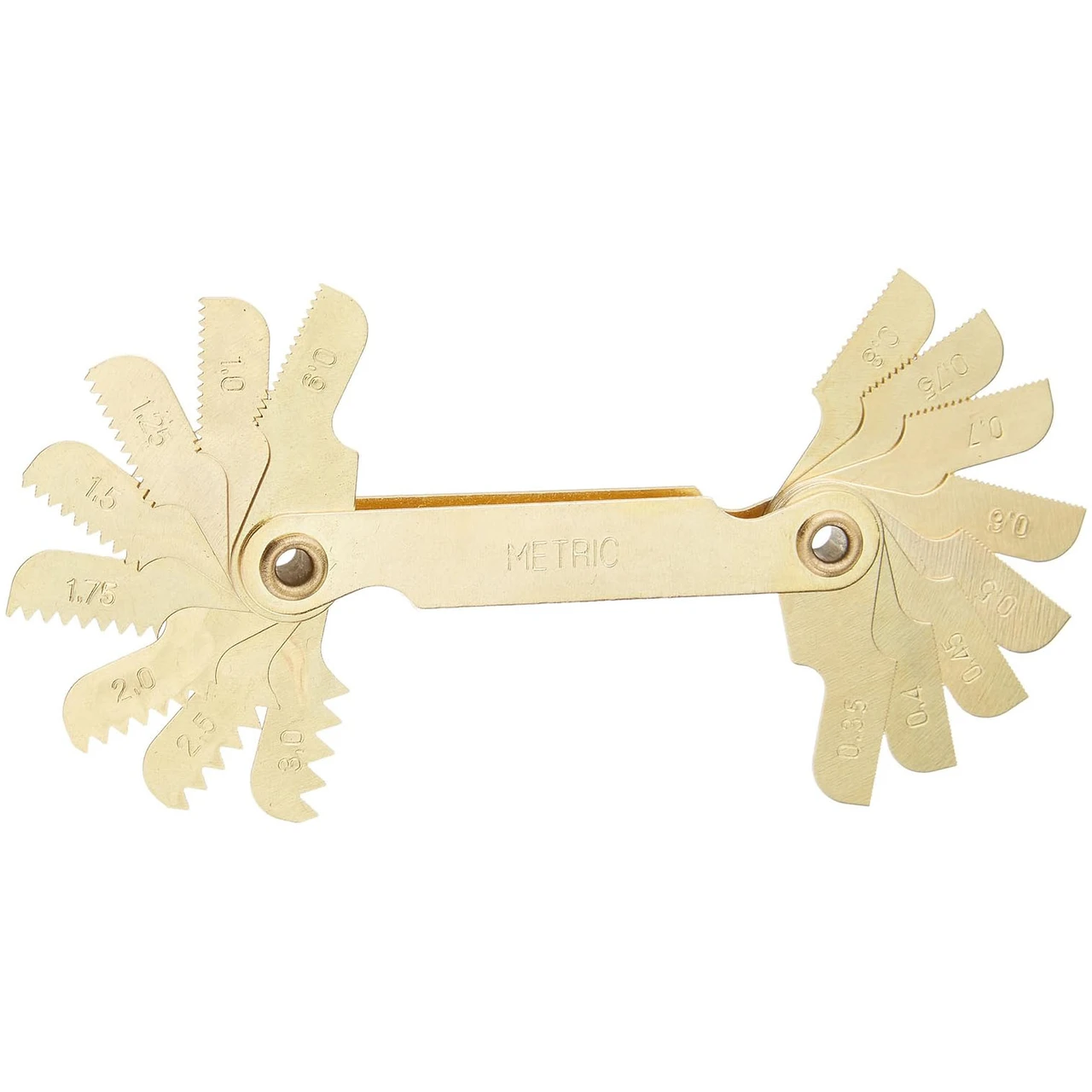

Irwin .35 – 3TPI 16-Leaves Metric Screw Pitch Gauge (11016ZR)
The Irwin .35 – 3TPI 16-Leaves Metric Screw Pitch Gauge (11016ZR) is an essential tool for anyone who regularly works with threaded fasteners. This reliable and easy-to-use gauge is designed to quickly and accurately identify the pitch of metric screws and threaded holes. It serves as a practical reference, eliminating guesswork and ensuring you select the correct thread size for your application. Whether you're a professional mechanic, machinist, or hobbyist, this gauge helps maintain precision in your work, from assembling machinery to performing repairs. Its compact design and clear markings make it a convenient and important addition to any toolbox.
KEY FEATURES AND BENEFITS:
16 Distinct Leaves: Each leaf has a precisely machined thread profile, measuring metric thread pitches from 0.35mm to 3mm, covering common sizes.
Durable Steel Construction: Built for longevity and consistent reference use.
Compact Hinged Case: Leaves are hinged together for easy storage and portability.
Clear Markings: Each leaf is clearly stamped for quick pitch identification, saving time during projects.
Non-Precision Measuring Tool: Ideal for quick and easy reference to determine thread size.
Measurement Type: Metric
Measuring Range: 0.35 to 3 TPI (threads per inch)
Number of Leaves: 16
Preparation: Select a clean screw or threaded hole free from dirt, rust, or debris.
Selection: Unfold the leaves and choose one that seems to match the screw threads.
Matching: Place the selected leaf onto the screw threads; the leaf should sit flush without gaps or wobbling.
Verification: If it doesn't fit correctly, try another leaf until no light shows between leaf teeth and screw threads.
Reading: Once matched, read the pitch number stamped on the leaf, indicating the thread pitch in millimeters.
BENEFITS OF USING THE IRWIN .35 – 3TPI 16-LEAVES METRIC SCREW PITCH GAUGE (11016ZR):
Prevents cross-threading and fastener damage by ensuring correct bolt or screw selection.
Saves time with fast and straightforward thread size identification.
Reliable tool for verifying thread types to support proper assembly and repairs.
Compact and portable design allows easy transport to various workspaces.
Compact folding design for convenient storage.
Clear, stamped markings on each leaf for quick pitch identification.
Hinged leaves with a secure locking mechanism.
Precision-machined thread profiles for accurate reference.
Steel construction resists bending and wear.
Provides a visual and physical reference for thread forms.
Product identification
- Brand: Irwin
- Model / MPN: 11016ZR
