IPA 9004M Mobile Smart MUTT Diagnostic Tester PRO Edition (7-Way Pin)
Innovative Products of America 9004M Mobile Smart MUTT PRO Edition (7-Way Flat Pin)
A portable, electronic trailer tester that instantly tests lights and electric brakes on light-duty type trailers (7-way flat, 6-way round, and 4/5 pin).
ELECTRICAL TESTING(12/24V Operation)
Power lights and electric brakes: Manually, All-On, Auto Scan, or by Remote Control from over 200 ft. away
Audible and visual alerts: cross, open, overloaded and short circuit indication
Trailer wiring and circuit testing
Diagnostic Pulsar® mode allows safe overloaded/short circuit repair
Amperage readout and range (-/ 20 amp range)
Remote control allows for one-man testing
(2x) 12-button remote controls test all trailer electric circuitry and air brake actuation, 200 ft. range
Sync multiple (12) remotes to one unit

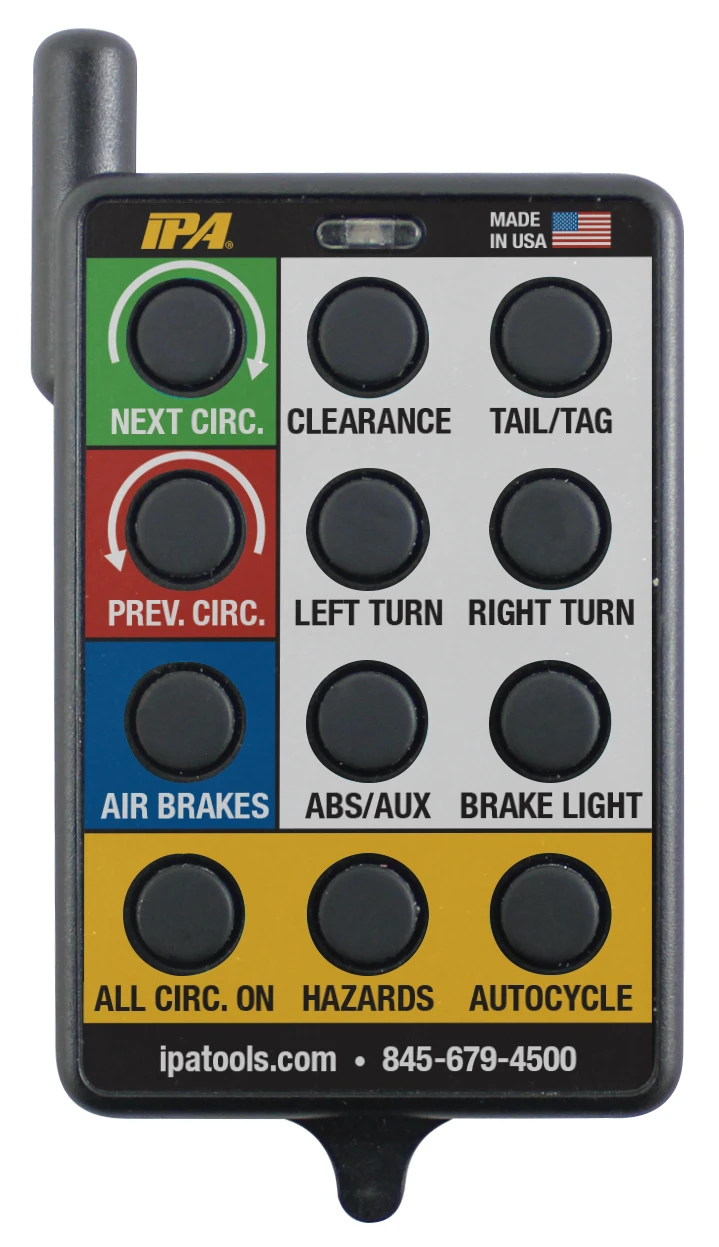

(2x) 12-Button Remote Control (#MUT-RM12-4A)
10-Amp Smart Battery Charger (#KCHG-121001)

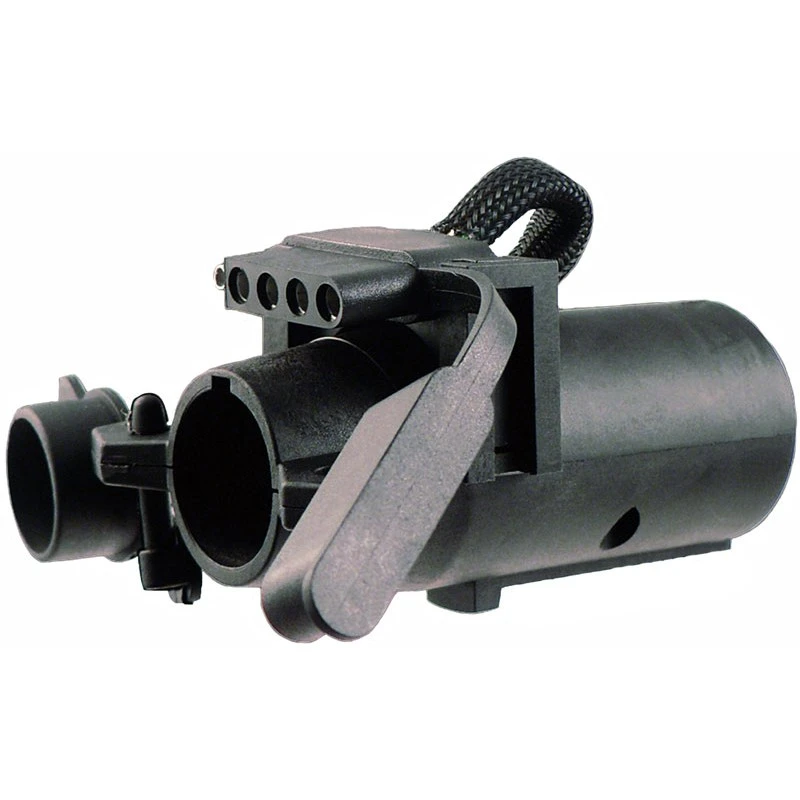

3-Way Trailer Adapter (#8000)
Rain Cover (#CVR-0001)
Connection Type: 7-Way Flat Pin, 6-Way Round, 4/5 Pin
Power Input: 12/24V DC
Battery Requirements: Group 31 or Similar (Battery Not Included)
Output: 20 Amps @ 12/24V DC
Controls: Manual, Remote, Automatic
Material: Powder-Coated Steel
Dimensions: L: 17" W: 14" H: 30"
Product identification
- Brand: Innovative Products of America
- Model / MPN: 9004M
