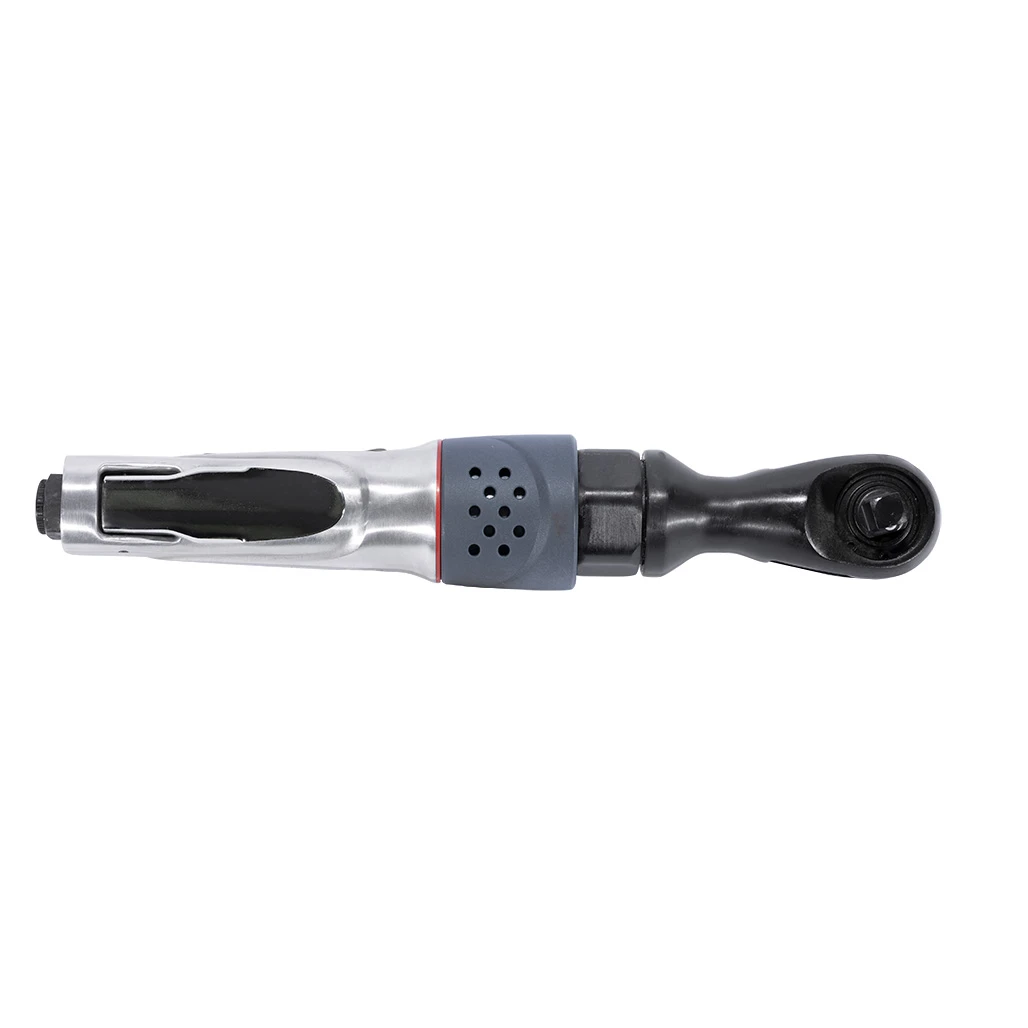

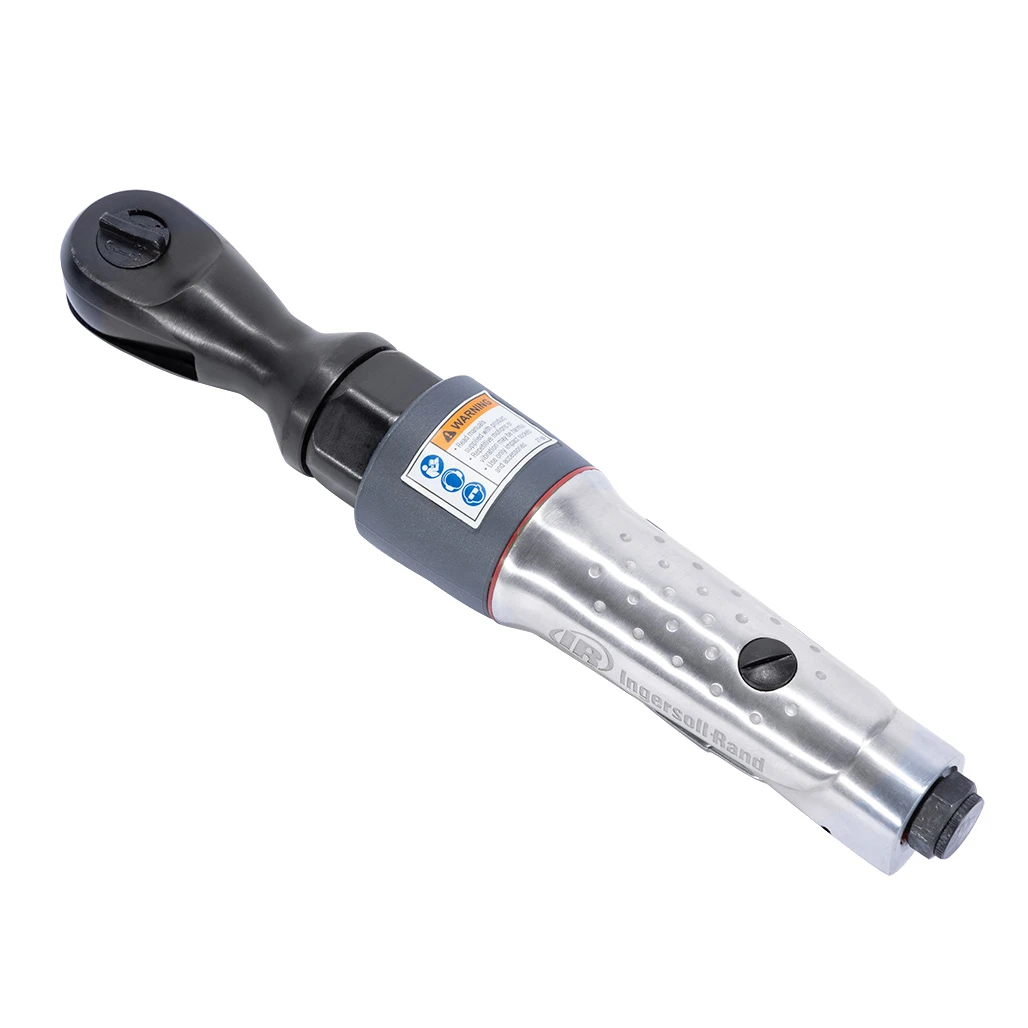

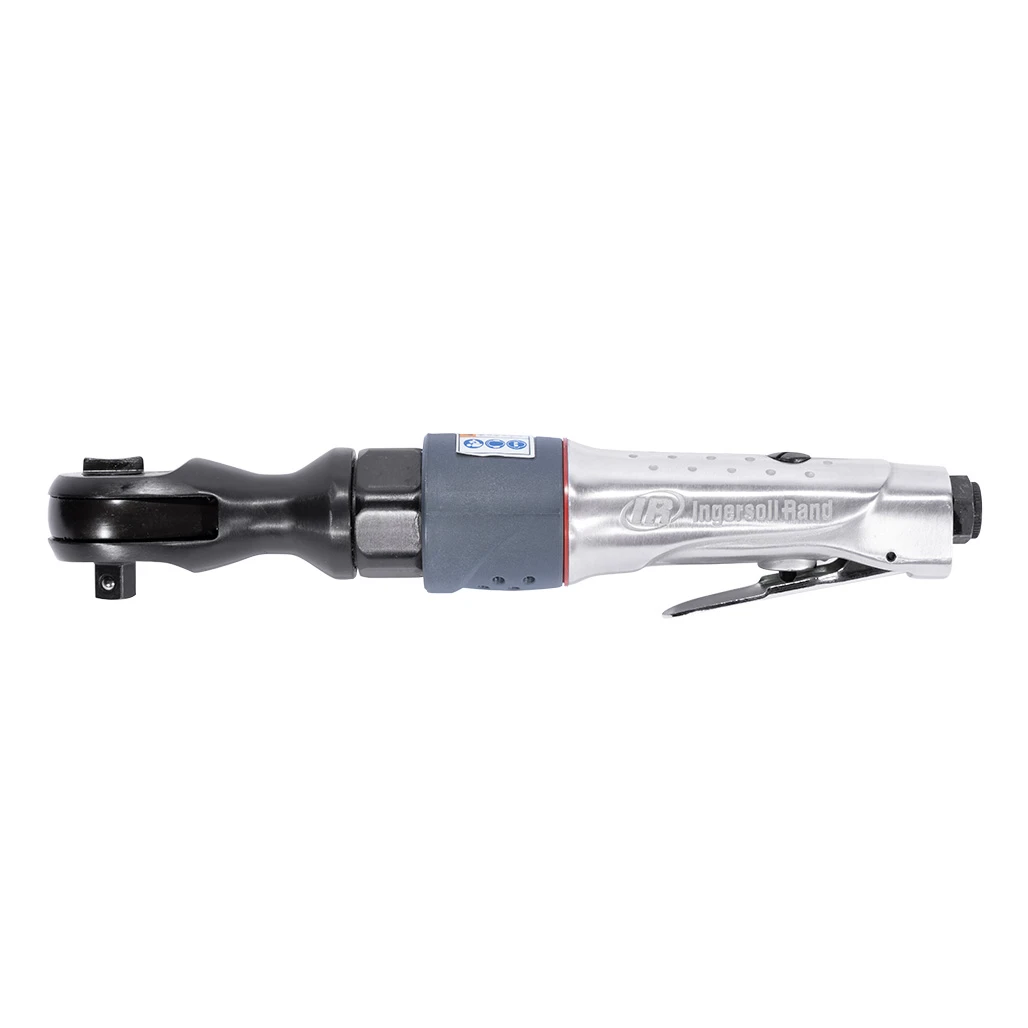

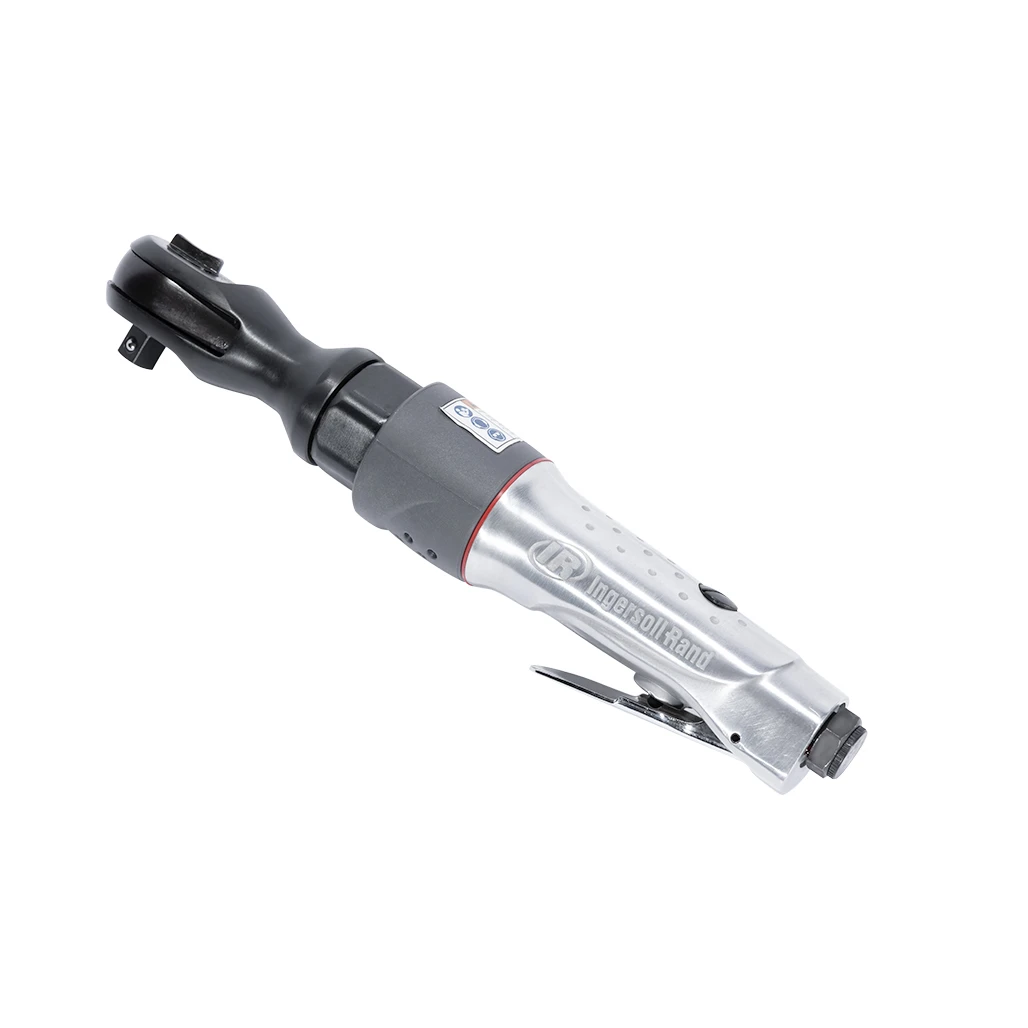

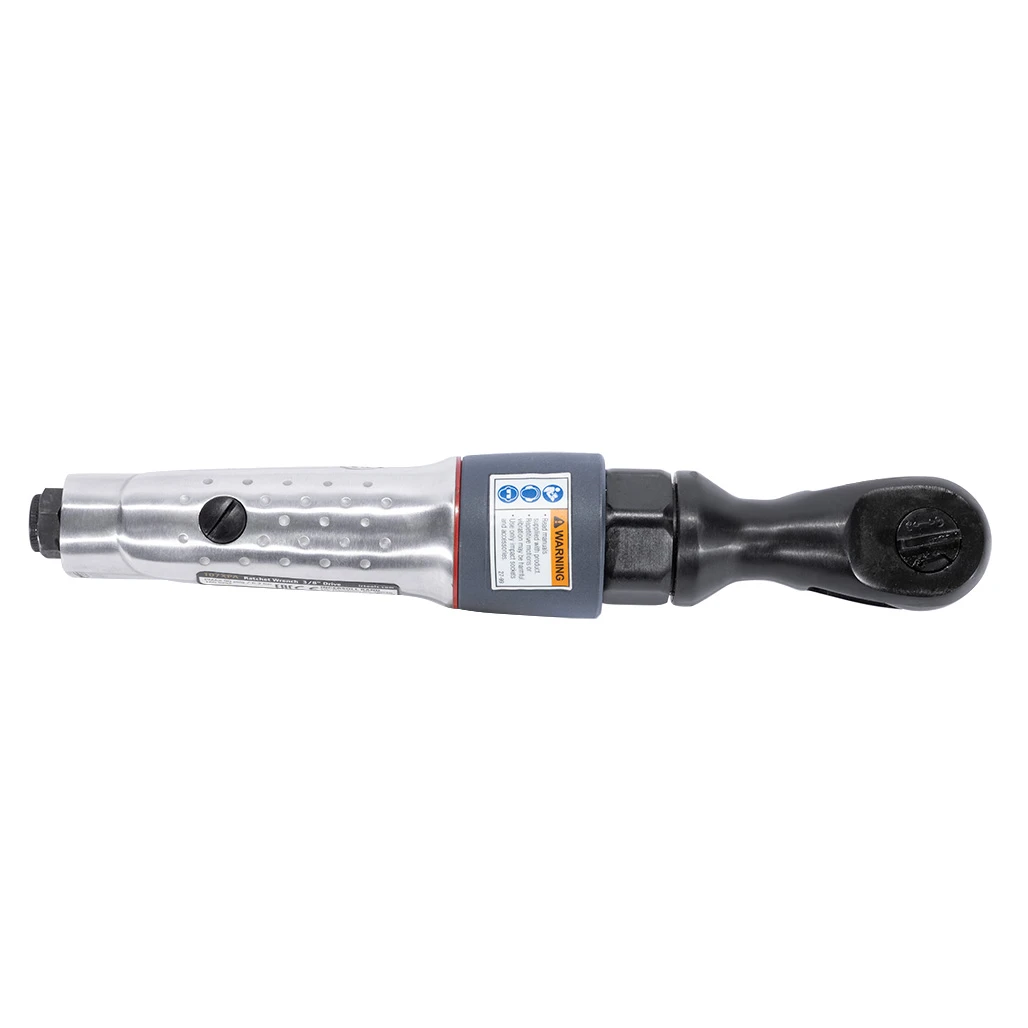

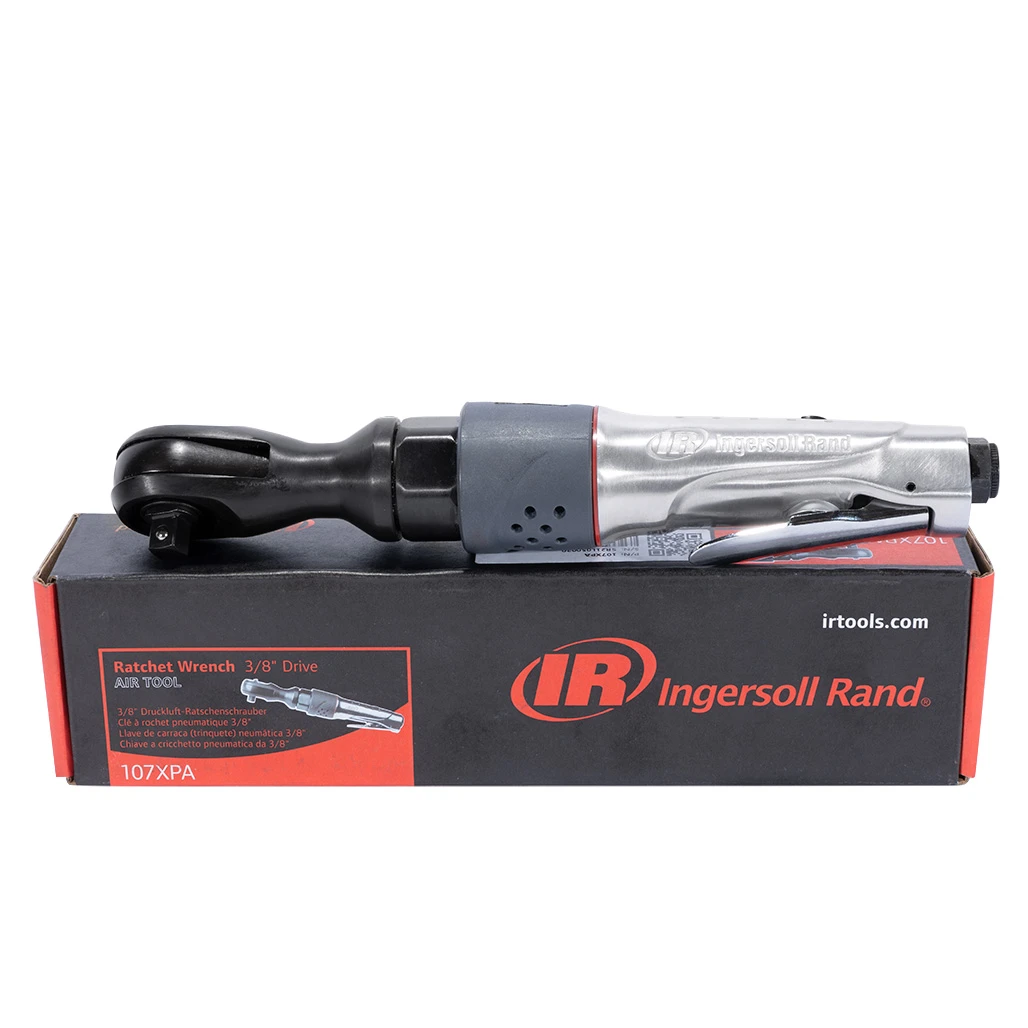

Ingersoll Rand 107XPA 3/8-Drive Air Ratchet
Ingersoll Rand 107XPA is a 3/8-inch-drive air ratchet with a ball-detent socket retainer. Listed maximum fastening torque is 54 ft-lb and free speed is 160 RPM. Its 360-degree adjustable exhaust lets the exhaust direction be selected, while an 11-inch overall length helps check reach. The supplied air requirements are 90 PSI, 4 CFM, a 1/4-inch NPT female inlet and minimum 3/8-inch hose.
Specifications and included details
- 3/8-inch square drive with ball-detent socket retainer.
- Maximum fastening torque: 54 ft-lb; free speed: 160 RPM.
- 360-degree adjustable exhaust and 11-inch overall length.
- Listed air setup: 90 PSI, 4 CFM, 1/4-inch NPT female inlet and minimum 3/8-inch hose.
Before ordering
Match the air supply and hose to the stated requirements. The adjustable exhaust is separate from the socket-retaining ball detent and is not a torque-setting control.
Product questions and answers
What does the ball detent do?
It is the listed socket-retaining feature on the 3/8-inch square drive.
Does 360-degree adjustment describe the ratchet head?
Here it describes the adjustable exhaust direction, not a swiveling ratchet head.
Is 54 ft-lb a preset tightening value?
It is listed as maximum fastening output, not a calibrated final-tightening setting.
