Ingersoll Rand air ratchet details

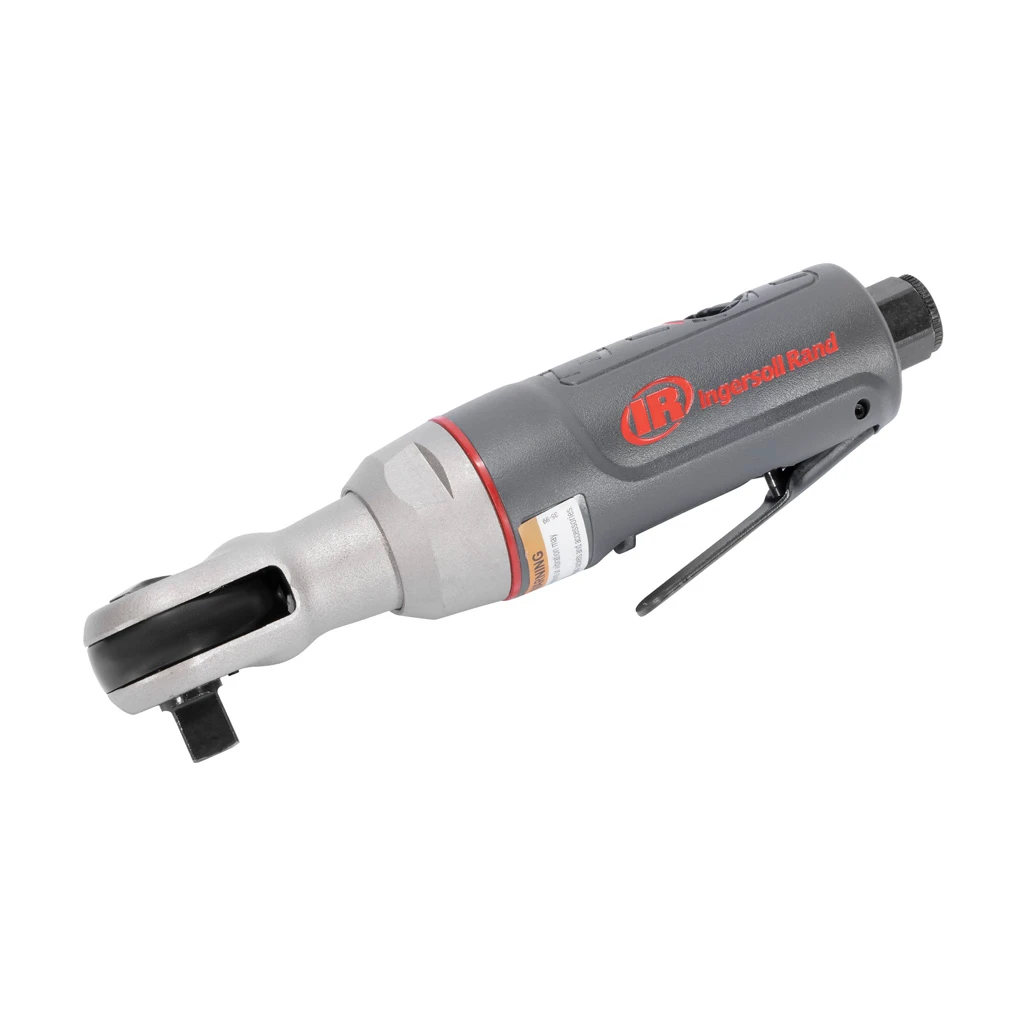

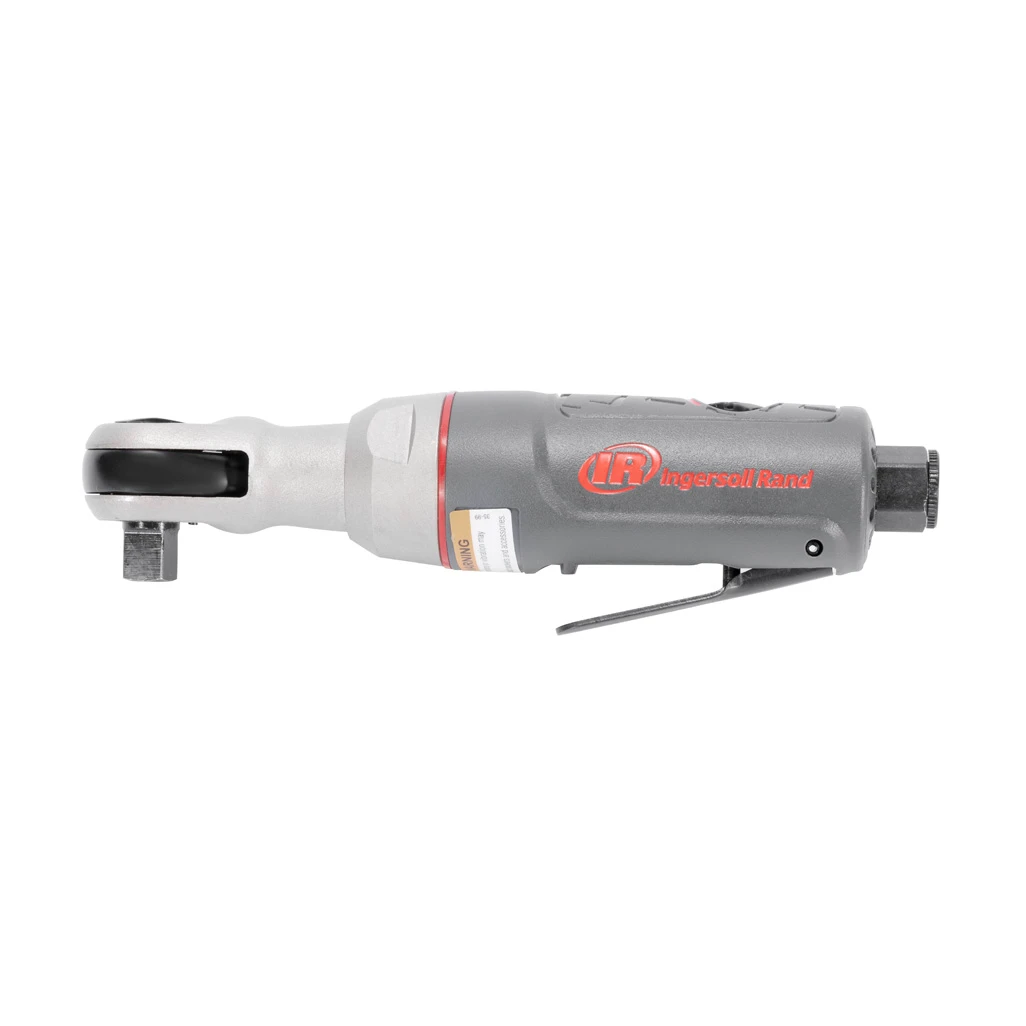

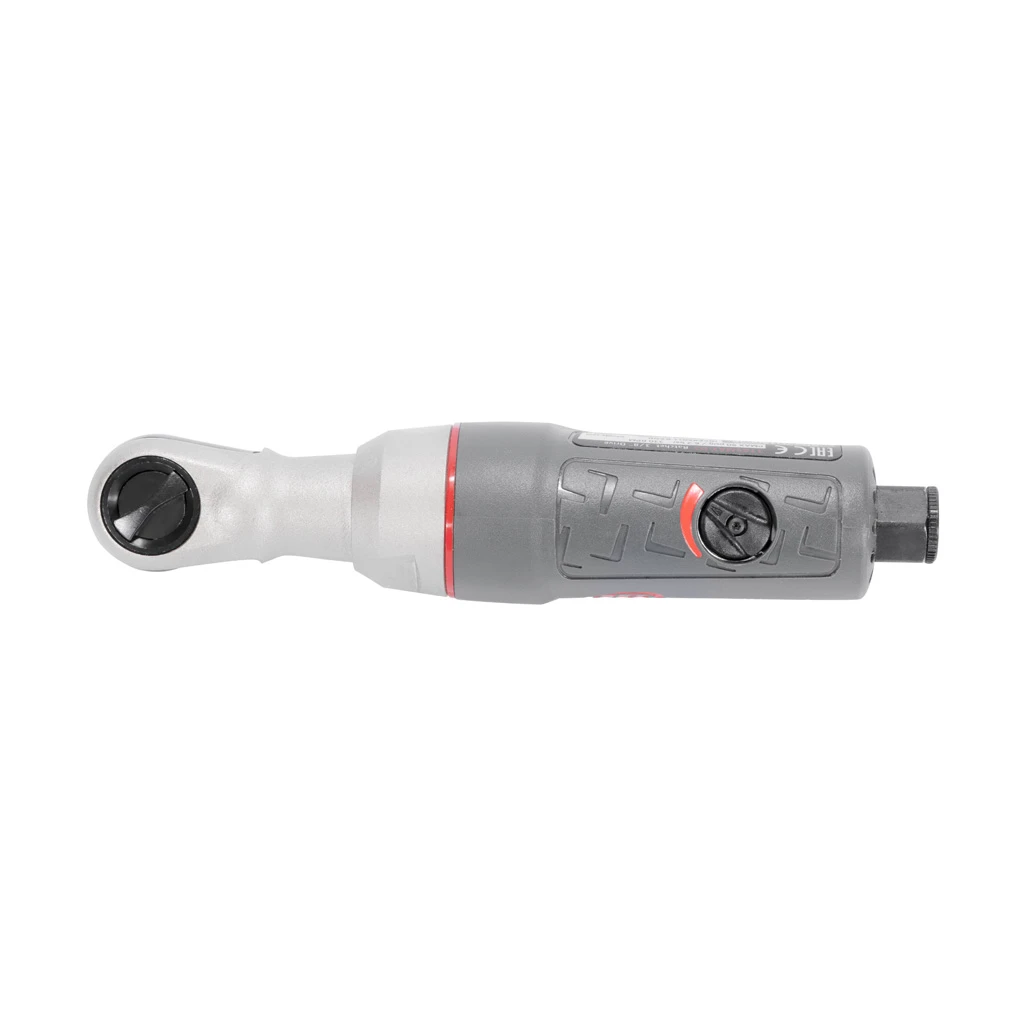

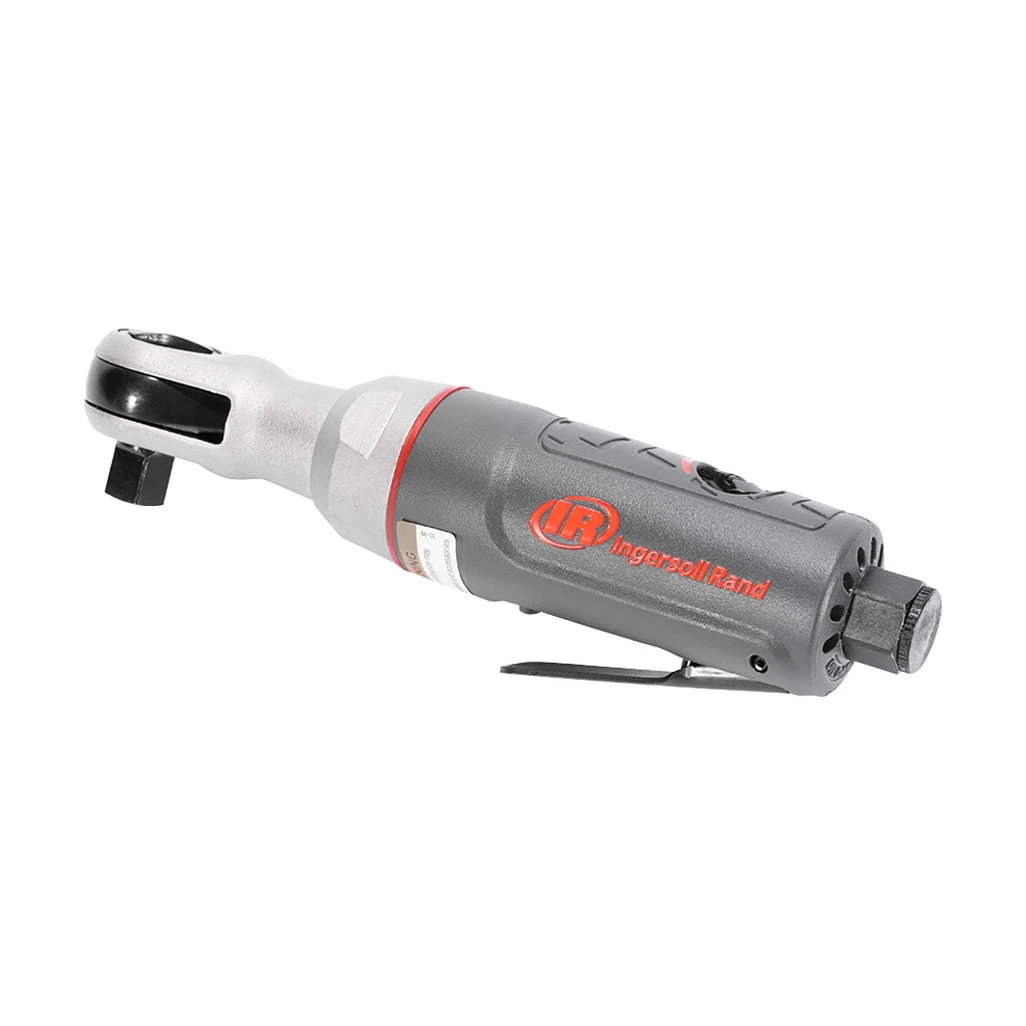

Ingersoll Rand Air Ratchet 1/4-In Drive Maximum Torque 30 ft-lb (1105MAX-D2)
KEY FEATURES & BENEFITS:
Durable head construction provides more consistent performance
Nickel-plated housing provides enhanced corrosion resistance
Lightweight, ergonomic composite housing protects from cold air
Compact size allows access to most tight spaces
Power regulator settings helps users adjust to applications
Variable-speed lever adjusts power and speed.
Rear exhaust directs air away from the operator
TECHNICAL SPECS:
Drive Size: 0.25” square
Air consumption at load: 20 CFM
Air Inlet: 1/4” NPT female
Average air consumption: 3.5 CFM
Max./Min. Air Pressure: 90 psi
Free speed: 300 RPM
Maximum torque: 30 ft.-lbs.
Min. Hose Size: 0.375”
Sound Pressure/Power: 88.9/99.9 dBA
Vibration level/Measurement Uncertainty: 5.7/1.0 m/s²
Weight: 1.43 lbs.
Working Torque: 5-25 ft-lbs.
Product identification
- Brand: Ingersoll Rand
- Model / MPN: 1105MAX-D2
Air ratchet 1/4: see the listed specifications for this model.
