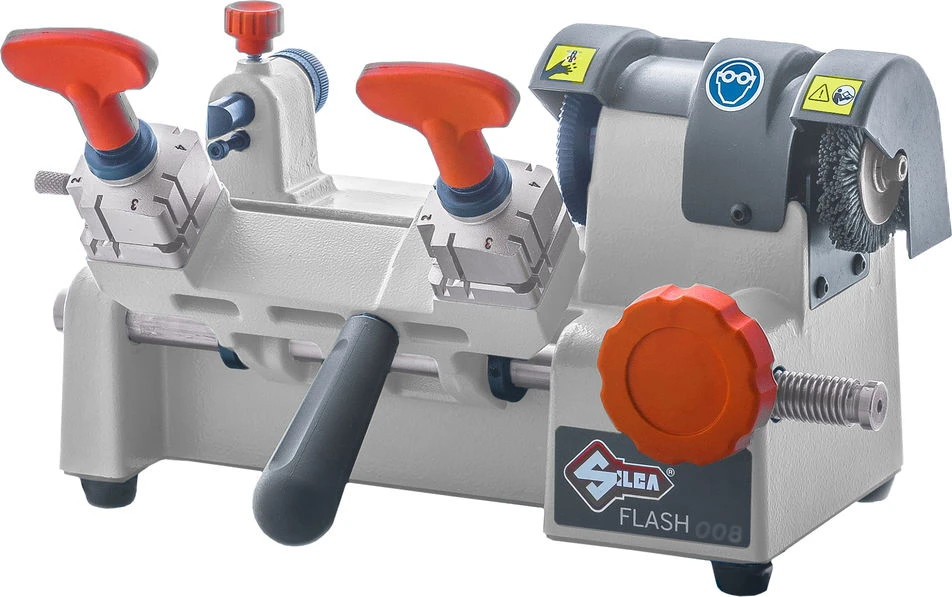

Ilco Flash 008 Portable Manual Key Cutting Machine – Duplicate Edge Cut Key (Model FLASH008)
The Flash 008 will easily duplicate most edge cut cylinder, cruciform, large bow and long blade keys; including the larger, oversize style automotive keys.
Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys
Smooth jaw rotation by simply twisting into position
Slotted jaw surfaces accommodate tip stop bars and rigid shoulder gauge design allow for greater accuracy when loading and gauging keys
Wide spacing 3 1/2 (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
Depth tracer system with micro adjustment for precise calibration
AlTiN (Aluminum Titanium Nitride) coated cutter for longer life and oxidation resistance even at temperatures up to 800
Nylon deburring brush
Electro-magnetic main safety switch with separate cutter motor switch for easy access.
Mounting bracket included for securing the machine to counter
Power Supply: 120V-60Hz
Maximum absorbed power: 1.2 Amp, 130 Watt
Cutter motor: single phase and speed
Movements: by rectified carriage shaft and rack
Tool Speed: 2900 rpm
Carriage Runs: 1.65 (42 mm)
Cutter: AlTiN coated
Dimensions: Width: 12.2 (310 mm)
Depth: 9.5 (240 mm)
Height: 8.7 (200 mm)
Weight: 14 lbs. (6.4 kg)
Product identification
- Brand: Ilco
- Model / MPN: FLASH008
