Heavy-duty clutch adapter
A special transmission jack adapter to handle heavy-duty clutch assemblies during service. Universal mounting slots in the base for a universal fit on most high and low-lift transmission jacks. The built-in splined adapter mount rotates easily to help align to the clutch spline and align the clutch to the flywheel.
Includes safety strap to hold the clutch securely when maneuvering or working.
For use with 10 and 14-splined adapters, not included. Fits OTC and other high-lift and low-lift transmission jacks
OTC Low-lift transmission jack compatibility:
1521A – 1,000-lb capacity
1522A – 2,000-lb capacity
5130 – 1,000-lb driveline lift
5019A – 2,200-lb capacity
OTC High-lift transmission jack compatibility:
1793A – 1,000-lb capacity
1794A – air-assist 1,000-lb capacity
5237 – 1,000-lb capacity
1728 – air-assist 1,000-lb capacity
TJH10 – 1,000-lb capacity
TJHP10 – air-assist 1,000-lb capacity
TJHP15 – 1,500-lb capacity
OTC Splined shaft adapters compatibility:
600011 – Splined shaft adapter; 14 Spline, 2" OD, 1.18" Pilot. For Eaton Fuller UltraShift Plus transmission.
545765 – Splined shaft adapter; 10 Spline, 2" OD, 1.18" Pilot.
48625 – Splined shaft adapter; 10 Spline, 1-3/4" OD, 1.18" Pilot.
440533 – Splined shaft adapter; 10 Spline, 1-3/4" OD, 1" Pilot.
314386 – Splined shaft extension; 1-3/4" OD x 4”. For use with splined shaft adapters on the 2 – plate clutch of Navistar 466 series engine.
218174 – Flywheel handling attachment; handles bolt spacing of 15.4” to 16.7”.
Features
- Universal mounting slots in the base for a universal fit on most high and low-lift transmission jacks
- Built-in splined adapter mount rotates easily to help align to the clutch spline and align the clutch to the flywheel.
- For use with 10 and 14-splined adapters, not included.

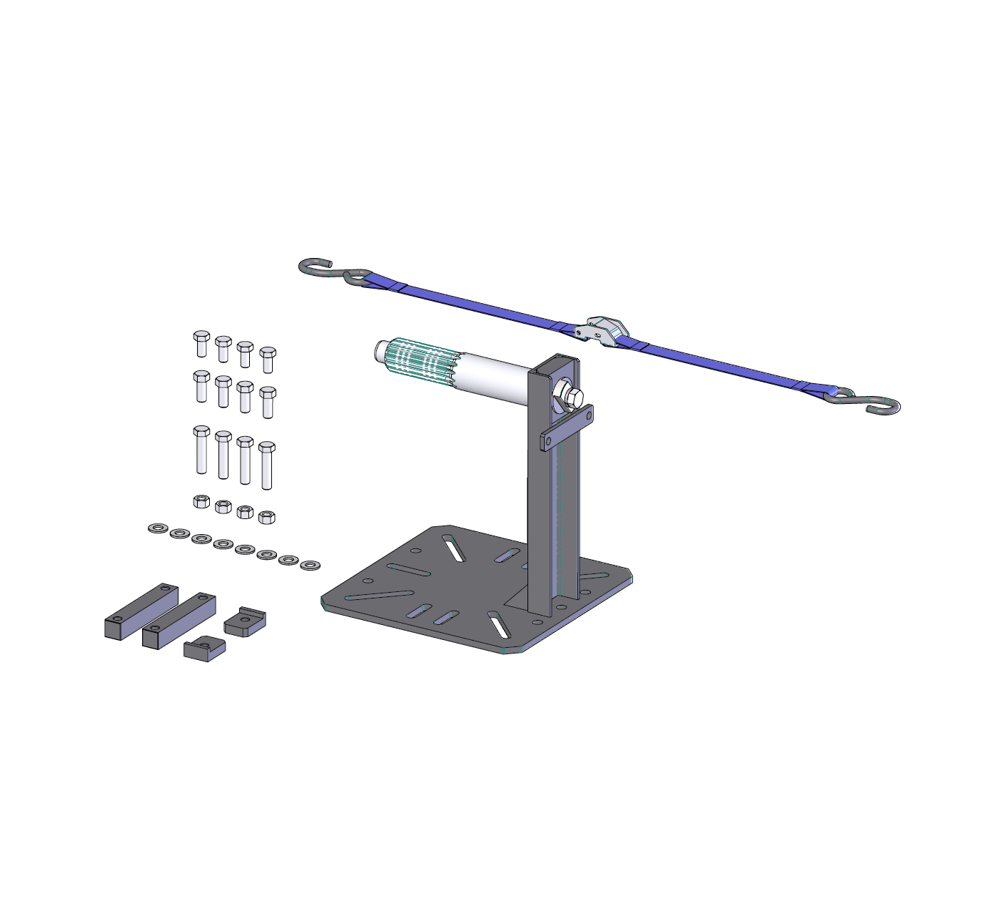

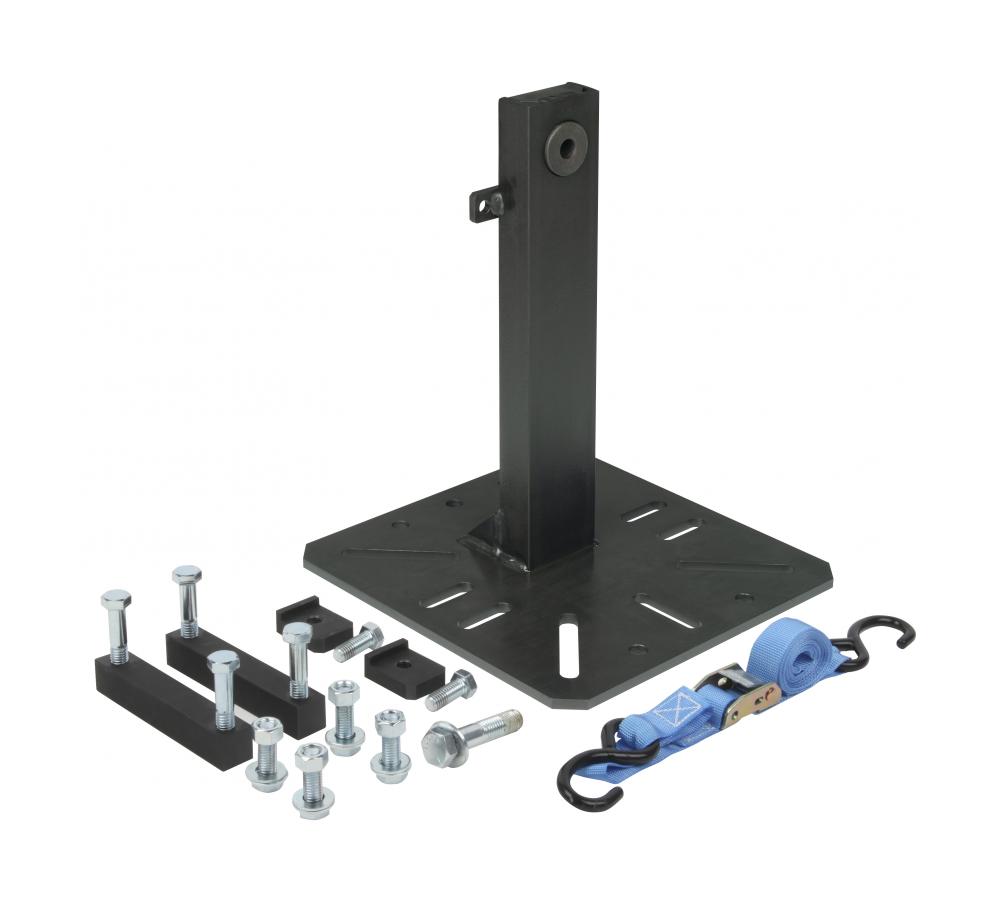

Included components
- Heavy-duty clutch adapter plate
- Cross-blocks (2)
- Spacer blocks (2)
- Mounting hardware (11 bolts, 4 nuts, washer)
Product identification
- Brand: OTC
