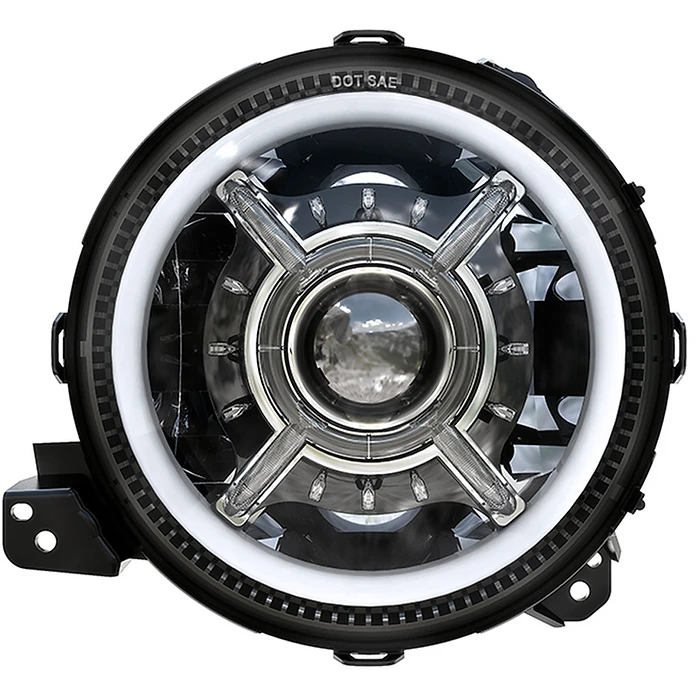

Haizer USA 9" JL Series LED Headlight w/DRL & Turn Sign. (HZR-JL-9XRS)
Upgrade your 2018 and newer Jeep Wrangler JL or 2020 and newer Jeep Gladiator JT with the Haizer USA 9" JL Series LED Headlight w/DRL & Turn Sign. (HZR-JL-9XRS). These advanced headlights are engineered to provide superior illumination and a refined appearance for your vehicle, particularly for models originally equipped with halogen lighting. Experience enhanced visibility on various terrains and in different conditions, ensuring a more confident driving experience. The integrated daytime running lights and turn signals further improve your vehicle's presence and safety. Crafted with quality materials, these headlights offer a reliable and long-lasting lighting solution that seamlessly integrates with your Jeep's electrical system.
KEY FEATURES AND BENEFITS:
Optimized Illumination: Provides significantly brighter light output compared to standard halogen headlights, improving visibility for nighttime driving and various weather conditions.
Integrated Lighting Functions: Combines high beams, low beams, a bright white daytime running light (DRL), and amber turn signals into a single, cohesive unit.
Enhanced Vehicle Presence: The distinct DRL design increases your Jeep's visibility to other drivers during daylight hours, contributing to overall road safety.
Simple Integration: Designed for direct, plug-and-play installation for Jeeps with factory halogen light packages, minimizing installation complexity.
Weather Resistance: Constructed with an IP67 waterproof rating, ensuring reliable performance in wet or dusty environments.
Long-Term Reliability: Engineered with a robust die-cast aluminum housing and a durable polycarbonate lens, offering extended product lifespan.
Fitment: Jeep JL 2018+, Jeep Gladiator JT 2020+
Size: 9” Diameter
High Beam Wattage: 100W
High Beam Lumens: 6,500LM
Low Beam Wattage: 30W
Low Beam Lumens: 3,000LM
DRL Wattage: 22W
Color Temperature: 6,000 – 6,500K
Housing Material: Die-cast aluminum
Housing Color: Black
Lens Material: Polycarbonate
Waterproof Rate: IP67
Lifespan: > 50,000 hours
Packaging: Sold in Pairs
Included in the box: One Pair of Haizer USA 9" JL Series LED Headlights, DRL wire harness, Fuse tap, 5A replacement fuse, Hex key
Preparation: Park your Jeep on a level surface, engage the parking brake, and turn off the engine. Allow the vehicle to cool down if it has been recently driven.
Access Existing Headlights: Depending on your specific Jeep model, you may need to unclip the grille or gain access behind the fender liner to reach the factory headlight connectors and mounting points.
Disconnect Factory Headlights: Carefully disconnect the electrical connector from your existing halogen headlights. Remove any mounting screws or clips that secure the headlight assembly.
Remove Factory Headlights: Gently pull out the old headlight units from their housing.
Connect Haizer Headlights: Connect the OEM-style connector of the Haizer LED headlight to your Jeep's factory wiring harness. If applicable, connect the additional DRL wire harness to a switched 12V power source using the included fuse tap.
Secure Haizer Headlights: Insert the new Haizer LED headlight into the housing and secure it using the original mounting screws or clips. Ensure it is firmly seated.
Repeat for Other Side: Follow steps 3-6 for the other headlight.
Test Functionality: Turn on your Jeep's ignition. Test the low beams, high beams, daytime running lights, and turn signals to ensure all functions are operating correctly.
Adjust Beam (if needed): If the beam pattern appears too high or low, use the integrated adjustment screw on the back of the headlight housing to fine-tune the beam direction for optimal road illumination without blinding oncoming traffic.
Final Assembly: Reinstall any removed grille components or fender liners to complete the installation.
BENEFITS OF USING HAIZER USA 9" JL SERIES LED HEADLIGHT W/DRL & TURN SIGN. (HZR-JL-9XRS):
Provides significantly brighter and clearer road illumination, enhancing safety during nighttime driving.
Reduces eye strain for the driver due to a more consistent and focused light pattern.
Offers a modern and updated aesthetic for your Jeep, improving its overall appearance.
Consumes less power than traditional halogen bulbs, potentially reducing strain on your vehicle's electrical system.
Minimizes the need for frequent bulb replacements due to a greatly extended lifespan.
Resistant to environmental elements like water, dust, and debris, ensuring reliable performance in various conditions.
Contributes to increased daytime visibility for your vehicle, aiding in accident prevention.
Precision-engineered 9-inch diameter for direct fitment in Jeep JL and JT models.
Integrated high-output LEDs for all lighting functions.
Distinctive bright white LED daytime running light design.
Amber LED turn signal functionality built into the headlight assembly.
High-efficiency heat dissipation through a ribbed die-cast aluminum housing.
Optically clear polycarbonate lens designed for durability and light transmission.
Internal breather valves to regulate pressure and prevent moisture buildup.
Pre-wired with OEM-style connectors for straightforward electrical hookup.
Built-in anti-flicker circuitry to maintain stable light output.
Adjustable beam aiming screw for precise light pattern customization.
Product identification
- Brand: Haizer
- Model / MPN: HZR-JL-9XRS
