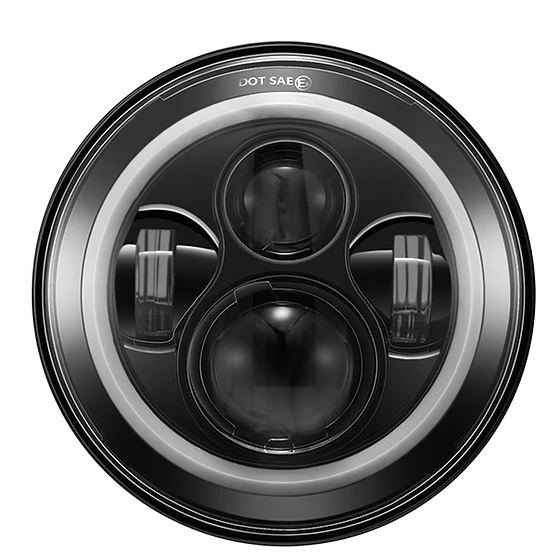

Haizer USA 7" Black Round Projector LED Headlight (HZR-881B)
Enhance your driving experience with the Haizer USA 7" Black Round Projector LED Headlight (HZR-881B). These high-performance headlights use state-of-the-art LED technology to provide exceptional brightness and clarity, making nighttime driving safer and more enjoyable. Designed to fit most vehicles with 7-inch round headlights, including JK and earlier Jeeps, these lights are straightforward to install and built for longevity. Upgrade your ride today with Haizer quality.
KEY FEATURES AND BENEFITS:
Improved Road Illumination: Offers a safer and more comfortable driving experience after dark.
Focused Light Pattern: Projector LED technology reduces glare for oncoming traffic while enhancing your own visibility.
Integrated DRL: White Daytime Running Light improves your vehicle's daytime visibility and presence.
Amber Turn Signals: Halo-integrated signals provide clear and effective communication to other drivers.
Durable Construction: Die-cast aluminum housing and polycarbonate lens ensure long-lasting performance.
Weather-Resistant: IP67 waterproof rating protects against dust and water ingress.
Part Number: HZR-881B
Size: 7" Diameter
High Beam Output: 45W, 3,620 Lumens
Low Beam Output: 30W, 2,480 Lumens
Halo Functionality: White Daytime Running Light (DRL) and Amber Turn Signals
Color Temperature: 6,500K
Housing Material: Die-cast Aluminum
Housing Color: Black
Lens Material: Polycarbonate (PC)
Waterproof Rating: IP67
Lifespan: Greater than 50,000 hours
Connector Type: H4 Plug
Included Adapter: H13 Adapter
Sold: By the Unit (one headlight per purchase)
Included in Product When Purchased: One Haizer USA 7" Black Round Projector LED Headlight (HZR-881B), one H4 plug, one H13 adapter
Safety First: Before starting, ensure your vehicle is turned off and the battery is disconnected for safety.
Remove Old Headlight: Carefully remove the bezel or trim around your existing 7-inch headlight. Disconnect the electrical connector and release any clips or screws holding the old headlight in place.
Connect New Headlight: Plug the H4 connector from the HZR-881B headlight into your vehicle's headlight harness. If your vehicle uses an H13 connector, use the provided H13 adapter to ensure proper fitment.
Connect DRL/Turn Signal Wires: The halo ring will have separate wires for the white DRL and amber turn signal functions. Connect the white DRL wire to a switched 12V power source that activates with your vehicle's ignition (e.g., a fuse tap to a DRL fuse or parking light wire). Connect the amber turn signal wire to your vehicle's existing turn signal wire. Ensure all connections are secure.
Mount New Headlight: Carefully position the new HZR-881B headlight into the bucket. Secure it using the existing headlight retention clips or screws.
Test Functionality: Reconnect your vehicle's battery. Turn on your vehicle and test the high beam, low beam, DRL, and turn signal functions to ensure they are working correctly.
Adjust Aim (if necessary): If the beam pattern appears too high or too low, adjust the headlight aim using the vehicle's headlight adjustment screws according to your vehicle's service manual or local regulations.
Reinstall Trim: Reinstall any bezels or trim removed earlier.
BENEFITS OF USING HAIZER USA 7" BLACK ROUND PROJECTOR LED HEADLIGHT (HZR-881B):
Enhanced Nighttime Visibility: Experience significantly brighter and more focused light output compared to traditional halogen headlights, making it easier to see obstacles and road hazards in the dark.
Improved Driving Safety: The superior illumination and integrated DRL and turn signals contribute to greater road safety by increasing your vehicle's visibility to other drivers.
Modern Aesthetic Upgrade: The sleek black housing and distinct halo ring design provide a contemporary and stylish appearance to your vehicle.
Long-Lasting Performance: With an advertised lifespan exceeding 50,000 hours, these LED headlights are designed to last much longer than standard bulbs, reducing the need for frequent replacements.
All-Weather Reliability: The IP67 waterproof rating and robust construction ensure reliable operation in rain, snow, or dusty conditions.
Simplified Installation: Designed for a direct fit on most 7-inch round headlight applications, and includes both H4 and H13 connectors for broad compatibility.
7-inch diameter circular design
Projector lens technology for precise light distribution
High-intensity 45W high beam output
Efficient 30W low beam illumination
Integrated halo ring with dual-color functionality
Cool 6,500 Kelvin light temperature for clear visibility
Black finish die-cast aluminum housing for heat dissipation
Impact-resistant polycarbonate front lens
Advanced sealing against dust and water immersion
Compliance with DOT, SAE, CE, and ROHS standards
Extended operational life exceeding 50,000 hours
Universal H4 plug connection with H13 adapter
Sold as an individual lighting unit
Product identification
- Brand: Haizer
- Model / MPN: HZR-881B
