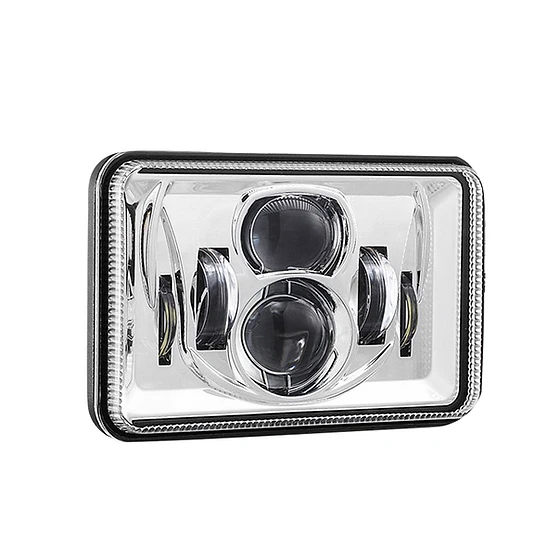

Haizer USA 4”x6” Chrome Projector LED Headlight (HZR-4686)
The Haizer USA 4”x6” Chrome Projector LED Headlight (HZR-4686) is engineered to significantly enhance nighttime visibility and driving safety. Equipped with an advanced projector lens, this headlight delivers focused and powerful illumination, making road conditions and obstacles clearer in low-light environments. With high-intensity LED technology, the HZR-4686 ensures reliable performance while maintaining energy efficiency. Its robust die-cast aluminum body and impact-resistant polycarbonate lens provide durability and weather resistance. Designed with universal fitment and a sleek chrome finish, this headlight not only boosts functionality but also adds a modern touch to your vehicle’s aesthetics.
KEY FEATURES AND BENEFITS:
Advanced Projector Lens: Provides sharp and concentrated light output for enhanced road clarity.
High Output LEDs: 11 x 5W LEDs deliver 3,500 lumens on high beam, and 6 x 5W LEDs produce 2,800 lumens on low beam.
Cool White Illumination: 6,500K color temperature mimics daylight for improved visibility and reduced eye strain.
Sturdy Build Quality: Constructed with a die-cast aluminum housing and impact-resistant polycarbonate lens for long-term durability.
Weather Resistant: Rated IP67 to protect against dust and water ingress.
Longevity: Designed to operate for over 50,000 hours, minimizing the need for replacements.
Easy Installation: Comes with a standard H4 connector for plug-and-play compatibility.
Stylish Finish: Chrome/black housing enhances the modern appeal of your vehicle.
Part Number: HZR-4686
Size: 4×6 Inches
High Beam: 11 x 5W LED, 3,500 Lumens
Low Beam: 6 x 5W LED, 2,800 Lumens
Color Temperature: 6,500K
Housing Material: Die-cast aluminum
Housing Color: Chrome / Black
Lens Material: Polycarbonate
Waterproof Rate: IP67
Lifespan: > 50,000 Hours
Connector: Standard H4
Included in Product: One Haizer HZR-4686 4×6" Projector LED Headlight unit with standard H4 connector
Safety First: Turn off your vehicle’s engine and disconnect the battery before starting the installation.
Access Headlight Assembly: Remove the grille or trim as needed to reach the existing headlight.
Disconnect Old Headlight: Unplug the H4 connector and remove any clips or screws securing the current headlight.
Remove Old Headlight: Gently pull out the headlight from the mounting area.
Install New Headlight: Fit the Haizer HZR-4686 into the mounting location properly.
Secure Headlight: Reinstall the mounting hardware to hold the headlight in place.
Connect Electricals: Plug the vehicle’s H4 wiring harness into the new headlight.
Test Functionality: Reconnect the battery and test both high and low beam functions.
Adjust Beam: Aim the headlight beam appropriately using the vehicle’s adjustment mechanism if needed.
Reassemble Trim: Replace any trim or grille pieces removed during the process.
BENEFITS OF USING HAIZER USA 4”X6” CHROME PROJECTOR LED HEADLIGHT (HZR-4686):
Enhanced visibility for improved nighttime and all-weather driving safety.
Focused projector beam minimizes glare and maximizes road illumination.
Reduces energy consumption compared to halogen lights.
Chrome finish offers a modernized vehicle appearance.
Long-lasting LED technology reduces maintenance frequency.
Universal 4×6” fit ensures wide vehicle compatibility.
Stable and consistent light output enhances driving confidence.
Improved detection of road hazards, pedestrians, and other vehicles.
Projector lens system for focused light distribution.
55W total power with high-output 5W LEDs.
6,500K white light for maximum clarity.
Durable die-cast aluminum housing in chrome/black finish.
Impact-resistant polycarbonate lens for added protection.
IP67 rating ensures performance in wet and dusty environments.
Lifespan exceeding 50,000 hours.
Standard H4 plug for easy installation.
Universal 4×6” fit for broad application.
Sold individually for customized replacement needs.
Product identification
- Brand: Haizer
- Model / MPN: HZR-4686
